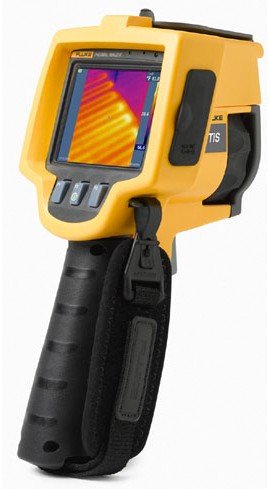

For rapid visual temperature analysis. Features a 120 x 120 infrared detector with 0.1° 9Hz thermal sensitivity.
For rapid visual temperature analysis. Features a 120 x 120 infrared detector with 0.1° 9Hz thermal sensitivity.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
The TiS is the most affordable building inspection thermal imager on today's market that meets the required RESNET infrared inspection standards.
Features
Applications
| Temperature |
|
| Temperature measurement range (not calibrated below -10 °C) |
-20 °C to +100 °C (-4 °F to +212 °F) |
| Temperature measurement accuracy |
± 5 °C or 5 % (at 25 °C nominal, whichever is greater) |
| Imaging performance |
|
| Image capture frequency |
9 Hz refresh rate |
| Detector type |
120 X 120 Focal Plane Array, uncooled microbolometer |
| Thermal sensitivity (NETD) |
≤ 0.1 °C at 30 °C target temp. (100 mK) |
| Infrared spectral band |
7.5 μm to 14 μm (long wave) |
| Standard infrared lens type |
Field of view: 17° x 17° Spatial resolution: (IFOV) 2.50 mRad Minimum focus distance: 15 cm (approx. 6 in) |
| Focus mechanism |
Versatile, one-handed manual focus |
| Image presentation |
|
| Palettes |
Ironbow, Blue-Red, Grayscale |
| Level and span |
Smooth auto-scaling and lock of level and span |
| Minimum span (in auto mode) |
5 °C (9 °F) |
| Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
| Storage medium |
SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR images annotations, or 3000 basic bitmap (.bmp) images, transferrable to PC via included multi-format USB card reader |
| File formats |
Non-radiometric (.bmp) or fully-radiometric (.is2) No analysis software required for non-radiometic bitmap (.bmp) files |
| Export file formats w/SmartView® software |
BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF |
| Memory review |
Sequential image navigation and review |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature |
-20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity |
10 % to 95 % non-condensing |
| Display |
9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover |
| Controls and adjustments |
User selectable temperature scale (°C/°F) Language selection Time/Date set User selectable backlight: "Full Bright" or "Auto" |
| Software |
SmartView® full analysis and reporting software included |
| Batteries |
Internal rechargeable battery pack (included) |
| Battery life |
Three to four hours continuous use (assumes 50 % brightness of LCD) |
| Battery charge time |
2.5 hours to full charge |
| AC battery charging |
AC adapter/charger (110 V ac to 220 V ac, 50/60 Hz) (included), charges battery while imager is operating or turned off, ac mains adapters included |
| AC operation |
AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz), ac mains adapters included |
| Power saving |
Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity |
| Safety standards |
CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01 |
| Electromagnetic compatibility |
Meets all applicable requirements in EN61326-1:2006 |
| C Tick |
IEC/EN 61326-1 |
| US FCC |
CFR 47, Part 15 Class B |
| Vibration |
0.03 g2/Hz (3.8 grms), IEC 68-2-6 |
| Shock |
25 g, IEC 68-2-29 |
| Drop |
2 meter (6.5 feet) |
| Size |
(H x W x L) 26.7 cm x 12.7 cm x 15.2 cm (10.5 in x 5.0 in x 6.0 in) |
| Weight (battery included) |
1.2 kg (2.6 lb) |
| Enclosure rating |
IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty |
Two-years (standard) |
| Recommended calibration cycle |
Two-years (assumes normal operation and normal aging) |
| Supported Languages |
Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, and (Dutch and Hungarian in
manual only) |
Click on a category to view a selection of compatible accessories with the Fluke TiS Thermal Imaging Scanner.
