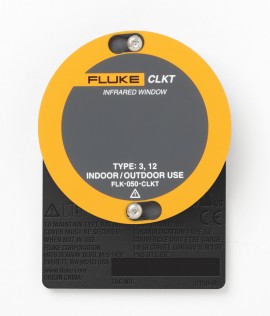

    Fluke FLK-050-CLKT C-Range IR Window 2" (50mm)

    Model: FLK-050-CLKT | UPC: 095969495813

    Fluke FLK-050-CLKT C-Range IR Window 2" (50mm)-

    Downloads: datasheet manual

    Fluke FLK-050-CLKT C-Range IR Window 2" (50mm)

    Model: FLK-050-CLKT

    2" (50mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.

    2" (50mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.

    Sale Price $399.34 CAD
    Regular Price $489.99 CAD
    Availability 1 Week
    Quantity

    Fluke FLK-050-CLKT Offers

    Features

    • The Fluke FLK-050-CLKT IR Window is Engineered and tested to withstand electric-arcs up to 50 kA for 30 cycles.
    • Certified by UL & CSA for Type 3/12 (Outdoor) environments in North America and Canada, the C-Range windows are tested to withstand the long term aging effects of UV exposure.
    • Certified by SIRA Certification IP65 (Outdoor) environments in Europe.
    • The CLIRVU® coating, exclusive to Fluke Infrared Windows, seals the optic prior to assembly to protect against moisture degradation.
    • Quadraband™ optic is compatible with IR-Fusion® and Thermal Fusion technologies allowing the thermographer to see potential problems in visual light and thermographic mode.
    • Got more than one window per panel? Each C-Range window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs.
    • Fluke AutoGround automatically grounds at installation for maximum safety and compliance. No additional steps or testing is required. Only available on Fluke IR Windows.

    Fluke FLK-050-CLKT Specifications

    Optic data
    Crystal insert diameter
    		 50mm (1.97in)
    Viewing aperture diameter
    		 43mm (1.7in)
    Viewing aperture area
    		 1452mm2 (2.25in2)
    Thickness
    		 2mm (0.08in)
    CLIRVU coating
    		 Yes
    Shortwave IR, Midwave IR, Longwave IR, Ultraviolet (UV) capable
    		 Yes
    Visual and fusion capable
    		 Yes
    Maximum temperature
    		 Gaskets: 250°C (482°F)
    Body: 659°C (1219°F)
    Optic: 1400°C (2552°F)
    Gaskets
    		 Low smoke and fume (LSF) compliant silicone
    Pull-out strength
    		 Up to 630kg (1388lb)
    Warranty
    		 Lifetime replacement against manufacturing defects
    Certifications
    Underwriters Laboratories (UL) recognized
    		 Yes
    UL50 environmental
    		 Type 3/12
    UL746C
    		 N/A Polymer free
    UL94
    		 N/A Polymer free
    Canadian Standards Association (CSA) approval
    		 Yes
    Environmental
    		 Type 3/12
    TUV
    Cyclic humidity and vibration withstand
    		 Yes
    IP rating
    		 IP65
    NEMA rating
    		 Type 1 (UL third party certified)
    Vibration rating
    		 IEC60068-2-6
    Humidity rating
    		 IEC60068-2-3
    Click here for complete specifications on the Fluke FLK-050-CLKT

    What's included with the Fluke FLK-050-CLKT

    • Fluke FLK-050-CLKT C-Range IR Window 2" (50mm)
    application note Application Note datasheet for the Fluke FLK-050-CLKT C-Range IR Window 2" (50mm) manual for the Fluke FLK-050-CLKT C-Range IR Window 2" (50mm)
