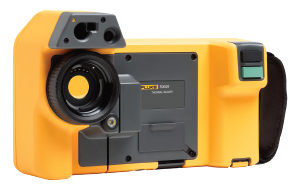

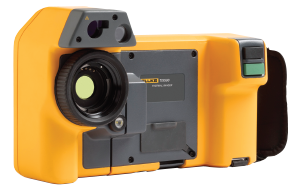

Fluke TIX580 60HZ Infrared Camera with SuperResolution, 640 x 480

Model: TIX580 60HZ | Order No: TIX580-60HZ | UPC: 095969835220

Fluke TIX580 60HZ Infrared Camera with SuperResolution, 640 x 480-


Downloads: datasheet manual

Fluke TIX580 60HZ Infrared Camera with SuperResolution, 640 x 480

Model: TIX580 60HZ | Order No: TIX580-60HZ

Perform quality assurance, preventive maintenance, and outdoor inspections with this infrared camera. This thermal camera features an ergonomic design and 680 x 480 resolution, which captures quality images no matter the distance. Additionally, the rotating screen allows you to minimize glare.

Perform quality assurance, preventive maintenance, and outdoor inspections with this infrared camera. This thermal camera features an ergonomic design and 680 x 480 resolution, which captures quality images no matter the distance. Additionally, the rotating screen allows you to minimize glare.

Your Price $19718.00 CAD
Availability 5 to 6 Weeks
Quantity

Add In-House ISO Certified Calibration to your TIX580

Add In-House ISO Certified Calibration to your TIX580


Fluke TIX580 60HZ Offers

Features

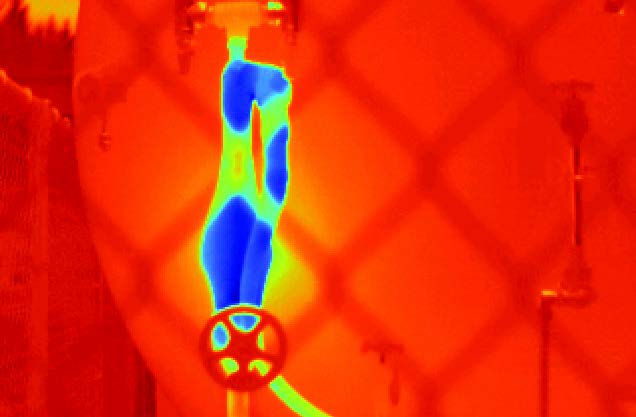

  • In-focus images in a matter of seconds. LaserSharp™ Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target and immediately adjusts the focus

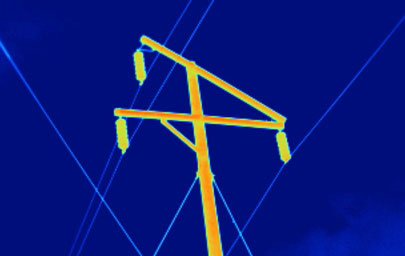

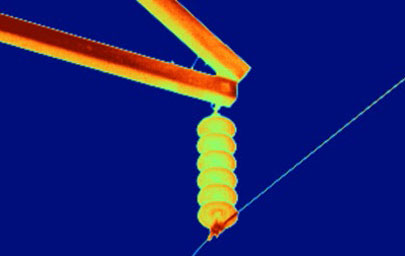

  • Shoot images near…and far. Interchangeable Smart Lenses require no calibration and give you the versatility and image quality needed to conduct inspections in almost any environment
  • Optics to transmit energy and produce high quality infrared images. Fluke uses only 100% diamond-turned germanium lenses with specialty coatings

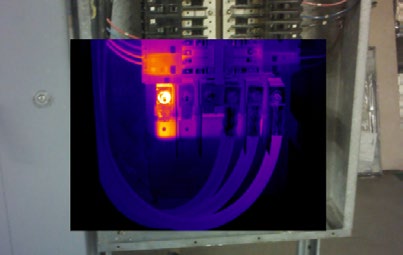

  • See more details when you adjust the level of infrared and visible light with patented IR-Fusion™ technology

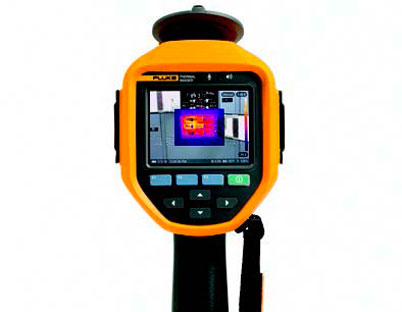

  • Edit and analyze images on camera—edit emissivity, enable color alarms and markers, and adjust IR-Fusion™ visual and infrared image blending
  • Manage data, capture multiple measurements (mechanical, electrical and thermal) and organize them by piece of equipment with Fluke Connect™ software

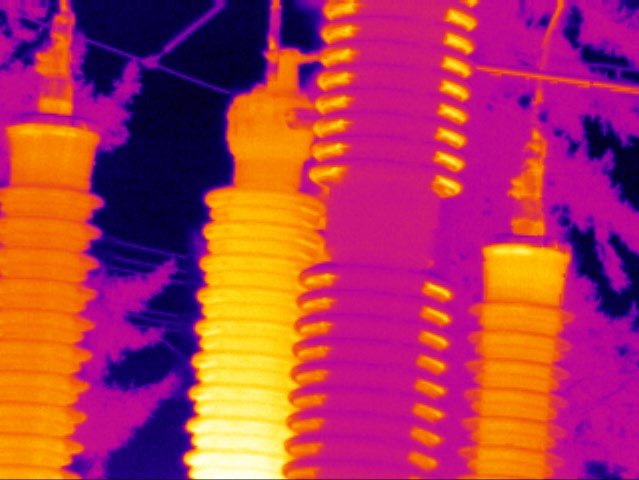

  • Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
  • Automatically processes a stack of images focused near and far
  • Rugged, superbly engineered 640 x 480 thermal imaging camera
  • Provides large 5.7" (144.78 mm) responsive LCD touchscreen with 150% more viewing area than 3.5" (88.9 mm) screen
  • Features 240° rotating screen for unmatched shooting flexibility
  • Provides 4x the pixel data with on-camera SuperResolution to create a 1280 x 960 resolution image
  • Real-time temperature graphs
  • Radiometric video recording
  • Auto capture image sequence
  • MatLab and LabView integration capabilities

Applications

  • Industrial maintenance
  • Oil and gas predictive maintenance
  • Power generation/transmission
  • Research and development - electrical, mechanical, and sciences
  • Quality control
  • Electrical inspections
  • HVAC/R inspections
  • Mechanical
  • Residential home inspections
  • Light commercial maintenance
  • Building diagnostics - building envelope and commercial/industrial facilities
  • Heavy commercial facility maintenance
  • Veterinary
  • Reliability inspections (PdM)
  • Heavy building diagnostics - building envelope and construction defects
  • Electrical, water, gas utilities
  • Chemical processing
  • Machinery, instrumentation and appliances
Download the Advanced Thermal Imaging Buyers Guide

Fluke TIX580 60HZ Specifications

Temperature Measurement
Temperature Measurement Range (Not Calibrated Below -10°C) -4 to 1832°F (-20 to 1000°C)
Accuracy ±2°C or 2% (at 25°C nominal, whichever is greater)
Thermal Sensitivity (NETD) ≤0.05°C at 30°C target temp (50 mK)
On-Screen Emissivity Correction Yes (both value and table)
On-Screen Reflected Background Temperature Compensation Yes
On-Screen Transmission Correction Yes
Live Line Marker Yes

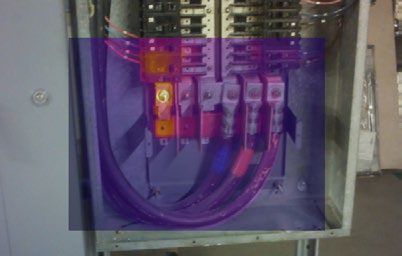

IR-Fusion® Technology
AutoBlend™ Mode Continuously variable
Picture-In-Picture (PIP) 100%, 75%, 50%, 25% IR
Built-In Digital Camera (Visible Light) 5 MP
Standard Lens
IFOV (Spatial Resolution) 0.93 mRad, D:S 1065:1
Field of View 34°H x 24°V
Minimum Focus Distance 6" (15 cm)
IR-Fusion® Technology Picture-in-picture and full screen
Level and Span
Touchscreen Adjustable Level/Span Yes. Span and level can be easily and quickly set by simply touching the screen
Fast Auto Toggle Between Manual and Auto Modes Yes
Fast Auto-Rescale in Manual Mode Yes
Minimum Span (in Manual Mode) 3.6°F (2.0°C)
Minimum Span (in Auto Mode) 5.4°F (3.0°C)
Data Storage and Image Capture
Extensive Memory Options Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage.
Image File Formats Non-radiometric (.bmp, .jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files
Memory Review Thumbnail and fullscreen review
Software Fluke Connect SmartView software - full analysis and reporting software and Fluke Connect system
Export File Formats with SmartView® Software Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice Annotation 60 seconds maximum recording time per image; reviewable playback on camera
IR-PhotoNotes™ Yes (5 images)
Advanced Text Annotation Yes. Including standard shortcuts as well as user programmable options
Video Recording Standard and radiometric
File Formats Video Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)
Remote Display Viewing Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor
Remote Control Operation Yes, through Fluke Connect SmartView desktop software or Fluke Connect mobile app
Auto Capture (Temperature and Interval) Yes
MATLAB® and LabVIEW® Tool Boxes Integrate camera data, infrared video and images into these software platforms to support R&D analysis
Battery
Batteries (Field-Replaceable, Rechargeable) 2 x lithium ion smart battery packs with five-segment LED display to show charge level
Battery Life 2-3 hours per battery (Actual life varies depending on settings and usage)
Battery Charge Time 2.5 hours to full charge
Battery Charging System Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC Operation AC operation with included power supply (100 to 240 V AC, 50/60 Hz)
Power Saving User selectable sleep and power off modes
Color Palettes
Standard Palettes 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ Palettes 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
General Specifications
Frame Rate 60 or 9 Hz versions
Laser Pointer Yes
LED Light (Torch) Yes
Color Alarms (Temperature Alarms) High temperature, low temperature, and isotherms (within range)
Center-Point Temperature Measurement Yes
Spot Temperature Hot and cold spot markers
User-Definable Spot Markers 3 user-definable spot markers
Center Box Expandable-contractible measurement box with MIN-MAX-AVG temp display
Infrared Spectral Band 7.5 to 14 µm (long wave)
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -4 to 122°F (-20 to 50°C)
Relative Humidity 10 to 95% non-condensing
Dimensions 10.8 x 6.3 x 3.8" (27.3 x 15.9 x 9.7 cm)
Weight 3.4 lbs (1.54 kg)
Safety IEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic Compatibility IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCM IEC 61326-1
US FCC CFR 47, Part 15 Subpart B
Vibration 0.03 g2/Hz (3.8 g), 2.5 g IEC 68-2-6
Shock 25 g, IEC 68-2-29
Drop 25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens
Enclosure Rating IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Click here for complete specifications on the Fluke TIX580 60HZ

What's included with the Fluke TIX580 60HZ

  • Infrared Camera
  • Standard Infrared Lens
  • USB Cable
  • HDMI Video Cable
  • Neck and Hand Strap
  • Bluetooth Headset
  • Carrying Case
  • AC Power Supply and Battery Pack Charger (Including Universal AC Adapters)
  • 2 x Rugged Lithium Ion Smart Battery Packs
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

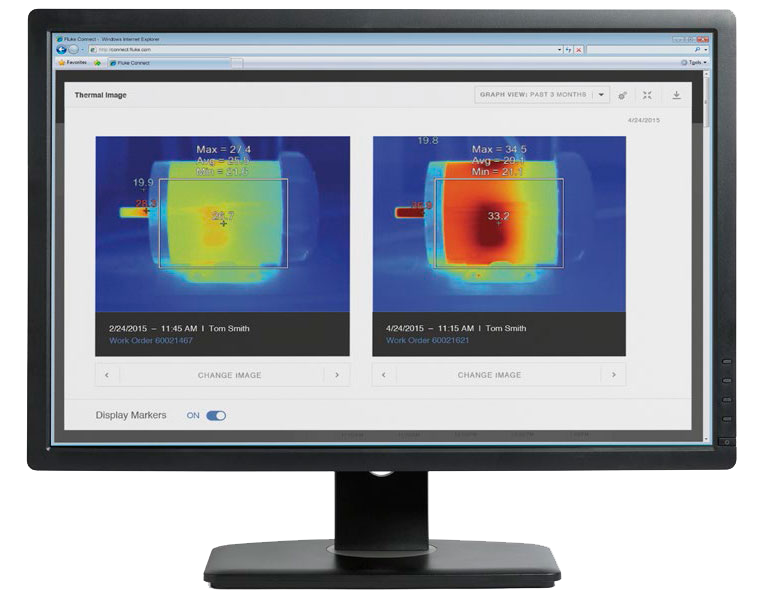

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.

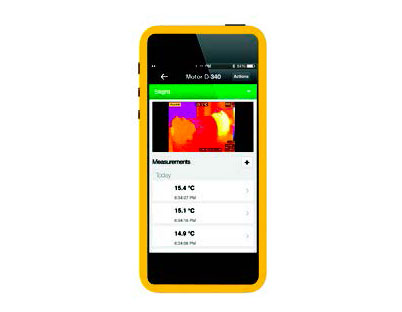

  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

10 things you need to know about Thermal Imagers

Whether you choose a simple point-and-shoot model or a high-end thermal imager with all the bells and whistles, here are some key features and specs you should consider:

1
Resolution
  • Detector resolution indicates the number of detector pixels on the camera. More pixels, means higher resolution
  • Spatial resolution is based on detector pixels and the field of view (FOV) spec, combining them to define the area the imager sees at any given moment. Spatial resolution can be used to help define the smallest object size that can be detected. A lower spatial resolution value means better detail and image quality
2
Focus

With a variety of focus mechanisms to choose from, it is important to take into account your skill level as well as the application in selecting a focus type. Here are the common focus mechanisms:

  • Fixed: Point and shoot simplicity
  • Manual: Precise incremental focus
  • Auto focus: Automatically focuses on a target but may require manual adjustment
  • Laser-assisted auto focus: Uses a built-in laser distance meter to calculate distance to the target
  • Multifocal: Captures and stores multiple images of the target from varying focal distances and uses software to blend them into one image with ultra-sharp depth of field detail. Fluke Corp., for example, calls its implementation of this technology MultiSharp™ Focus

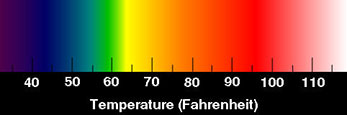

Color scale based on temperature for thermal imagers

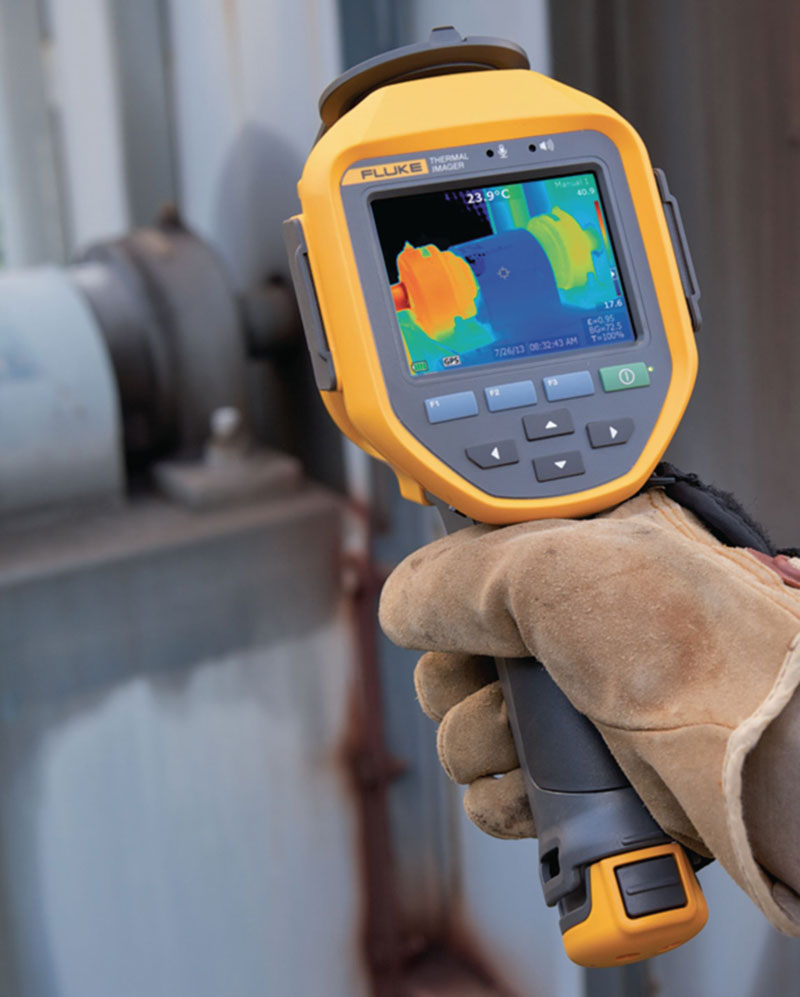

Fluke TI300 thermal imager being held by a gloved hand, aimed at a valve
3
Temperature range

The highest and lowest temperature you encounter in your inspection determines the temperature range you need from your thermal imager. Or, select a camera with a wide temperature range that automatically selects the range based on your scene, or allows you to manually select the temperature range.

4
Lens options

A camera that lets you change lenses increases your versatility, allowing you to inspect many more types of equipment and situations. There are lots of choices for lots of applications—standard, wide angle, telephoto, and macro.

5
Saving images and additional data

Save infrared and digital images and in some cases voice notes to internal memory, a removable SD card, or to a USB flash drive. It’s important to have the flexibility to save images and additional related data to different media for backup or sharing.

6
Color palettes

Slight differences are easier to see with a monochromatic palette, such as grayscale or amber. High contrast palettes can make it easier to quickly find obvious anomalies. You should be able to change the palette in the camera or in the software.

7
Color alarms

Use these to quickly highlight areas outside your normal temperature ranges.

8
Emissivity and reflected temperatures

Low emissivity surfaces, such as shiny metals, can reflect infrared energy from other objects and throw off your image and your measurement accuracy. So, look for the option to adjust parameters when choosing an imager.

9
Spot markers

Mark specific temperatures on your image to compare simultaneous temperatures from multiple points on the same image.

10
Battery type and life

Look for a battery with useful features such a charge level indicator. Nothing is worse than starting an inspection with no idea of the battery status. Also consider long battery life and quick charging ability.

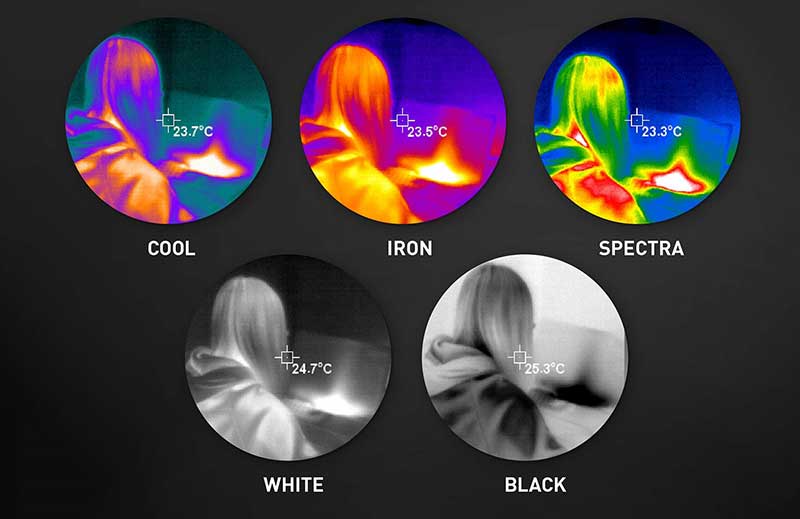

Color palettes options available on a thermal imager, depending on your application

Check out the different color palettes available on your thermal imager!

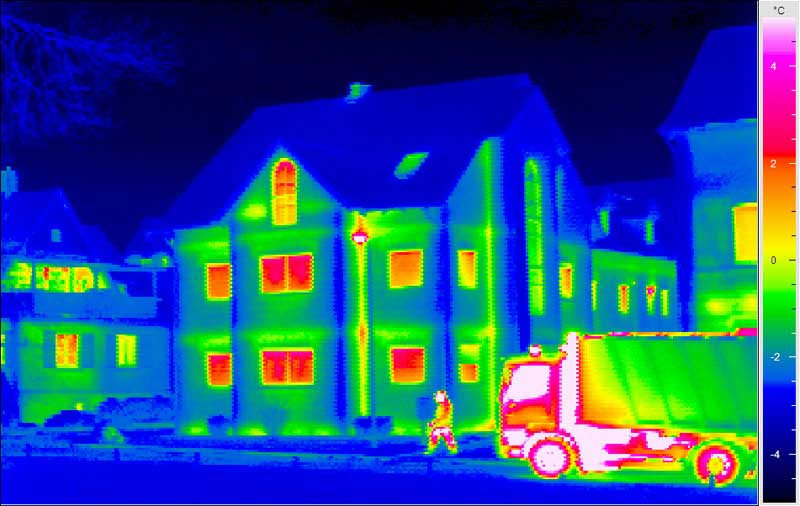

Viewing homes through thermal imager, displaying heat signatures

View your home through the eyes of a thermal imager and and see where the hot and cold spots are.

Fluke TIX580 60HZ Infrared Camera's MultiSharp™ Focus Feature


This video will serve as an overview of this infrared camera's MultiSharp™ focus feature. Users will be able to see more detail in the background. Additionally, objects that are near and far are all in focus with the touch of a button.

Fluke Ti480 Pro and TIX580 Infrared Cameras: Overview


This overview video will go over the main features of these infrared cameras. They both deliver 640 by 480 resolution. Additionally, this video also demonstrates the high-quality images that you will be able to take with these products.

Click on a category to view a selection of compatible accessories with the Fluke TIX580 60HZ Infrared Camera with SuperResolution, 640 x 480.

Fluke FLK-LENS/TELE2 x2 Telephoto Infrared Smart Lens FLK-LENS/TELE2
Features a FOV of 12 x 9 and a minimum focus distance of 45cm (approx. 18"). To be used with the Fluke TI200, TI300 and TI400.




Fluke FLK-LENS/WIDE2 Infrared Wide Angle Lens FLK-LENS/WIDE2
Optional 46° x 34° field swappable, wide angle thermal lens for use with the Ti400, Ti300 and Ti200 infrared cameras.








Fluke BOOK-ITP Introduction to Thermography Principles Book BOOK-ITP
Provides an overview of the latest information on the safe, efficient, and practical use of thermal imagers. Full-color, soft-cover book that depicts and describes many thermal images of electrical, electro-mechanical, HVAC/R, process, and building inspection applications with real-world examples illustrate commercial, industrial, municipal, and residential environments and applications.




Customer Reviews for the Fluke TIX580 60HZ

Ask a question about Fluke TIX580 60HZ Infrared Camera with SuperResolution, 640 x 480

Fluke TIX580 60HZ Offers

Features

  • In-focus images in a matter of seconds. LaserSharp™ Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target and immediately adjusts the focus
  • Shoot images near…and far. Interchangeable Smart Lenses require no calibration and give you the versatility and image quality needed to conduct inspections in almost any environment
  • Optics to transmit energy and produce high quality infrared images. Fluke uses only 100% diamond-turned germanium lenses with specialty coatings
  • See more details when you adjust the level of infrared and visible light with patented IR-Fusion™ technology
  • Edit and analyze images on camera—edit emissivity, enable color alarms and markers, and adjust IR-Fusion™ visual and infrared image blending
  • Manage data, capture multiple measurements (mechanical, electrical and thermal) and organize them by piece of equipment with Fluke Connect™ software
  • Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
  • Automatically processes a stack of images focused near and far
  • Rugged, superbly engineered 640 x 480 thermal imaging camera
  • Provides large 5.7" (144.78 mm) responsive LCD touchscreen with 150% more viewing area than 3.5" (88.9 mm) screen
  • Features 240° rotating screen for unmatched shooting flexibility
  • Provides 4x the pixel data with on-camera SuperResolution to create a 1280 x 960 resolution image
  • Real-time temperature graphs
  • Radiometric video recording
  • Auto capture image sequence
  • MatLab and LabView integration capabilities

Applications

  • Industrial maintenance
  • Oil and gas predictive maintenance
  • Power generation/transmission
  • Research and development - electrical, mechanical, and sciences
  • Quality control
  • Electrical inspections
  • HVAC/R inspections
  • Mechanical
  • Residential home inspections
  • Light commercial maintenance
  • Building diagnostics - building envelope and commercial/industrial facilities
  • Heavy commercial facility maintenance
  • Veterinary
  • Reliability inspections (PdM)
  • Heavy building diagnostics - building envelope and construction defects
  • Electrical, water, gas utilities
  • Chemical processing
  • Machinery, instrumentation and appliances
Download the Advanced Thermal Imaging Buyers Guide

Fluke TIX580 60HZ Specifications

Temperature Measurement
Temperature Measurement Range (Not Calibrated Below -10°C) -4 to 1832°F (-20 to 1000°C)
Accuracy ±2°C or 2% (at 25°C nominal, whichever is greater)
Thermal Sensitivity (NETD) ≤0.05°C at 30°C target temp (50 mK)
On-Screen Emissivity Correction Yes (both value and table)
On-Screen Reflected Background Temperature Compensation Yes
On-Screen Transmission Correction Yes
Live Line Marker Yes
IR-Fusion® Technology
AutoBlend™ Mode Continuously variable
Picture-In-Picture (PIP) 100%, 75%, 50%, 25% IR
Built-In Digital Camera (Visible Light) 5 MP
Standard Lens
IFOV (Spatial Resolution) 0.93 mRad, D:S 1065:1
Field of View 34°H x 24°V
Minimum Focus Distance 6" (15 cm)
IR-Fusion® Technology Picture-in-picture and full screen
Level and Span
Touchscreen Adjustable Level/Span Yes. Span and level can be easily and quickly set by simply touching the screen
Fast Auto Toggle Between Manual and Auto Modes Yes
Fast Auto-Rescale in Manual Mode Yes
Minimum Span (in Manual Mode) 3.6°F (2.0°C)
Minimum Span (in Auto Mode) 5.4°F (3.0°C)
Data Storage and Image Capture
Extensive Memory Options Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage.
Image File Formats Non-radiometric (.bmp, .jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files
Memory Review Thumbnail and fullscreen review
Software Fluke Connect SmartView software - full analysis and reporting software and Fluke Connect system
Export File Formats with SmartView® Software Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice Annotation 60 seconds maximum recording time per image; reviewable playback on camera
IR-PhotoNotes™ Yes (5 images)
Advanced Text Annotation Yes. Including standard shortcuts as well as user programmable options
Video Recording Standard and radiometric
File Formats Video Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)
Remote Display Viewing Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor
Remote Control Operation Yes, through Fluke Connect SmartView desktop software or Fluke Connect mobile app
Auto Capture (Temperature and Interval) Yes
MATLAB® and LabVIEW® Tool Boxes Integrate camera data, infrared video and images into these software platforms to support R&D analysis
Battery
Batteries (Field-Replaceable, Rechargeable) 2 x lithium ion smart battery packs with five-segment LED display to show charge level
Battery Life 2-3 hours per battery (Actual life varies depending on settings and usage)
Battery Charge Time 2.5 hours to full charge
Battery Charging System Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC Operation AC operation with included power supply (100 to 240 V AC, 50/60 Hz)
Power Saving User selectable sleep and power off modes
Color Palettes
Standard Palettes 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ Palettes 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
General Specifications
Frame Rate 60 or 9 Hz versions
Laser Pointer Yes
LED Light (Torch) Yes
Color Alarms (Temperature Alarms) High temperature, low temperature, and isotherms (within range)
Center-Point Temperature Measurement Yes
Spot Temperature Hot and cold spot markers
User-Definable Spot Markers 3 user-definable spot markers
Center Box Expandable-contractible measurement box with MIN-MAX-AVG temp display
Infrared Spectral Band 7.5 to 14 µm (long wave)
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -4 to 122°F (-20 to 50°C)
Relative Humidity 10 to 95% non-condensing
Dimensions 10.8 x 6.3 x 3.8" (27.3 x 15.9 x 9.7 cm)
Weight 3.4 lbs (1.54 kg)
Safety IEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic Compatibility IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCM IEC 61326-1
US FCC CFR 47, Part 15 Subpart B
Vibration 0.03 g2/Hz (3.8 g), 2.5 g IEC 68-2-6
Shock 25 g, IEC 68-2-29
Drop 25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens
Enclosure Rating IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Click here for complete specifications on the Fluke TIX580 60HZ

What's included with the Fluke TIX580 60HZ

  • Infrared Camera
  • Standard Infrared Lens
  • USB Cable
  • HDMI Video Cable
  • Neck and Hand Strap
  • Bluetooth Headset
  • Carrying Case
  • AC Power Supply and Battery Pack Charger (Including Universal AC Adapters)
  • 2 x Rugged Lithium Ion Smart Battery Packs
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

10 things you need to know about Thermal Imagers

Whether you choose a simple point-and-shoot model or a high-end thermal imager with all the bells and whistles, here are some key features and specs you should consider:

1
Resolution
  • Detector resolution indicates the number of detector pixels on the camera. More pixels, means higher resolution
  • Spatial resolution is based on detector pixels and the field of view (FOV) spec, combining them to define the area the imager sees at any given moment. Spatial resolution can be used to help define the smallest object size that can be detected. A lower spatial resolution value means better detail and image quality
2
Focus

With a variety of focus mechanisms to choose from, it is important to take into account your skill level as well as the application in selecting a focus type. Here are the common focus mechanisms:

  • Fixed: Point and shoot simplicity
  • Manual: Precise incremental focus
  • Auto focus: Automatically focuses on a target but may require manual adjustment
  • Laser-assisted auto focus: Uses a built-in laser distance meter to calculate distance to the target
  • Multifocal: Captures and stores multiple images of the target from varying focal distances and uses software to blend them into one image with ultra-sharp depth of field detail. Fluke Corp., for example, calls its implementation of this technology MultiSharp™ Focus
Color scale based on temperature for thermal imagers
Fluke TI300 thermal imager being held by a gloved hand, aimed at a valve
3
Temperature range

The highest and lowest temperature you encounter in your inspection determines the temperature range you need from your thermal imager. Or, select a camera with a wide temperature range that automatically selects the range based on your scene, or allows you to manually select the temperature range.

4
Lens options

A camera that lets you change lenses increases your versatility, allowing you to inspect many more types of equipment and situations. There are lots of choices for lots of applications—standard, wide angle, telephoto, and macro.

5
Saving images and additional data

Save infrared and digital images and in some cases voice notes to internal memory, a removable SD card, or to a USB flash drive. It’s important to have the flexibility to save images and additional related data to different media for backup or sharing.

6
Color palettes

Slight differences are easier to see with a monochromatic palette, such as grayscale or amber. High contrast palettes can make it easier to quickly find obvious anomalies. You should be able to change the palette in the camera or in the software.

7
Color alarms

Use these to quickly highlight areas outside your normal temperature ranges.

8
Emissivity and reflected temperatures

Low emissivity surfaces, such as shiny metals, can reflect infrared energy from other objects and throw off your image and your measurement accuracy. So, look for the option to adjust parameters when choosing an imager.

9
Spot markers

Mark specific temperatures on your image to compare simultaneous temperatures from multiple points on the same image.

10
Battery type and life

Look for a battery with useful features such a charge level indicator. Nothing is worse than starting an inspection with no idea of the battery status. Also consider long battery life and quick charging ability.

Color palettes options available on a thermal imager, depending on your application

Check out the different color palettes available on your thermal imager!

Viewing homes through thermal imager, displaying heat signatures

View your home through the eyes of a thermal imager and and see where the hot and cold spots are.

Fluke TIX580 60HZ Infrared Camera's MultiSharp™ Focus Feature


This video will serve as an overview of this infrared camera's MultiSharp™ focus feature. Users will be able to see more detail in the background. Additionally, objects that are near and far are all in focus with the touch of a button.

Fluke Ti480 Pro and TIX580 Infrared Cameras: Overview


This overview video will go over the main features of these infrared cameras. They both deliver 640 by 480 resolution. Additionally, this video also demonstrates the high-quality images that you will be able to take with these products.

Click on a category to view a selection of compatible accessories with the Fluke TIX580 60HZ Infrared Camera with SuperResolution, 640 x 480.

Fluke FLK-LENS/TELE2 x2 Telephoto Infrared Smart Lens FLK-LENS/TELE2
Features a FOV of 12 x 9 and a minimum focus distance of 45cm (approx. 18"). To be used with the Fluke TI200, TI300 and TI400.




Fluke FLK-LENS/WIDE2 Infrared Wide Angle Lens FLK-LENS/WIDE2
Optional 46° x 34° field swappable, wide angle thermal lens for use with the Ti400, Ti300 and Ti200 infrared cameras.








Fluke BOOK-ITP Introduction to Thermography Principles Book BOOK-ITP
Provides an overview of the latest information on the safe, efficient, and practical use of thermal imagers. Full-color, soft-cover book that depicts and describes many thermal images of electrical, electro-mechanical, HVAC/R, process, and building inspection applications with real-world examples illustrate commercial, industrial, municipal, and residential environments and applications.




Ask a question about Fluke TIX580 60HZ Infrared Camera with SuperResolution, 640 x 480

Customer Reviews for the Fluke TIX580 60HZ

More Fluke Products
