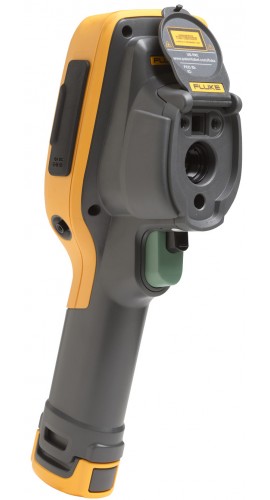

Fluke Ti90 9hz General Use Thermal Imager

Model: Ti90 9HZ | Order No: Ti90-9Hz | UPC: 095969725460

Fluke Ti90 9hz General Use Thermal Imager-


Downloads: datasheet manual

Fluke Ti90 9hz General Use Thermal Imager

Model: Ti90 9HZ | Order No: Ti90-9Hz

This general use Thermal Imager features a resolution of 80 x 60 with thermal sensitivity of <0.15°C and a temperature range from -20 to 250°C.

This general use Thermal Imager features a resolution of 80 x 60 with thermal sensitivity of <0.15°C and a temperature range from -20 to 250°C.

This product has been discontinued. Contact us for more information.


Fluke TI90-9HZ Offers

Features

  • Get up to 84% better spatial resolution for superior image quality
  • View images on 16% larger screen - the largest LCD in its class
  • Communicate back to your supervisors with your smart phone without having to leave the site with the Fluke Connect app and save more time and trouble than before when trying to solve problems and identifying next steps
  • Designed for easy, one-hand operation
  • Built Fluke tough durable enough to handle a 2-meter drop, and IP54-rated

Fluke Ti90-9Hz Specifications

IFOV (Spatial Resolution) 5.6mRad
Detector Resolution 80x60 (4,800 pixels)
Field of View 19.5°H x 26°V
Minimum Focus Distance 46cm (18")
Focus System Focus free (fixed focus)
Wireless Connectivity Fluke Connect app compatible with included wireless SD Card
IR-Fusion Technology Only full visible on camera (IR-Fusion AutoBlend mode available in SmartView® software)
Display 3.5" diagonal (portrait format)
Thermal Sensitivity (NETD) ≤0.15°C at 30°C target temp (150mK)
Temperature Measurement Range -20 to 250°C (-4 to 482°F)
Built-in Digital Camera (Visible Light) 2 megapixel industrial performance
Frame Rate 9Hz
Accuracy ±2°C or 2% (at 25°C nominal, whichever is greater)
On-screen Emissivity Correction Yes (both value and table)
Color Palettes 3 standard: Ironbow, Blue-Red, Grayscale
Click here for complete specifications on the Fluke Ti90 9HZ

What's included with the Fluke Ti90-9HZ

  • Ti90-9HZ Thermal Imager
  • AC power adapter
  • Lithium ion smart battery
  • USB cable
  • SD memory card
  • Fluke Connect wireless SD Card (where available, shipped separately in non-European countries)
  • Soft transport bag
  • Warranty registration card
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

Click on a category to view a selection of compatible accessories with the Fluke Ti90 9hz General Use Thermal Imager.

Fluke CV200 ClirVu 50 mm (2 in) Infrared Window, Hand Turn CV200
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.




Fluke FLK-100-CLKT C-Range IR Window 4" (100mm) FLK-100-CLKT
C-Range IR Window for Outdoor and Indoor Applications, 4" (100m) with KWIK Twist.




Fluke CV300 ClirVu 75 mm (3 in) Infrared Window, Hand Turn CV300
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.




Fluke CV400 ClirVu 95 mm (4 in) Infrared Window, Hand Turn CV400
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.




Fluke CV401 ClirVu 95 mm (4 in) Infrared Window, Security Key CV401
Increase the safety and speed of your electrical thermal imaging inspection with the new Fluke CV Series of ClirVu infrared windows.




Fluke FLK-075-CLKT C-Range IR Window 3" (75mm) FLK-075-CLKT
3" (75mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.




Fluke FLK-050-CLKT C-Range IR Window 2" (50mm) FLK-050-CLKT
2" (50mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.




Fluke BOOK-ITP Introduction to Thermography Principles Book BOOK-ITP
Provides an overview of the latest information on the safe, efficient, and practical use of thermal imagers. Full-color, soft-cover book that depicts and describes many thermal images of electrical, electro-mechanical, HVAC/R, process, and building inspection applications with real-world examples illustrate commercial, industrial, municipal, and residential environments and applications.




Fluke TI-SBP3 Spare Battery Pack TI-SBP3
Extra battery pack for Ti400, Ti300, Ti200, Ti125, Ti110, Ti105, Ti100, Ti95, Ti90, TiR125, TiR110, TiR105, Ti32, Ti29, Ti27, and TiS Infrared Cameras.




Fluke TI-SBC3B Smart Battery Charger TI-SBC3B
Charging base for rechargeable lithium-ion battery packs.








Fluke A3000 FC Kit A3000 FC Kit
Includes the A3000 FC Wireless Current Clamp Meter and Fluke 3000 FC Multimeter with Fluke Connect wireless functionality.




Fluke A3001 FC Wireless iFlex AC Current Module A3001FC
The A3001 FC Wireless iFlex AC Current Module that wirelessly relays measurements to any Fluke Connect system.




Fluke A3002 FC Wireless AC/DC Current Module A3002FC
Wirelessly receives and pass measurements from the i410 or i1010 AC/DC clamps accessories and other Fluke Connect™ enabled master units with this wireless AC/C current module.




Fluke V3000 FC Wireless True-rms AC Voltage Module V3000FC
The V3000 FC Wireless Voltage Module measures true-rms AC voltage and relays measurements to any Fluke Connect master units




Fluke V3001 FC Wireless DC Voltage Module V3001FC
The V3001 FC Wireless Voltage Module measures DC voltage and relays measurements to any Fluke Connect master units




Fluke T3000 FC Wireless K-Type Temperature Module T3000-FC
Share test data through the Fluke Connect app when you pair this k-type temperature module with any other Fluke Connect remote modules. This allows you to access live readings without being exposed to the live panel. Additionally, you can identify temperature differences between the three phases.




Fluke Connect 3000FC Wireless Digital Multimeter 3000FC
Part of the Fluke Connect team of wireless tools, capable of communicating with up to three modules at one time. Features a measurement range from 0.5A to 400A.
