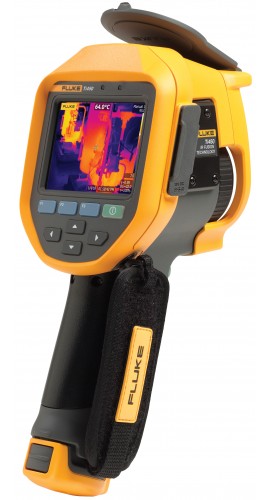

This professional camera features SuperResolution which captures and combines 4x the data to create a 640 x 480 image. It also has MultiSharp Focus which collects a stack of images and processes them to give you clear, accurate focus on your entire image, which is very useful with the 2x and 4x digital zoom.
This professional camera features SuperResolution which captures and combines 4x the data to create a 640 x 480 image. It also has MultiSharp Focus which collects a stack of images and processes them to give you clear, accurate focus on your entire image, which is very useful with the 2x and 4x digital zoom.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
This Fluke Connect capable camera features a resolution of 320 x 240, and a SuperResolution resolution of 640 x 480. The LaserSharp Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target with pinpoint accuracy.
Features
Rotating Machinery
Technicians can use the thermal imaging capabilities of the handheld infrared camera to discover and diagnose various issues, including cooling problems and impeded airflow, bearing issues on motors, and many mechanical problems. Captures clear and accurate images with advanced focus technologies, helping technicians confidently.
Applications
Focus is one of the most important aspects of thermography, and an out of focus image can give you data that can lead to misdiagnosis – costing you thousands. With this infrared camera, worrying about focus is now obsolete. With MultiSharp™ focus, you get images automatically focused throughout the field of view, even if you start from a completely blurry target. That's because the camera takes multiple images and combines them to give you clear, accurate focus on targets near and far. Simply point and shoot.
Manual focus – only front pipe in focus.
MultiSharp™ Focus produces an image focused throughout the field of view.
Manual focus – only 1 motor in focus.
MultiSharp™ Focus – front and back motors in focus.
With the push of a button, a built-in laser distance meter instantly calculates and displays the distance to your designated target, and the focus engine immediately adjusts the focus.
Passive autofocus systems may only capture the near-field subject (fence).
LaserSharp® Auto Focus captures your designated target.
It brings 640 x 480 SuperResolution to the superior infrared camera. Now you can see even more detail with 4x the pixel data. SuperResolution captures multiple images and combines them to create a 640 x 480 image.
Regular resolution.
SuperResolution. Get 4x the pixel data – a 640 x 480 image.
Infrared lenses can make it possible to inspect targets that would be challenging to see with a standard IR lens due to their size and distance. Compatible with 2x and 4x telephoto and wide angle lenses.
Standard lens.
4x Telephoto infrared smart lens.
You can wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order. Having access to maintenance records simultaneously at the inspection site and from the office or an off-site location enables faster decision making and real time collaboration between team members. You can also live stream the camera display to your smartphone or PC and remotely control the camera.
Capture and save measurements from your wireless-enabled test tools to the Fluke Connect® app on your smartphone.
Asset analysis dashboard: Easily compare complex data.
Discover your Thermal Imager
| Key Features | |
| Detector Resolution | 320 x 240 (76,800 pixels) or 640 x 480 with SuperResolution |
| SuperResolution | Yes, in software. Captures and combines 4x the data to create a 640 x 480 image |
| IFOV with Standard Lens (Spatial Resolution) | 1.31mRad, D:S 753:1 |
| Field of View | 24°H x 17°V (Standard Lens) |
| Minimum Focus Distance | Approx. 6" (15 cm) (Standard Lens) |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images |
| Touchscreen Display | 3.5" (landscape) 640 x 480 LCD |
| Thermal Sensitivity (NETD) | ≤0.03°C at 30°C target temp (30mK) |
| Frame Rate | 60 Hz |
| Digital Zoom | 2x and 4x |
| Temperature Measurement | |
| Temperature Measurement Range (not calibrated below -10°C) |
-4 to 2192°F (-20 to 1200°C) |
| Accuracy | ±2°C or 2% (at 25°C nominal, whichever is greater) |
| Color Palettes | |
| Standard | 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ | 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
| General Specifications | |
| Color Alarms (Temperature Alarms) | High temperature, low temperature, and isotherms (within range) |
| Infrared Spectral Band | 7.5 to 14 μm (long wave) |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 122°F (-20 to 50°C) without batteries |
| Spot Temperature | Hot and cold spot markers |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic Compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Dimensions | 10.9 x 4.8 x 6.5" (27.7 x 12.2 x 16.7 cm) |
| Weight | 2.3 lb (1.04 kg) |
Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.
Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
Click on a category to view a selection of compatible accessories with the Fluke Ti450 60Hz Infrared Camera with MultiSharp Focus.
