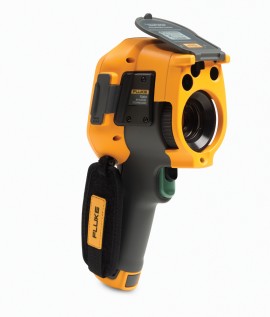

Fluke Ti200 60Hz Thermal Imaging Camera, 30000 Pixels (200 x 150)

Model: TI200-60HZ | UPC: 095969668583

Fluke Ti200 60Hz Thermal Imaging Camera, 30000 Pixels (200 x 150)-


Downloads: datasheet manual

Fluke Ti200 60Hz Thermal Imaging Camera, 30000 Pixels (200 x 150)

Model: TI200-60HZ

A high performance, 200 x 150 infrared camera. Includes wireless and LaserSharp auto focus making it ideal for maintenance professionals.

A high performance, 200 x 150 infrared camera. Includes wireless and LaserSharp auto focus making it ideal for maintenance professionals.

This product has been discontinued. Click here for the replacement model(s).


Fluke TI200-60HZ Offers

The Ti200's 200 x 150 resolution Focal Plan Array (FPA) uncooled microbolometer detector instantly captures and stores thousands of temperature measurements in each thermal image for all inspection purposes and needs.

Features

  • IR-Fusion helps you find problems faster by blending and merging visual and infrared images together; modes include picture-in-picture (PIP), full screen infrared, AutoBlend and on-camera continuous blending
  • Colour alarms include high temperature, low-temperature and isotherm, all user-selectable
  • On-screen emissivity correction
  • Store images to 4GB of internal memory plus 4GB to the included Micro SD card; allows for about 10,000 fully radiometric images to be stored
  • Supports cards up to 32GB and can also store to a USB memory stick
  • Quick transfer of images to a PC, iPhone or iPad with WiFi connectivity
  • Be ready with a reference at all times with the IR-PhotoNotes annotation system which allows for 60 seconds of recording time per image and playback is reviewable on the imager
  • See infrared images live, in real time, with streaming HDMI video
  • 8-point electronic compass and GPS positioning helps to easily point out the problem locations
  • Be ready for any situation with optional interchangeable wide angle and telephoto lenses
  • Convenience of field-changeable, rechargeable smart batteries
  • LaserSharp® Auto Focus uses a built in laser distance meter to pinpoint the target and capture a precisely focused image
  • 5 MP industrial-performance digital camera for high definition image quality
  • IR Fusion® technology with AutoBlend™ mode blends visual and infrared images so you can see the details crucial to identifying potential problems
  • Work more efficiently in the field with advanced features such as IR-PhotoNotes®, voice and text annotation, video recording, and remote control
  • Fluke Connect® enabled so you can capture and share reliable data you can trust and trace
  • Compatible with interchangeable smart lenses – 2x and 4x telephoto and wide angle – expand your view with no calibration required

Applications

  • Facility Maintenance
  • Predictive Maintenance
  • Building Diagnostics
  • Oil and Gas
  • Utilities
  • Test & Measurement
  • Imaging
  • Video & Vision
  • System Monitoring
  • Maintenance & Repair

Discover your Thermal Imager

  • Understand the importance of image quality
  • How to better manage your data
  • How our tools are designed for your work environments
  • The ROI you can expect from thermal imaging
  • Learn the importance of innovative solutions that make it simple and easy to capture
  • Analyze and manage thermal imaging
  • Find out why hundreds of professionals choose Fluke thermal imaging
Download the Advanced Thermal Imaging Buyers Guide

Fluke TI200-60HZ Specifications

Temperature Measurement Range -20 to 650°C (-4 to 1202°F)
Temperature Measurement Accuracy  ±2°C or 2% (at 25°C nominal, whichever is greater)
Detector Type Focal Plane Array, uncooled microbolometer, 200x150 pixels
Thermal Sensitivity (NETD) ≤0.075°C at 30°C target temp (75mK)
Total Pixels 30,000
Infrared Spectral Band 7.5 to 14μm (long wave)
Visual (Visible Light) Camera Industrial performance 5.0 megapixel
Field of View 24° x 17°
Spatial Resolution (IFOV) 2.09 mRad
Minimum Focus Distance 15cm (approx. 6")
Click here for complete specifications on the Fluke TI200-60HZ

What's included with the Fluke TI200-60HZ

  • TI200-60HZ Thermal imager with standard lens
  • AC power supply and battery pack charger
  • Two lithium ion smart battery packs
  • Micro SD memory card with SD adapter
  • USB cable, HDMI video cable
  • SmartView software
  • Hand strap
  • Soft transport bag
  • Hard carrying case
  • Users manual (printed and CD)
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

Click on a category to view a selection of compatible accessories with the Fluke Ti200 60Hz Thermal Imaging Camera, 30000 Pixels (200 x 150).

Fluke A3002 FC Wireless AC/DC Current Module A3002FC
Wirelessly receives and pass measurements from the i410 or i1010 AC/DC clamps accessories and other Fluke Connect™ enabled master units with this wireless AC/C current module.




Fluke A3001 FC Wireless iFlex AC Current Module A3001FC
The A3001 FC Wireless iFlex AC Current Module that wirelessly relays measurements to any Fluke Connect system.




Fluke V3000 FC Wireless True-rms AC Voltage Module V3000FC
The V3000 FC Wireless Voltage Module measures true-rms AC voltage and relays measurements to any Fluke Connect master units




Fluke V3001 FC Wireless DC Voltage Module V3001FC
The V3001 FC Wireless Voltage Module measures DC voltage and relays measurements to any Fluke Connect master units




Fluke T3000 FC Wireless K-Type Temperature Module T3000-FC
Share test data through the Fluke Connect app when you pair this k-type temperature module with any other Fluke Connect remote modules. This allows you to access live readings without being exposed to the live panel. Additionally, you can identify temperature differences between the three phases.




Fluke pc3000 FC Adapter and Software PC3000-FC
This USB adapter and software allows your PC or laptop to communicate with up to 10 Fluke Connect wireless devices.




Fluke A3000 FC Wireless AC Current Clamp Module A3000FC
The A3000 FC Wireless Current Clamp Meter is a fully functional True-RMS current clamp meter that wirelessly relays AC measurements to any Fluke Connect system.




Fluke Connect 3000FC Wireless Digital Multimeter 3000FC
Part of the Fluke Connect team of wireless tools, capable of communicating with up to three modules at one time. Features a measurement range from 0.5A to 400A.




Fluke LENS/4XTELE2 Optional Thermal Imaging Lens, 4x Telephoto LENS/4XTELE2
Optional 4X Telephoto Lens for the TI200/300/400 Thermal Imaging Cameras.




Fluke LENS/25MAC2 Optional Thermal Imaging Lens, 25 µm Macro LENS/25MAC2
Optional macro lens for the TI200/300/400 thermal imaging cameras.




Fluke FLK-LENS/WIDE2 Infrared Wide Angle Lens FLK-LENS/WIDE2
Optional 46° x 34° field swappable, wide angle thermal lens for use with the Ti400, Ti300 and Ti200 infrared cameras.




Fluke FLK-LENS/TELE2 x2 Telephoto Infrared Smart Lens FLK-LENS/TELE2
Features a FOV of 12 x 9 and a minimum focus distance of 45cm (approx. 18"). To be used with the Fluke TI200, TI300 and TI400.




Fluke FLK-100-CLKT C-Range IR Window 4" (100mm) FLK-100-CLKT
C-Range IR Window for Outdoor and Indoor Applications, 4" (100m) with KWIK Twist.




Fluke FLK-075-CLKT C-Range IR Window 3" (75mm) FLK-075-CLKT
3" (75mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.




Fluke FLK-050-CLKT C-Range IR Window 2" (50mm) FLK-050-CLKT
2" (50mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.




Fluke TI-TRIPOD3 Mounting Accessory TI-TRIPOD3
This tripod mounting base helps stabilize your thermal imager when mounting to a standard tripod or monopod. Use with the TI and TIS Fluke Thermal Imagers.




Fluke Visor3 Sun Visor FLK-TI-VISOR3
Sun Visor for the Fluke Ti200, Ti300 and Ti400 Thermal Imaging Cameras.




Fluke CV300 ClirVu 75 mm (3 in) Infrared Window, Hand Turn CV300
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.




Fluke CV301 ClirVu 75 mm (3 in) Infrared Window, Security Key CV301
Increase the safety and speed of your electrical thermal imaging inspection with the new Fluke CV Series of ClirVu infrared windows.




Fluke CV400 ClirVu 95 mm (4 in) Infrared Window, Hand Turn CV400
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.




Fluke CV401 ClirVu 95 mm (4 in) Infrared Window, Security Key CV401
Increase the safety and speed of your electrical thermal imaging inspection with the new Fluke CV Series of ClirVu infrared windows.




Fluke CV200 ClirVu 50 mm (2 in) Infrared Window, Hand Turn CV200
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.




Fluke TI-SBC3B Smart Battery Charger TI-SBC3B
Charging base for rechargeable lithium-ion battery packs.




Fluke TI-SBP3 Spare Battery Pack TI-SBP3
Extra battery pack for Ti400, Ti300, Ti200, Ti125, Ti110, Ti105, Ti100, Ti95, Ti90, TiR125, TiR110, TiR105, Ti32, Ti29, Ti27, and TiS Infrared Cameras.
