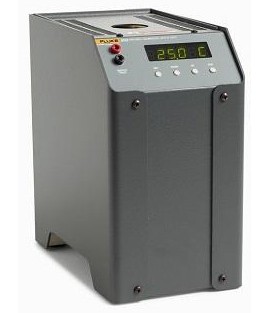

Fluke 9103-DW-156 Field Dry-Well Temperature Calibrator (No Insert), -25 to 140°C

Model: 9103-DW-156 | UPC: 095969413459

Fluke 9103-DW-156 Field Dry-Well Temperature Calibrator (No Insert), -25 to 140°C-


Downloads: datasheet

Fluke 9103-DW-156 Field Dry-Well Temperature Calibrator (No Insert), -25 to 140°C

Model: 9103-DW-156

With no need to work in a walk-in freezer to achieve the full range, this field dry-well temperature calibrator covers below-ambient temperatures down to -25°C.

With no need to work in a walk-in freezer to achieve the full range, this field dry-well temperature calibrator covers below-ambient temperatures down to -25°C.

This product has been discontinued. Click here for the replacement model(s).


Fluke 9103-DW-156 Offers

Features

  • Lightweight and very portable
  • Accuracy to ±0.25°C
  • RS-232 interface
  • Easy to recalibrate

Fluke 9103-DW-156 Specifications

Range -13 to 284°F (-25 to 140°C) at 23°C ambient
Accuracy ±0.25°C (holes greater than 0.25in (6.35mm): ±1°C)
Stability ±0.02°C at -25°C
±0.04°C at 140°C
Well-to-Well Uniformity ±0.1°C between similarly sized wells
Stabilization Time 7 minutes
Immersion Depth 4.88in (124mm)
Outside Insert Dimensions 1.25 x 4.88in (31.8 x 124mm)
Power 115VAC (±10%), 1.3A or 230VAC (±10%), 0.7A, switchable, 50/60Hz, 150W
Size (WxHxD) 5.63 x 10.25 x 9.63in (143 x 261 x 245mm)
Weight 12lbs (5.7kg)
Click here for complete specifications on the Fluke 9103-DW-156

What's included with the Fluke 9103-DW-156

  • Power Cord
  • 9930 Interface-it Software
  • Serial Cable
  • User Manual
