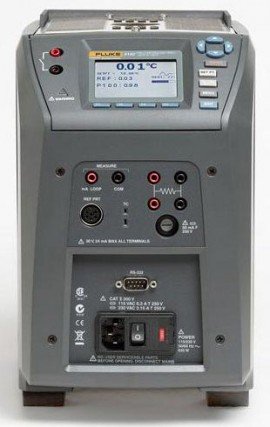

Fluke 9142-DW-156 Field Metrology Well (No Insert), -25 to 150°C

Model: 9142-DW-156 | UPC: 95969419604

Fluke 9142-DW-156 Field Metrology Well (No Insert), -25 to 150°C-

Fluke 9142-DW-156 Field Metrology Well (No Insert), -25 to 150°C

Model: 9142-DW-156

Use this field metrology well to perform transmitter loop calibrations, comparison calibrations or simple thermocouple sensor checks. With plenty of remarkly easy functions, this field metrology well comes without an insert.

Use this field metrology well to perform transmitter loop calibrations, comparison calibrations or simple thermocouple sensor checks. With plenty of remarkly easy functions, this field metrology well comes without an insert.

Your Price $9521.00 CAD
Availability 2 to 3 Weeks
Quantity

Fluke 9142-DW-156 Offers

It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

Features

  • Lightweight, portable, and fast
  • Cool to -25°C in 15 minutes and heat to 660°C in 15 minutes
  • Built-in 2-channel readout for PRT, RTD, thermocouple, 4-20mA current
  • True reference thermometry with accuracy to ±0.01°C
  • On-board automation and documentation
  • Metrology performance in accuracy, stability, uniformity, and loading

Fluke 9142-DW-156 Specifications

Temperature Range at 23°C -13 to 302°F (-25 to 150°C)
Display Accuracy ±0.2°C (full range)
Operating Conditions 0 to 50°C, 0 to 90% RH (non-condensing)
Immersion (Well) Depth 5.9in (150mm)
Resolution 0.01°
Display LCD, °C or °F (user-selectable)
Size (H x W x D) 11.4 x 7.3 x 11.6in (290 x 185 x 295mm)
Weight 18lbs (8.16kg)
Power Requirements 100 to 115V (±10%), 50/60Hz, 635W; 230V (±10%), 50/60Hz, 575W
Computer Interface RS-232 (9930 Interface-it control software included)

What's included with the Fluke 9142-DW-156

  • Power Cord
  • RS-232 Cable
  • Well Insulator
  • Report of Calibration and Calibration Label
  • Insert Removal Tool
  • Interface-it Software/Manual (9930)
  • Technical Manual CD
  • User Manual

Click on a category to view a selection of compatible accessories with the Fluke 9142-DW-156 Field Metrology Well (No Insert), -25 to 150°C.

Fluke Z Insert (Model 9142-INSZ) for 9142 Metrology Wells, Blank 9142-INSZ
Use this Z insert with your existing 9142 metrology well.




Fluke A Insert (Model 9142-INSA) for 9142 Metrology Wells, Imperial Misc Holes 9142-INSA
Use this A insert with your existing 9142 metrology well. The insert comes equipped with imperial misc holes for compatibility.




Fluke B Insert (Model 9142-INSB) for 9142 Metrology Wells, Imperial Comparison Holes 9142-INSB
Use this B insert with your existing 9142 metrology well. The insert comes equipped with imperial comparison holes for compatibility.




Fluke C Insert (Model 9142-INSC) for 9142 Metrology Wells, 0.25in Holes 9142-INSC
Use this C insert with your existing 9142 metrology well. The insert comes equipped with 0.25in holes for compatibility.




Fluke D Insert (Model 9142-INSD) for 9142 Metrology Wells, Metric Comparison Holes 9142-INSD
Use this D insert with your existing 9142 metrology well. The insert comes equipped with metric comparison holes for compatibility.




Fluke E Insert (Model 9142-INSE) for 9142 Metrology Wells, Metric Misc Holes with 0.25in Hole 9142-INSE
Use this E insert with your existing 9142 metrology well. The insert comes equipped with metric misc holes for compatibility.




Fluke F Insert (Model 9142-INSF) for 9142 Metrology Wells, Metric Comparison Misc Holes with 0.25in Hole 9142-INSF
Use this F insert with your existing 9142 metrology well. The insert comes equipped with metric comparison misc holes for compatibility.




Fluke G Insert (Model 9142-INSG) for 9142 Metrology Wells, EA Test 9142-INSG
Use this G insert with your existing 9142 metrology well.




Fluke T Insert (Model 9142-INST) for 9142 Metrology Wells, Test 9142-INST
Use this T insert with your existing 9142 metrology well.
