For Building Diagnostics. Features a 160 x 120 9Hz infrared detector with a 0.08°C thermal sensitivity and a -20 to 150°C (-4 to 302°F) temperature range.
For Building Diagnostics. Features a 160 x 120 9Hz infrared detector with a 0.08°C thermal sensitivity and a -20 to 150°C (-4 to 302°F) temperature range.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Description
Specifications
Included
Fluke Connect
Resources
Accessories
Ask an Expert

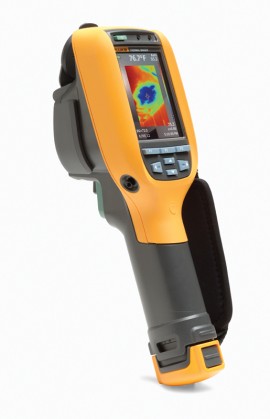

Customer ReviewsThe FLUKE TiR Series Building Diagnostic thermal imagers are built to be used in tough environments, provide clear, crisp images, and be the ultimate easy to use building maintenance tool.
Features
Applications
Locating air leakage caused by improperly installed or worn seals on doors and windows; inspect and confirm missing or damaged insulation; detect moisture intrusion and possible mold; locate leaks in roofing; locate and damaged or loose HVAC/R system components.
Discover your Thermal Imager
| IR resolution (FPA size) | 160 x 120 FPA Uncooled Microbolometer |
| Spectral band | 7.5 µm to 14 µm (long wave) |
| Capture or refresh rate | 9 Hz |
| NETD (Thermal sensitivity) | < 0.08°C at 30°C target temp (80 mK)</td> |
| FOV (Field of view) | 22.5°H x 31°V |
| IFOV (Spatial resolution) | 3.39 mRad |
| Temperature measurement range (not calibrated below -10°C) | -20°C to + 150°C (-4°F to 302°F) |
| Temperature measurement accuracy | ± 2°C or 2 % (at 25°C nominal, whichever is greater) |
| Focus mechanism | Focus-free 1.2 m (4 ft) and beyond |
| IR Fusion ® technology | PIP (1.2 m (4 ft) to 4.6 m (15 ft)), FULL IR, FULL VISIBLE |
| Color alarms | - |
| Standard palettes | Blue-Red, Ironbow, Grayscale, Amber |
| Ultra Contrast™ palettes | - |
| Hot/cold markers | - |
| User definable spot markers | In SmartView® only |
| Centerpoint | Yes |
| Centerbox (MIN/AVG/MAX) | - |
| Level and span control | Manual and auto |
| Minimum span in auto mode | 2.5°C |
| Minimum span in manual mode | 2.0°C |
| Minimum IR focus distance | 122 cm (48 in) |
| Weight | 0.726 kg (1.6 lb) |
| Size | 28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in) |
| LCD display | 3.5 inch diagonal (portrait format) |
| Visible camera | 2 megapixel industrial-grade |
| Minimum parallax | ~122 cm (48 in) |
| IR-PhotoNotes™ annotation system | - |
| Laser pointer | Yes |
| Torch | Yes |
| Electronic (cardinal) compass | - |
| Emissivity correction | Yes |
| Transmission correction | - |
| Background (reflected) compensation | Yes |
| Voice annotation (audio) | - |
| Multi-mode video output | - |
| Multi-mode video recording (standard AVI with MPEG encoding) | - |
| Multi-mode video recording (radiometric .IS3) | - |
| Memory review | Thumbnail review |
| Battery (field-replaceable, rechargeable) | One |
| Battery life | 4+ hours (each)* |
| External battery charging base | Optional (accessory) |
| Charging power supply | Yes |
| Drop test | 2 meter (6.5 feet) |
| Ingress protection (IP) rating (IEC 60529) | IP 54 |
| Est. calibration cycle | Two-years |
| Multifunction card reader | - |
| Memory storage | 2 GB SD memory card |
| Direct download capability | mini USB direct download |
| Operating temperature range | -10°C to +50°C (14°F to 122°F) |
| Storage temperature range | -20°C to +50°C (-4°F to 122°F) |
| Operating humidity | Operating and storage 10 % to 95 %, non-condensing |
| Vibration and shock | 2G, IEC 68-2-26 and 25G, IEC 68-2-29 |
| Safety standards | CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01 |
| C Tick | IEC/EN 61326-1 |
| EMI, RFI, EMC | EN61326-1; FCC Part 5 |
| User manuals | Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Dutch, and Hungarian |
| Standard warranty period | Two-years |
| Extended warranty and service plans | Yes |
