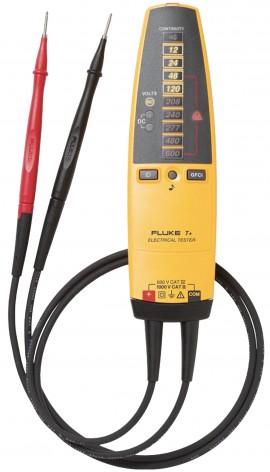

Fluke T+CAN Electrical Tester

Model: T+CAN | UPC: 095969327916

Be the first to review this product

Downloads: datasheet manual

Fluke T+CAN Electrical Tester

Model: T+CAN

Be the first to review this product

Bright LED flashlight, extra heavy-duty, GFCI Trip.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke T+Pro Electrical Tester

Model: TPLUSPRO | Order No: T+PRO

Helps electricians and technicians work safer by indicating the presence of voltage even when the batteries are dead due to its solid-state design. Additional functionality such as a GFCI trip, easy to read LCD screen, resistance measurement up to 9.99 kOhms and a flashlight.

Learn More

Recommended Accessories

Fluke C1600 Meter and Accessories Gear Box

C1600

Fluke TP1 Slim Reach Test Probe Set

TP1

Fluke C520A Leather Tester Carrying Case

C520A

Fluke AC280 SureGrip Hook Clips

AC280

Fluke AC220 SureGrip Alligator Clips

AC220

Fluke T+CAN Offers

Features

Extra heavy-duty, replaceable test leads for more flexibility and durability

CAT IV 600 V, CAT III 1000 V rated for added user protection

Continuity beeper

Bright LED flashlight for work in poorly lit areas

GFCI Trip

On/Off switchable beeper, selectable according to your environment

Compliant with latest NFPA 70E recommendations*

Replaceable test probes for added flexibility and convenience

Convenient probe storage on the back

Probe holder for easier testing

Hazardous voltage warning light for added user protection

Test lead strap included for better test lead management

AC/DC Voltage: 12 V Ð 600 V on LED bar, 10.2 V Ð 600 V on LCD (LCD on T+PRO only)

Auto-off saves battery power

Functional Specifications

AC Bandwidth: 45Hz to 66Hz
Maximum working voltage: 1000V AC/dc
Maximum measurable voltage: 600V AC/dc
AC Voltage Accuracy: ± (3% rdg + 2 digits)
DC Voltage Accuracy: ± (2% rdg + 2 digits)
Resistance Accuracy: ± (5% rdg + 3 digits)
Standard input test current: < 5 mA

General Specifications

Safety: ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV; Compliance to NFPA 70E*
Dimensions (HxWxL): 1.3inx2.15inx7.6in (3.3cmx5.46cmx19.3cm)
Weight: 9.9oz (0.28kg)Battery type/life: AAA (2); 40 hours
Shock, vibration: Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument

Fluke T+CAN Specifications

Specifications

Temperature

Operating	-10 °C to 55 °C (14 °F to 131 °F)
Storage	-30 °C to 60 °C (-22 °F to 140 °F)

Relative humidity

	0 °C to 30 °C (32 °F to 86 °F): 90 %
	30 °C to 40 °C (86 °F to 104 °F): 75 %
	40 °C to 50 °C (104 °F to 122 °F): 45 %

Altitude

Operating	2,000 m (approx. 6,561.6 ft)
Storage	10,000 m (approx. 32,808.4 ft)

Battery type/life

AAA (2); 40 hours

Shock, vibration

Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument

Safety

	ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV
	Compliance to NFPA 70E*

AC Bandwidth

45 Hz to 66 Hz

Maximum working voltage

1000 V ac/dc

Maximum measurable voltage

600 V ac/dc

Duty cycle

	Indefinitely for voltages up to 240 V
	For voltages between 240 V and 600 V the duty cycle is 30 s on / 300 s off
	For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s

Voltage hazard LED

LEDs turn on at voltages > 30 V ac/dc ± 35 %

LED voltage indication levels

12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V

LEDs

LEDs turn on between 90 % and 100 % of the indicated voltage on the LED, except for the 12 V LED which turns on between 50 % and 100 %

LCD Resolution

	0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V
	0.01 kΩ for resistance measurement (For T+PRO Only)

GFCI Test current

100 V - 150 V @ 6 mA - 9 mA ac, 150 V - 240 V < 12 mA

Standard input test current

< 5 mA

Size (HxWxL)

1.3 in x 2.15 in x 7.6 in (3.3 cm x 5.46 cm x 19.3 cm )

Weight

9.9 oz (0.28 kg)

Click here for complete specifications on the Fluke T+CAN

What's included with the Fluke T+CAN

User manual
Test lead wrap
Fluke TP2 test probes
2 AAA Batteries
