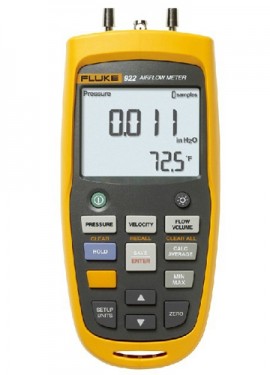

Fluke 922 Airflow Meter

Model: 922 | UPC: 095969355315

Downloads: datasheet manual

Fluke 922 Airflow Meter

Model: 922

Air Pressure (differential & static), Velocity, Flow and Temperature. 99 point data storage. Min/Max/AVG/Hold.

Your Price	$1486.79 CAD
Availability	3 to 4 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 922 Airflow Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 CAD

Traceable Calibration Certificate for your 922 Airflow Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 CAD

Recommended Accessories

Fluke TPAK ToolPak Magnetic Meter Hanger

Fluke 922 Offers

Easy to use without sacrificing performance
Bright, backlit display for clear viewing in all environments
User-defined duct shape and Dimensions for maximum airflow accuracy
Resolution down to 0.001 in H2O
99 point data storage capacity
Min/Max/Average/Hold functions for easy data analysis
Auto power off saves battery life

Specifications:

Air Pressure

Range: ± 4000 Pascals - Resolution: 1 Pascal - Accuracy: ± 1% + 1 Pascal
Range: ± 16 in H2O - Resolution: 0.001 in H2O - Accuracy: ± 1 % + 0.01 in H2O
Range: ± 400 mm H2O - Resolution: 0.1 mm H2O - Accuracy: ± 1 % + 0.1 mm H2O
Range: ± 40 mbar - Resolution: 0.01 mbar - Accuracy: ± 1 % + 0.01 mbar
Range: ± 0.6 PSI - Resolution: 0.0001 PSI - Accuracy: ± 1 % + 0.0001 PSI

Air Velocity

Range: 250 to 16,000 fpm - Resolution: 1 fpm - Accuracy: ± 2.5 % of reading at 2000 fpm (10.00 m/s)
Range: 1 to 80 m/s - Resolution: 0.001 m/s - Accuracy: ± 2.5 % of reading at 2000 fpm (10.00 m/s)

Air Flow (Volume)

Range: 0 to 99,999 cfm - Resolution: 1 cfm - Accuracy: Accuracy is a function of velocity and duct Dimensions
Range: 0 to 99,999 - Resolution: 1 m3/hr - Accuracy: Accuracy is a function of velocity and duct Dimensions
Range: 0 to 99,999 l/s - Resolution: 1 l/s - Accuracy: Accuracy is a function of velocity and duct Dimensions

Temperature

Range: 0 °C to 50 °C - Resolution: ± 1 % + 2 °C - Accuracy: 0.1 °C
Range: 32 °F to 122 °F - Resolution: ± 1 % + 4 °F - Accuracy: 0.1 °F

General Specifications

Relative Humidity: 0% to 90%, non-condensing
IP Rating: IP40
EMI, RFI, EMC: Meets requirements for EN61326-1
Vibration: MIL-PREF-28800F, Class 3
Max Pressure at Each Port: 10 PSI
Data storage capacity: 99 readings
Battery Life: 280 hours without backlight, 60 hours with backlight

Fluke 922 Specifications

Technical Specifications

Air Pressure

Range/Resolution/Accuracy	± 4000 Pascals / 1 Pascal / ± 1 % + 1 Pascal
	± 16 in H2O / 0.001 in H2O / ± 1 % + 0.01 in H2O
	± 400 mm H2O / 0.1 mm H2O / ± 1 % + 0.1 mm H2O
	± 40 mbar / 0.01 mbar / ± 1 % + 0.01 mbar
	± 0.6 PSI / 0.0001 PSI / ± 1 % + 0.0001 PSI

Air Velocity

Range/Resolution/Accuracy	250 to 16,000 fpm / 1 fpm / ± 2.5 % of reading at 2000 fpm (10.00 m/s)
	1 to 80 m/s / 0.001 m/s / ± 2.5 % of reading at 2000 fpm (10.00 m/s)

Air Flow (Volume)

Range/Resolution/Accuracy	0 to 99,999 cfm / 1 cfm / Accuracy is a function of velocity and duct size
	0 to 99,999 / 1 m3/hr / Accuracy is a function of velocity and duct size
	0 to 99,999 l/s / 1 l/s / Accuracy is a function of velocity and duct size

Temperature

Range/Resolution/Accuracy	0 °C to 50 °C / ± 1 % + 2 °C / 0.1 °C
	32 °F to 122 °F / ± 1 % + 4 °F / 0.1 °F

General Specifications

Operating Temperature

0 °C to +50 °C (+32 °F to +122 °F)

Storage Temperature

-40 °C to +60 °C (-40 °F to +140 °F)

Relative Humidity

0% to 90%, non-condensing

IP Rating

IP40

Operating Altitude

2000 m

Storage Altitude

12000 m

EMI, RFI, EMC

Meets requirements for EN61326-1

Vibration

MIL-PREF-28800F, Class 3

Max Pressure at Each Port

10 PSI

Data storage capacity

99 readings

Warranty

2 years

Power

Four AA batteries

Battery Life

280 hours without backlight, 60 hours with backlight

Click here for complete specifications on the Fluke 922

What's included with the Fluke 922

Fluke 922 Airflow Meter
Two Rubber Hoses
Four AA Batteries 1.5 V Alkaline
Users Manual
Soft Carrying Case

datasheet for the Fluke 922 Airflow Meter manual for the Fluke 922 Airflow Meter
