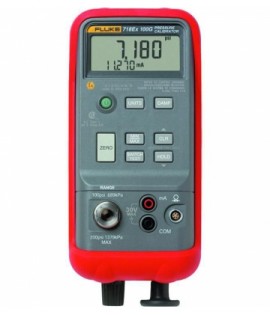

Fluke 718Ex-30G Intrinsically Safe Pressure Calibrator

Model: 718EX-30

Intrinsically Safe Pressure Calibrator -12 to 30 PSI (0.5%FS Accuracy; 0.001 PSI Resolution).

Your Price	$7649.59 CAD
Availability	1 to 2 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 718EX-30 G Intrinsically Safe Pressure Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG4) for only $415.00 CAD

Traceable Calibration Certificate for your 718EX-30 G Intrinsically Safe Pressure Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG4) for only $415.00 CAD

Recommended Accessories

Fluke TL71 Premium Right Angle Test Lead Set

TL71

Fluke TL223 SureGrip Electrical Test Lead Set

TL223

Fluke TL220 Suregrip Industrial Test Lead Set

TL220

Fluke C789 Meter & Accessory Case

C789

Fluke 718EX-30 Offers

The Fluke 718Ex Intrinsically Safe Pressure Calibrator is a powerful intrinsically safe, self contained pressure calibrator for usage in explosion endangered areas.

Features

True RMS current and voltage measurements gives you accurate readings of non-sinusoidal waveforms
Multimeter functions include AC/DC voltage, resistance, capacitance, frequency, diode and continuity
Peak hold captures inrush currents and transients
Data hold and Max/Min functions
4000-count backlit display
Autoranging with manual range button
Auto power off
1.7" (43mm) jaw opening for conductors up to 750MCM or two 500MCM
Complete with Type K thermocouple probe, test leads, 9V battery and belt holster

Fluke 718EX-30 Specifications

Measurement Accuracy

Pressure

Fluke 718Ex 30G
Range	-830 mbar to 2 bar (internal sensor)
	Over pressure: 3x FS
Resolution	0.0001 bar
Accuracy	0.05% FS
Functions	Zero, Min, Max, Hold, Damp
	Note: for use with non-corrosive gasses
Fluke 718Ex 100G
Range	-830 mbar to 7 bar (internal sensor)
	Over pressure: 2x FS
Resolution	0.001 bar
Accuracy	0.05% FS
Functions	Zero, Min, Max, Hold, Damp
	Note: for use with non-corrosive gasses
Fluke 718Ex series
	via pressure module connector
Range	29 pressure modules, 2.5 mbar to 700 bar
	Over pressure per pressure module specs
Resolution	Per pressure module specs
Accuracy	To 0.025% of full span, per pressure module specs
Functions	Zero, Min, Max, Hold, Damp
	Note: media compatibility per pressure module specs
Source Pressure, built in pump
Range	-820 mbar to full scale
Note	Supported Pressure Units PSI, in. H2O (4 °C), in. H2O (20 °C), kPa, cm H2O (4 °C),
	cm H2O (20 °C), bar, mbar, kg/cm², mmHg, in Hg

Technical Data

Measure Accuracy

Range	0-24 mA
Resolution	0.001 mA
Accuracy	0.02% rdg ± 2 counts

Display

LCD, 5 digit pressure and current simultaneous

Environmental Specifications

Operating temperature

-10°C to 55°C

Storage temperature

-40°C to 60°C

Humidity (Without Condensation)

	95% (10°C to 30°C)
	75% (30°C to 40°C)
	45% (40°C to 50°C)
	35% (50°C to 55°C)

Operating Altitude

3,000 m max

Safety Specifications

Safety

	ATEX II 1G EEx ia IIC T4 compliant
	CSA Certification I.S. Class I,
	Div 1 Groups A-D , T4

Mechanical & General Specifications

Size

216 mm L x 94 mm W x 66 mm H (with holster)

Weight

Approx. 992 g (with holster)

Warranty

1 year

Shock

1 meter drop test

Vibration

Random, 2 G, 5-500 Hz

Battery type

	One 9-volt alkaline battery ANSI/NEDA 1604A or IEC 6LR619V
	Battery life: 4 to 20 hours, depending on functions used

Click here for complete specifications on the Fluke 718EX-30

What's included with the Fluke 718EX-30

Fluke 718Ex-30G Intrinsically Safe Pressure Calibrator

datasheet for the Fluke 718Ex-30G Intrinsically Safe Pressure Calibrator manual for the Fluke 718Ex-30G Intrinsically Safe Pressure Calibrator

Click on a category to view a selection of compatible accessories with the Fluke 718Ex-30G Intrinsically Safe Pressure Calibrator.

Carrying Cases

Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25

Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.

Fluke C789 Meter & Accessory Case C789

Fluke C550 Premium Tool Bag C550

Tool Bag with steel reinforced frame.

Test Leads & Probes

Fluke TL71 Premium Right Angle Test Lead Set TL71

Comfort grip probes with flexible silicone-insulated, right-angle test leads. They are heat and cold resistant, with a safety rating of CAT II 1000 V, 10 A.

Fluke TL223 SureGrip Electrical Test Lead Set TL223

Designed for your comfort so you can focus on taking accurate measurements, this handy all-in-one kit comes equipped with a SureGrip alligator clip set, slim-reach test probes (flat bladed), and SureGrip silicone test lead set.

Fluke TL220 Suregrip Industrial Test Lead Set TL220

Includes the Fluke AC220, Fluke TP220, and Fluke TL224.

Fluke TL76 Test Lead Set TL76

Pair of red, black silicone test leads with right angle shrouded 0.16" (4 mm) banana plugs.

Process Tools

Fluke 700PCK Pressure Calibration Kit 700PCK

Calibrate pressure modules with your precision pressure standards with this pressure calibration kit. When installed on your PC, the Windows-based software steps you through as-found and as-left verifications, and a calibration adjustment. Kit comes with a power supply, an interface adapter, cables, and calibration software.
