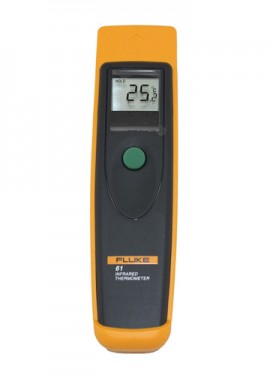

Measure temperature in hard-to-reach, hot, rotating, or dangerous situations with this infrared thermometer. This unit allows users to monitor the status of electrical motors and electrical panels, research heating, ventilation problems, and diagnose car malfunctions. Also, it provides a distance to spot ratio of 8:1.
Measure temperature in hard-to-reach, hot, rotating, or dangerous situations with this infrared thermometer. This unit allows users to monitor the status of electrical motors and electrical panels, research heating, ventilation problems, and diagnose car malfunctions. Also, it provides a distance to spot ratio of 8:1.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Test & Measurement category for similar products.
Or let's do a search and help you find what you need:
Features
Applications
| Temperature Range | 0 to 525°F (-18 to 275°C) |
| Display Resolution | 0.5°F (0.2°C) |
| Accuracy (Assumes Ambient Operating Temperature of 73°F (23°C)) | For targets at: 30 to 525°F (-1 to 275°C) ±2% of reading Or ±3.5°F (±2°C), whichever is greater 0 to 30°F (-18 to -1°C) ±5°F (±3°C) |
| Temperature Coefficient | 0.2K per °C or 0.2% per °C, whichever is greater |
| Repeatability | ± 2% of reading, or ±3.5°F (±2°C) whichever is greater |
| Response Time | 500 mSec, 95% response |
| Spectral Response | 7 to 18 µm |
| Emissivity | pre-set 0.95 |
| Ambient Operating Range | 32 to 120°F (0 to 50°C) |
| Relative Humidity | 10 to 90% RH noncondensing, at up to 120°F (50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) without battery |
| Power | 9 V Alkaline or NiCd battery |
| Battery Life (Alkaline) | 12 hours |
| Distance to Spot Size | 8:1 |
| Dimensions | 7.5 x 2 x 1.6" (190 x 51 x 41 mm) |
| Weight | 0.75 lb (227 g) |
Click on a category to view a selection of compatible accessories with the Fluke 61 Mini Handheld Infrared Thermometer.
