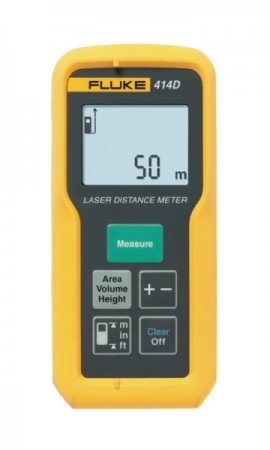

Fluke 414D Laser Distance Meter

Model: 414D | UPC: 095969613552

Downloads: datasheet manual

Fluke 414D Laser Distance Meter

Model: 414D

This professional-grade laser distance meter is fast and easy to use improving accuracy and reducing measurement errors.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 417D Laser Distance Meter

Model: 417D

Features a simple design and easy one-button operation to minimize the time measuring while maximizing the reliability of the measurements you need. Offers three different measurement tasks, an extra bright laser that is visible, large 2-line illuminated LCD screen, and three-buttons for one-handed measurements.

Learn More

Recommended Accessories

Fluke C195 Soft Case for 190 Series

C195

Fluke C50 Meter Case

C50

Fluke C550 Premium Tool Bag

C550

Fluke H5 Electrical Tester Holster

Fluke 414D Offers

Measures up to 50 meters (165 ft). This professional-grade laser distance meter is fast and easy to use, improving accuracy and reducing measurement errors. You'll save time and money at every step.

Features

The most advanced laser technology for distance measurement

Measures up to 50 meters (165 ft). This professional-grade laser distance meter is fast and easy to use, improving accuracy and reducing measurement errors. You'll save time and money at every step.

Instant measurement with one-button operation
Easy targeting with bright laser
Quick calculation of area (square footage) and volume
Easy addition and subtraction of measurements
Minimum/maximum function
Improved battery life from automatic shut-off feature
Pythagoras calculation for determining distance indirectly from two other measurements
Pouch with Fluke logo

Functional Specifications

Features

The most advanced laser technology for distance measurement
Instant measurement with one-button operation
Easy targeting with bright laser
Quick calculation of area (square footage) and volume
Easy addition and subtraction of measurements
Minimum/maximum function
Improved battery life from automatic shut-off feature

Typical Measuring Tolerance[1]: ± 2.0 mm [3]
Maximum Measuring Tolerance[2]: ± 3.0 mm [3]
Range at Leica target plate GZM26: 50 m / 165 ft: Typical Range[1]: 40 m / 130 ft
Range at unfavorable condition[4]: 35 m / 115 ft
Smallest unit displayed: 1 mm / 1/16 in
Laser point at distances: 6 / 30 / 60 mm (10 / 50 / 100 m)

General Specifications

Pythagoras calculation for determining distance indirectly from two other measurements
Pouch with Fluke logo

Laser class: II
Laser type: 635 nm, <1 mW
Protection class: IP40
Automatic laser off: After 90 seconds
Automatic power off: After 180 seconds
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03: up to 3,000 measurements
Size: (HxWxD) 116 mm x 53 mm x 33 mm (4.56 in x 2.08 in x 1.29 in)
Weight (with batteries): 113 g (3.98 oz)

Functional Specifications

Typical Measuring Tolerance[1]: ± 2.0 mm [3]
Maximum Measuring Tolerance[2]: ± 3.0 mm [3]
Range at Leica target plate GZM26: 50 m / 165 ft: Typical Range[1]: 40 m / 130 ft
Range at unfavorable condition[4]: 35 m / 115 ft
Smallest unit displayed: 1 mm / 1/16 in
Laser point at distances: 6 / 30 / 60 mm (10 / 50 / 100 m)

General Specifications

Laser class: II
Laser type: 635 nm, <1 mW
Protection class: IP40
Automatic laser off: After 90 seconds
Automatic power off: After 180 seconds
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03: up to 3,000 measurements
Size: (HxWxD) 116 mm x 53 mm x 33 mm (4.56 in x 2.08 in x 1.29 in)
Weight (with batteries): 113 g (3.98 oz)

Fluke 414D Specifications

	414D	419D	424D
Distance Measurement
Typical Measuring Tolerance[1]	± 2.0 mm [3]	± 1.0 mm [3]
Maximum Measuring Tolerance[2]	± 3.0 mm [3]	± 2.0 mm [3]
Range at Leica target plate GZM26	50 m / 165 ft	80 m / 260 ft	100 m / 330 ft
Typical Range[1]	40 m / 130 ft	80 m / 260 ft	80 m / 260 ft
Range at unfavorable condition[4]	35 m / 115 ft	60 m / 195 ft	60 m / 195 ft
Smallest unit displayed	1 mm / 1/16 in	6 /30 / 60 mm (10 / 50 / 100 m)
∅ laser point at distances	6 /30 / 60 mm (10 / 50 / 100 m)	6 /30 / 60 mm (10 / 50 / 100 m)
Tilt measurement
Measuring tolerance to laser beam[5]	No	No	± 0.2°
Measuring tolerance to housing[5]	No	No	± 0.2°
Range	No	No	360°
General
Laser class	2
Laser type	635 nm, <1 mW
Protection class	IP40	IP54
Automatic laser off	After 90 seconds
Automatic power off	after 180 seconds
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03	Up to 3,000 measurements	Up to 5,000 measurements
Size (H X W X L)	116mm Length 53mm Width 33mm Depth	127mm Length 56mm Width 33mm Depth	127mm Length 56mm Width 33mm Depth
Weight (with batteries)	113 g	153 g	158 g
Temperature range: Storage Operation	-25 °C to +70°C (-13 °F to +158 °F) 0 °C to +40 °C (32 °F to +104 °F)	-25 °C to +70°C (-
Calibration cycle	Not applicable	Not applicable	Tilt and compass
Maximum altitude	3000 m	3000 m	3000 m
Maximum relative humidity	85% at 20 °F to 120°F (-7 °C to 50 °C)	85% at 20 °F to 120°F (-7 °C to 50 °C)	85% at 20 °F to 120°F (-7 °C to 50 °C)
Safety	IEC Standard No. 61010-1:2001 EN60825-1:2007 (Class II)
EMC	EN 55022:2010 EN 61000-4-3:2010 EN 61000-4-8:2010

Click here for complete specifications on the Fluke 414D

What's included with the Fluke 414D

Fluke 414D Laser Distance Meter

datasheet for the Fluke 414D Laser Distance Meter manual for the Fluke 414D Laser Distance Meter
