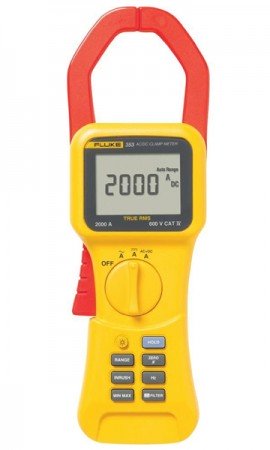

    Fluke 353 True RMS Clamp Meter, 2000 A

    Model: 353 | UPC: 095969401197

    Fluke 353 True RMS Clamp Meter, 2000 A-

    Downloads: datasheet manual

    Fluke 353 True RMS Clamp Meter, 2000 A

    Model: 353

    Confidently take reliable readings with this clamp meter, and is for use with high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, and rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements.

    Confidently take reliable readings with this clamp meter, and is for use with high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, and rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements.

    Discontinued!

    This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

    Visit our Clamp Meters category for similar products.

    Or let's do a search and help you find what you need:

    Recommended Accessories

    Fluke TLK291 Fused Test Probe Set-

    Fluke TLK291 Fused Test Probe Set

    TLK291

    Fluke TP2 Slim Reach Test Probe Set-

    Fluke TP2 Slim Reach Test Probe Set

    TP2

    Fluke AC285 SureGrip Alligator Clips-

    Fluke AC285 SureGrip Alligator Clips

    AC285

    Fluke 353 Offers

    Features

    • Reliably handle a wide range of high-current applications with 2000 A AC and DC True RMS, 1400 A AC, and 2000 A DC
    • The large 2.3" (58 mm) jaw capacity is suitable for large or multiple conductors
    • CAT IV 600 V, CAT III 1000 V rating for added user protection
    • In-rush current measurement captures 'power-on' surge current with accuracy and repeatability
    • Accurately measure frequency up to 1 kHz for optimum troubleshooting
    • Quickly analyze readings using the MIN, MAX, and AVG functions
    • A large backlit display allows for easy visibility in low-lit areas
    • Use the display hold feature to capture readings even when the display cannot be viewed
    • Use the low-pass filter to smooth out noisy loads and stabilize readings
    Fluke Clamp Selection Guide

    Fluke 353 Specifications

    Current Measurement DC and AC 10 to 100 Hz
    Range 40 A/400 A/2000 A/1400 AC RMS
    Resolution 10 mA/100 mA/1 A
    Accuracy A: 1.5% rdg + 15 digits
    A: 1.5% rdg + 5 digits
    Trigger Level for Inrush 0.50 A/5.0 A/5 A
    Trigger Level for Hz Filter OFF 2.50 A/2.5 A/8 A
    Trigger Level for Hz Filter ON 0.50 A/2.5 A/8 A
    Crest Factor (50/60 Hz)
    Range 40 A/400 A/2000 A/1400 AC RMS
    Crest Factor 2 at 33 A, 2.4 at 27 A
    2 at 330 A, 2.4 at 270 A
    2 at 1000 A, 2.4 at 833 A
    Current Measurement AC 100.1 Hz to 1 kHz
    Range 40 A/400 A/2000 A; 1400 AC RMS
    Resolution 10 mA/100 mA/1 A
    Accuracy 10 A: 3.5% rdg + 15 digits
    10 A: 3.5% rdg + 5 digits
    Trigger Level for Inrush 0.50 A/5.0 A/5 A
    Trigger Level for Hz Filter OFF 2.50 A/2.5 A/8 A
    Trigger Level for Hz Filter ON 0.50 A/2.5 A/8 A
    Frequency Measurement
    Measurement Range 5.0 Hz to 1 kHz
    Resolution 0.1 Hz (15 Hz to 399.9 Hz)
    1 Hz (400 Hz to 1 kHz)
    Accuracy 5.0 to 100 Hz: 0.2% + 2 counts
    100.1 Hz to 1 kHz: 0.5% + 5 counts
    Environmental Specifications
    Operating Temperature 32 to 122°F (0 to 50°C)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Operating Humidity 0 to 95% (non-condensing)
    Operating Altitude 6561.68' (2000 m)
    Storage Altitude 32,808.4' (10,000 m)
    IP Rating 42 (indoor use only)
    Drop Test Requirements 3.28' (1 m)
    EMI, RFI, EMC FCC part 15, IEC/EN 61326-1:1997 class B IEC/EN 61326:1997 3V/m, performance criteria B, EN61325
    Temperature Coefficients Current: 0.1% of reading per °C outside 22°C to 24°C
    Voltage: 0.1% of reading per °C outside 22°C to 24°C
    General Specifications
    Battery Type: 6 x 1.5 V AA NEDA 15 A or IEC LR6
    Life: 100 hours
    Test Leads Rated to 1000 V
    Jaw Size 2.28" (58 mm)
    Dimensions 12 x 3.75 x 2" (300 x 98 x 52 mm)
    Weight 1.8 lbs (0.814 kg)
    Safety Rating IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III
    Click here for complete specifications on the Fluke 353

    What's included with the Fluke 353

    • Clamp Meter
    • Carrying Case
    • 6 x AA Batteries
    • Users Manual
    • Three-Year Warranty
    Brochure Fluke Clamp Selection Guide datasheet for the Fluke 353 True RMS Clamp Meter, 2000 A manual for the Fluke 353 True RMS Clamp Meter, 2000 A
    Brochure: Fluke clamp meter selection guide

    Click on a category to view a selection of compatible accessories with the Fluke 353 True RMS Clamp Meter, 2000 A.

    Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
    Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.



    Fluke TLK291 Fused Test Probe Set TLK291
    Compatible with a variety of Fluke multimeters and test leads, this fused test probe set provides firm and secure contact.



    Fluke TP2 Slim Reach Test Probe Set TP2
    Ideal for probing closely spaced or recessed terminals, this slim reach test probe set also features hard stainless steel probe tips.



    Fluke AC285 SureGrip Alligator Clips AC285
    Designed to improve steadiness in slippery hands, and is for use with TL222 and TL224 test leads. Rubber over-molded surfaces and finger-hugging curves give a comfortable, reliable grip so you can focus on making an accurate measurement.
