Fluke 1743 Three Phase Power Quality Logger Memobox

Model: 1743 | UPC: 095969344760

Downloads: datasheet manual

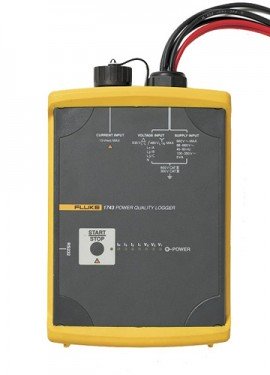

Fluke 1743 Three Phase Power Quality Logger Memobox

Model: 1743

IP65 water-proof monitor for logging the most common power parameters including V, A, W, VA, VAR, PF, energy, flicker, voltage events, and THD.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 1738 Advanced Three-Phase Power Logger with current probes

Model: 1738 | Order No: 1738/EUS

Conduct energy studies and power quality logging with this advanced three-phase power logger. Automatically capture and log over 500 power quality parameters with this logger, which provides you with more visibility into the data. Additionally, this unit is Fluke Connect compatible and comes equipped with current probes.

Learn More

Recommended Accessories

Fluke VL1735/45 banana 4-phase voltage lead set for fluke-1735/45

VL1735/45

Fluke I1A/10A-CLAMP-PQ3 Switchable Mini Clamp-On Current Probes

I1A/10A-CLAMP-PQ3

Fluke I20/200A-CLAMP-PQ4 4-phase 20A/200A Mini Clamp-On Current Probes

I20/200A-CLAMP-PQ4

Fluke I5A/50A-CLAMP-PQ4 Switchable Mini Clamp-On Current Transformers

I5A/50A-CLAMP-PQ4

Fluke 1743 Offers

Plug and play: Setup in minutes with automatic current probe detection and powering
Installs inside the cabinet: Compact, fully-insulated housing and accessories fit easily in tight spaces next to live power
Determines the root cause: Included PQ Log software quickly analyzes trends, creates statistical summaries, and generates detailed graphs and tables
Monitors power for the long-term: Data can be downloaded during recording without interruption
Measure voltage with premium accuracy: IEC61000-4-30 Class-A compliant voltage accuracy (0.1%)
Quickly validate quality of power: Assess power quality according to EN50160 power quality standard with statistical overview
Rugged and reliable: Designed for everyday field use with no moving parts and durable insulated case with two year warranty
Stringent safety standards: 600 V CAT III and 300 V CAT IV environments

Fluke 1743 Specifications

General Data

Intrinsic error

Refers to the reference conditions and is guaranteed for two years

Warranty

2 years

Recalibration interval

2 years recommended

Quality system

developed, designed, and manufactured according to DIN ISO 9001

Reference conditions

	23 °C ± 2 K; 74 °F ± 2 K , Vm=230 V ± 10%, 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Phase sequence	L1, L2, L3
Interval length	10 minutes
Wye connection	(L1, L2, L3 to N)
Power supply	88 V ... 265 V AC

Environment conditions

Working temp. range	-10 °C to 55°C; 14 °F to 131°F
Operating temp. range	0 °C to 35°C; 32 °F to 95°F
Storage temp. range	-20 °C to 60°C; -4 °F to 140°F
Reference temp. range	23 °C ± 2 K; 74 °F ± 2 K
Relative humidity	Fluke 1745: Class B2 acc. IEC 60654-1 Fluke 1744/43: Class C2 acc. IEC 60654-1

Housing

robust, fully insulated housing and accessories

Protection type

Fluke 1745	IP50 as per EN 60529
Fluke 1744/1743	IP65 as per EN 60529

Safety

IEC/EN 61010-1 600 V CAT III, 300 V CAT IV, pollution degree 2, double insulation

Type test voltage

5.2 kV rms, 50 Hz / 60 Hz, 5 s

EMC

Emission	IEC/EN 61326-1, EN55022
Immunity	IEC/EN 61326-1

Voltage and Current Measurement

Input voltage

Input range VI P-N	max 480 V AC
Input range VI P-P	max 830 V AC
Max. overload voltage	1.2 VI
Input range selection	By job programming
Connections	P-P or P-N, 1- or 3-phase
Nominal voltage VN	<= 999 kV with PTs and ratio
Input resistance	App. 820 kΩ per chan. Lx-N Single phase (L1 or A, L2 or B, L3 or C connected): app. 300 kΩ
Intrinsic uncenrtainty	0.1 % of VI
Voltage transformer	Ratio: <999 kV / VI
Ration selection	By job programming

Current input with Flexi Set

Input ranges II L1 or A, L2 or B, L3 or C, N:	15 A / 150 A / 1500 A / 3000 A ac
Measuring range	0.75 A 3000 A ac
Intrinsic uncertainty	< 2 % of II
Position influence	Max. ± 2 % of measured value - for distance conductor to meas. head > 30 mm
Stray field influence	< ± 2 A ac for Iext=500 A ac and distance to measuring head > 200 mm
Temperature coefficient	< 0.05 % / K
Current transformer	Ratio <= 999 kA / II
Ratio selection	By job programming
Connection	3-phase, 3-phase +N, 2 phase L1 or A and L3 or C (2 W-meter-method) 7 pole connector

Current input for clamp

Input ranges II L1 or A, L2 or B, L3 or C, N:	0.5 V nominal (for II) 1.4 Vpeak
Intrinsic uncertainty	< 0.3 % of II
Max. overload	10 V ac
Input resistance	App. 8.2 kΩ
Current transformer	Ratio Ω 999 kA / II

Power systems

Delta, 2-Element Delta, Wye, Single Phase, Split Single Phase

Logger

Power supply

Functional Range	88 V to 660 V absolute, 50 Hz / 60 Hz 100 V to 350 V dc Internal fuse: 630 mA T
Power consumption	5 Watts
Ride through	Fluke 1745: Internal battery for typ. > 5 hours ride through with intelligent power management Fluke 1743/44: 3 sec Capacitor
Fuse	Power supply fuse can be replaced in service facility only. Supply can be connected in parallel to measuring inputs (up to 660 V)

Display, indicators

LEDs for status and voltage levels
Fluke 1745: LC-display with backlight for voltage, current, active power, phase sequence.

Memory

	Capacity 8 MB Flash-EPROM
Intervals	A function > 12000 intervals for > 85 days with 10 min intervals P function > 30000 intervals for > 212 days with 10 min intervals
Events	> 13000
Memory model	linear, circular

Interface

RS 232, 9600...115 000 Baud, automatic Baud rate selection, 3-wire communication

Dimensions

Fluke 1745	282 mm x 216 mm x 74 mm (115in x 88in x 33in)
Fluke 1743/1744	170 mm x 125 mm x 55 mm (69in x 51in x 22in)

Weight

Fluke 1745	approx. 3 kg
Fluke 1744/1743	approx. 2 kg

Measurement

A/D converter	16 bit, sample rate: 10.24 kHz
Anti-aliasing filter	FIR-Filter, fc =4.9 kHz
Frequency response	Uncertainty < 1 % of Vm for 40 Hz to 2500 Hz
Interval length	1, 3, 5, 10, 30 s, 1, 5, 10, 15, 60 minutes
Averaging time for Min/max values	½, 1 mains period, 200 ms,1 , 3 , 5 s
Time base	Resolution: 10 ms (at 50 Hz), deviation: 2s/day at 23 °C; 74 °F ± 2 K

Click here for complete specifications on the Fluke 1743

What's included with the Fluke 1743

4 Flexible probes 15/150/1500/3000 A with 2 m cable
RS232 interface cable and RS232-USB adapter
Test leads for voltages and power supply
4 black dolphin clips
Color localization kit
Carrying bag
Test certificate with measurement values

View graphs and generate reports with Fluke Power Quality Log software

With its easy-to-use interface, the included Power Quality Log software assists you with logger setup, enables you to verify actual measurement values quickly using the online function, and downloads data from the logger to a connected PC operating on standard Windows® operating systems. You can view the logged data in graphical and tabular form, export it to a spreadsheet, or generate a professional report with the Report Writer function.

For root cause analysis, different measurements such as flicker, voltage and THD can be shown in the same time plot, helping to quickly identify the cause of a disturbance.
Statistical summaries like EN50160 and DISDIP table provide a quick, comprehensive summary. The EN50160 overview display provides a simple display of 8 power quality parameters on one dashboard, according to the latest international power quality standard.
Statistical analysis of Voltage and Current harmonics over a given time period. Red bar graphs indicate issues with the grid. Other colors are warnings for pontential future issues. Harmonics can be presented also as time plots.
