Fluke VT04-MAINT-KIT Visual IR Thermometer Maintenance Combo Kit

Model: VT04-MAINT-KIT | UPC: 095969683319

Be the first to review this product

Downloads: datasheet manual

Fluke VT04-MAINT-KIT Visual IR Thermometer Maintenance Combo Kit

Model: VT04-MAINT-KIT

Be the first to review this product

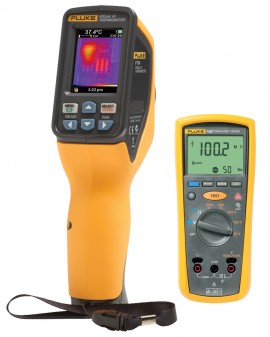

This kit includes the VT04 Visual IR Thermometer along with the 1507 Insulation Multimeter.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

REED R2165 Thermal Imaging Camera, 160 x 120

Model: R2165

Features a rugged IP65-rated double-molded housing and a 160 x 120 9Hz infrared sensor with 0.05°C thermal sensitivity.

The replacement product is only available on our affiliate ITM.com website. Don't worry your cart and information will be brought over.

Go to ITM.com

Not what you're looking for? Let’s do a search and help you find what you need.

Fluke VT04-MAINT-KIT Offers

VT04 Visual Infrared Thermometer

Built-in digital camera
Point and shoot, focus-free design
Exclusive thermal heat map blending overlay – with one button, blend digital images and thermal heat maps to instantly show the exact location of the issue
Fully automatic with built-in intelligence
True pocket size design – less than half the size of an average infrared camera
SmartView® reporting software – store up to 10,000 images per Gb on included SD card and make professional reports on included professional software
Automatic hot and cold spot trackers
Powerful resolution with PyroBlend® Plus optics:
- Best-in-class field of view: 28° x 28° (40% wider for tight spaces)
- 4 times sharper images
Alarm and time lapse:
- Hi/Lo temperature alarm – find hot spots in seconds with the alarm feature
- Time lapse image capture – automatically monitor equipment over time
- Automated monitoring alarm – automatically capture images after an alarm has been triggered

1507 Insulation Tester

Insulation test range: 0.01 MΩ to 10 GΩ
Insulation test voltages: 50, 100, 250, 500, 1000 V
Save time with automatic calculation of Polarization Index and Dielectric Absorption Ratio
Make repetitive tests simple and easy with the Compare (Pass/Fail) function
Repetitive or hard-to-reach testing is easy with the remote test probe
Live circuit detection prevents insulation test if voltage >30 V is detected for added user protection
Auto-discharge of capacitive voltage for added user protection
AC/DC voltage: 0.1 to 600 V
200 mA Continuity
Resistance: 0.01 Ω to 20.00 kΩ
Save battery power with auto power off
Read measurements easily with large, backlit display
CAT IV 600 V over-voltage category rating for added user protection

Fluke VT04-MAINT-KIT Specifications

VT04 Visual IR Thermometer
Built-In Visual Camera	Yes, get the context of visible light details in your images
Infrared Heat Map and Visual Image Blending	Yes, five blending modes on camera and continuous blending in SmartView software
Alignment Options	Near: <9" (23 cm) from target Far: >9" (23 cm) from target
Field of View	28° x 28° — the tight field of view lets you see more detail in your target
Temperature Measurement Range	14 to 482°F (-10 to 250°C)
Focus System	Focus free
Temperature Measurement Area	Center measurement box on screen shows the exact area the measurement is based on
File Format	.bmp or .is2. (the .is2 is editable in SmartView software)
Storage Medium	4GB micro-SD card that stores up to 9,999 images
Palettes	6 on the unit (Ironbow VT, Hot Metal, Greyscale Inverted, Greyscale, High Contrast VT, Rainbow) 4 additional in SmartView Software (Blue Red, High Contrast, Amber, Amber Inverted) Palette on .is2 images can be changed in SmartView software
1507 Insulation Resistance Tester
Maximum Voltage applied to any Terminal	600 V AC rms or DC
Temperature	Operating: -4 to 131°F (-20 to 55°C) Storage: -40 to 140°F (-40 to 60°C)
Temperature Coefficient	0.05 x (specified accuracy) per°C for temperatures <64°F or >82°F (<18°C or >28°C)
Vibration	Random, 2 g, 5 to 500 Hz per MIL-PRF-28800F, Class 2 instrument
Shock	1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)
Electromagnetic Compatibility	In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)
Safety	Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)
Certifications	CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition
Battery	4 x AA batteries (NEDA 15A or IEC LR6)
Dimensions	1.97 x 3.94 x 8.00" (5.0 x 10.0 x 20.3 cm)
Weight	1.2 lb (550 g)
IP Rating	IP40

Click here for complete specifications on the Fluke VT04-MAINT-KIT

What's included with the Fluke VT04-MAINT-KIT

VT04 Visual IR Thermometer
1507 Insulation Resistance Tester

datasheet for the Fluke VT04-MAINT-KIT Visual IR Thermometer Maintenance Combo Kit manual for the Fluke VT04-MAINT-KIT Visual IR Thermometer Maintenance Combo Kit
