Fluke VT04-HVAC-KIT Visual IR Thermometer and HVAC/R Kit

Model: VT04-HVAC-KIT | UPC: 095969683326

Downloads: datasheet manual

Fluke VT04-HVAC-KIT Visual IR Thermometer and HVAC/R Kit

Model: VT04-HVAC-KIT

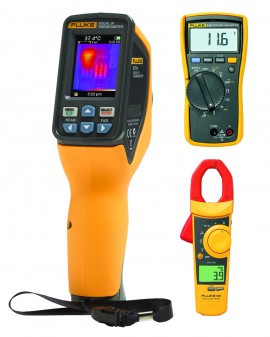

Kit Includes the VT04 Visual IR Thermometer along with a Fluke 902 True-RMS HVAC/R Clamp Meter, and Fluke 116 Digital Multimeter.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

REED R2165 Thermal Imaging Camera, 160 x 120

Model: R2165

Features a rugged IP65-rated double-molded housing and a 160 x 120 9Hz infrared sensor with 0.05°C thermal sensitivity.

The replacement product is only available on our affiliate ITM.com website. Don't worry your cart and information will be brought over.

Go to ITM.com

Not what you're looking for? Let’s do a search and help you find what you need.

Fluke VT04-HVAC-KIT Offers

FLUKE VT04 Visual Infrared Thermometer

Utilizes hyper-thin pyroelectric array technology
Point and shoot, focus-free design
Get the complete picture by saving a blended infrared and visual image with every image capture instantly
A blended image captures a center point temperature measurement and hot and cold markers all at once, allowing you to pinpoint the exact location of the potential problems

FLUKE 902 HVAC/R Clamp Meter

Designed for HVAC/R applications with capacitance, DC Current (µA), and temperature measurements
Small body and jaws fit perfectly in your hand and into tight places
The set point and deadband are both easily adjustable via screws inside the cover.
For ease of installation, the switches come with a 1/4" female NPT process connection and can be mounted in any orientation

FLUKE 116 True-RMS Multimeter

Built-in thermometer for HVAC/R applications
Microamps to test flame sensors
Low input impedance: helps prevent false readings due to ghost voltage
Large white LED backlight to work in poorly lit areas

Fluke VT02/VT04 Comparison:

Key Features	VT02	VT04
Built-in digital camera	Yes	Yes
Thermal heat map overlay	Yes, five blending modes
Image Optics System	PyroBled™ Optic	PyroBlend™ Plus optic *4x sharper image than VT02
Field of View	20° x 20°	28° x 28°
Hi-Lo temperature alarms	No	Yes
Time lapse image capture	No	Yes
Auto-monitor alarm	No	Yes
Battery type	Four (4) AA batteries	Li-Ion rechargeable
Training	No training required
Ergonomics	Slim pocket-sized design
Hot and cold markers	Yes
General Features
Battery life	Eight (8) hours
Temperature measurement range	-10 °C to +250 °C (14 °F to 482 °F)
Temperature measurement accuracy	+/- 2 °C or +/- 2 %
Temperature measurement	Yes, centerpoint
Storage medium (micro SD card)	Stores up to 10,000 images per Gb (Four (4) Gb card included)
Infrared spectral band	6.5 µm to 14 µm
Level and span	Auto
Focus mechanism	Focus free, no training required with built-in intelligence
Focus options-exclusive user selectable NEAR/FAR options	NEAR > 23 cm (9 in); FAR < 23 cm (9 in)
Dimensions	21 cm x 7.5 cm x 5.5 (8.3 in x 3 in x 2.2 in); < 300 g. (10.5 oz.)
File format	.is2 format saved to SD card. User can create professional reports or export images in SmartView (BMP, DIB, GIF, SPE, FIF, SPEG, JPG, PNG, TIF and TIFF)
Safety and compliance	CFR47: 2009 Class A. Part 15 subpart B; CE: EN 61326:2006; IEC/EN 61010-1:2010
Warranty	Two (2) years

Click here for complete specifications on the Fluke VT04-HVAC-KIT

Fluke VT04 What's Included

The FLUKE VT04-HVAC-KIT Visual IR Thermometer HVAC/R Combo Kit includes all of the following items:

1 - VT04 Visual IR Thermometer
   1 - Hard case
   1 - Micro-SD card
   1 - Micro-SD conversion adapter to standard
   1 - Li-Ion rechargeable battery
   1 - Li-Ion charging base
   1 - AC power supply
   1 - Lanyard
   1 - Printed Quick Start Guides (EN, FR, DE, ES, Simplified Chinese)
   1 - SmartView® analysis and reporting software CD
   1 - Manual and Quick Start Guide on CD (21 languages)
1 - FLUKE 902 True-rms HVAC/R Clamp Meter
1 - FLUKE 116 Digital Multimeter
