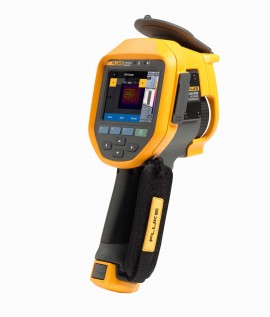

Fluke Ti450 PRO 60Hz Infrared Camera, 60 Hz, 320 x 240

Model: Ti450-PRO 60 Hz | Order No: TI450-PRO-60HZ | UPC: 095969862660

Fluke Ti450 PRO 60Hz Infrared Camera, 60 Hz, 320 x 240-


Downloads: datasheet manual

Fluke Ti450 PRO 60Hz Infrared Camera, 60 Hz, 320 x 240

Model: Ti450-PRO 60 Hz | Order No: TI450-PRO-60HZ

This professional camera features SuperResolution which captures and combines 4x the data to create a 640 x 480 image. Features an increased sensitivity to visualize temperature differences, and NETD is ≤0.025 at 30°C target temperature (25mK).

This professional camera features SuperResolution which captures and combines 4x the data to create a 640 x 480 image. Features an increased sensitivity to visualize temperature differences, and NETD is ≤0.025 at 30°C target temperature (25mK).

This product has been discontinued. Click here for the replacement model(s).


Fluke Ti450-PRO 60 Hz Offers

Features

  • Increased sensitivity to visualize temperature differences, NETD is ≤0.025 at 30°C target temp (25 mK)
  • Easier to visualize and diagnose issues with sharper onscreen images, multiple rectangle markers and 9 color palettes
  • More intuitive visual interface, improved, user-tested, touch screen interface
  • More flexibility to visualize target, tiny-to-large with interchangeable smart lenses - no calibration required, 2x and 4x telephoto, wide angle and macro lens compatibility
  • Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
  • Get an instant in-focus image of your designated target - LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target
  • Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 640 x 480 image
  • Save time - wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order
  • Reduce the need take notes in the field with IR-PhotoNotes™ and voice annotations
  • Highlight areas that are outside your pre-set ‘normal' temperature ranges quickly with color alarms

Increased Sensor Sensitivity

The additional sensitivity to the camera's internal sensor helps you capture smaller surface temperature differences, making it easier to visualize results. With the enhanced measurement accuracy and the wider dynamic temperature range up to 1500°C with NETD as low as 25 mK, you can collect precise information for making informed decisions that boost your company's return on investment (ROI).

Sharper Images for Diagnosing Issues

Improvements to the firmware lead to sharper onscreen infrared images with clearer color differentiation, giving you a stronger visual indicator of temperature differentials. The infrared camera show deviations from standard temperatures and relay issues to your team using multiple Delta-T (ΔT) markers. You'll spot and analyze temperature-related issues with more certainty.

Updated User Interface

The improved, user-tested, touch screen interface is faster and easier to use than ever. The display integrates a contemporary design, featuring multiple rectangular markers in-camera. It helps your crew quickly identify min/max temperatures for an area of the equipment or equipment array. To further enhance the visual display, the cameras have a new palette and wider color array of yellows and greens to help distinguish heat differences.

More Flexibility to Visualize Targets with Smart Lenses

Compatible with more Fluke infrared smart lenses. Whether the thermal inspection calls for macro, telephoto, or wide-angle, you can attach the appropriate lens to better capture your target. Fluke smart lenses are interchangeable between compatible cameras, without calibration.

Share Thermal Images with SmartView® and Fluke Connect®

With the improvements to the firmware and thermal sensitivity of this infrared camera, you are better prepared to create comprehensive and professional thermal inspection reports. SmartView gives thermal investigators a simple solution for viewing infrared images on their mobile devices or desktop computers. Fluke Connect offers an easy way to share thermal images where they can be viewed on a smartphone or tablet allowing team members to collaborate and analyze equipment status in real-time.

Rotating Machinery

Technicians can use the thermal imaging capabilities of the handheld infrared camera to discover and diagnose various issues, including cooling problems and impeded airflow, bearing issues on motors, and many mechanical problems. It captures clear and accurate images with advanced focus technologies, helping technicians confidently.

Applications

  • Thermal utility inspections
  • Thermal industrial application troubleshooting
  • Oil and gas inspections

MultiSharp Focus creates images focused throughout the camera's field of view

Focus is one of the most important aspects of thermography, and an out of focus image can give you data that can lead to misdiagnosis – costing you thousands. With this infrared camera, worrying about focus is now obsolete. With MultiSharp™ focus, you get images automatically focused throughout the field of view, even if you start from a completely blurry target. That's because the camera takes multiple images and combines them to give you clear, accurate focus on targets near and far. Simply point and shoot.

Row of pipes, taken with manual focus

Manual focus – only front pipe in focus.

Row of pipes, taken with manual focus

MultiSharp™ Focus produces an image focused throughout the field of view.

2 motors, taken with manual focus

Manual focus – only 1 motor in focus.

2 motors, taken with MultiSharp™ Focus

MultiSharp™ Focus – front and back motors in focus.

Get instant focus on a single target with LaserSharp® Auto Focus

With the push of a button, a built-in laser distance meter instantly calculates and displays the distance to your designated target, and the focus engine immediately adjusts the focus.

Autofocus image focused on fence

Passive autofocus systems may only capture the near-field subject (fence).

LaserSharp<sup>®</sup> Auto Focus focused on target

LaserSharp® Auto Focus captures your designated target.

See more detail with SuperResolution

It brings 640 x 480 SuperResolution to the superior infrared camera. Now you can see even more detail with 4x the pixel data. SuperResolution captures multiple images and combines them to create a 640 x 480 image.

IR image taken with regular resolution

Regular resolution.

IR image taken with SuperResolution

SuperResolution. Get 4x the pixel data – a 640 x 480 image.

See the impossible with infrared lenses

Infrared lenses can make it possible to inspect targets that would be challenging to see with a standard IR lens due to their size and distance. Compatible with 2x and 4x telephoto and wide angle lenses.

Power line pole - standard lens

Standard lens.

Power line pole - 4x telephoto lens

4x Telephoto infrared smart lens.

Save time with the Fluke Connect® system

You can wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order. Having access to maintenance records simultaneously at the inspection site and from the office or an off-site location enables faster decision making and real time collaboration between team members. You can also live stream the camera display to your smartphone or PC and remotely control the camera.

Technician reviewing measurements from Fluke Connect<sup>®</sup> tools on smartphone

Capture and save measurements from your wireless-enabled test tools to the Fluke Connect® app on your smartphone.

Comparing two IR images on Fluke Connect™ Assets software

Asset analysis dashboard: Easily compare complex data.

Fluke Ti450-PRO 60 Hz Specifications

Key Features
Detector Resolution 320 x 240 (76,800 pixels) or 640 x 480 with SuperResolution
SuperResolution Yes, in software. Captures and combines 4x the data to create a 640 x 480 image
IFOV with Standard Lens (Spatial Resolution) 1.31mRad, D:S 753:1
Field of View 24°H x 17°V (Standard Lens)
Minimum Focus Distance Approx. 6" (15 cm) (Standard Lens)
MultiSharp™ Focus Yes, focused near and far, throughout the field of view
LaserSharp® Auto Focus Yes, for consistently in-focus images
Touchscreen Display 3.5" (landscape) 640 x 480 LCD
Thermal Sensitivity (NETD) ≤0.025°C at 30°C target temp (25mK)
Frame Rate 60 Hz
Digital Zoom  2x and 4x
Temperature Measurement
Temperature Measurement Range
(not calibrated below -10°C)
14 to 2732°F (-10 to 1500°C)
Accuracy  ±2°C or 2% (at 25°C nominal, whichever is greater)
Color Palettes
Standard 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
General Specifications
Color Alarms (Temperature Alarms) High temperature, low temperature, and isotherms (within range)
Infrared Spectral Band 7.5 to 14 μm (long wave)
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -4 to 122°F (-20 to 50°C) without batteries
Spot Temperature Hot and cold spot markers
Safety IEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic Compatibility IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Dimensions 10.9 x 4.8 x 6.5" (27.7 x 12.2 x 16.7 cm)
Weight 2.3 lb (1.04 kg)
Click here for complete specifications on the Fluke Ti450-PRO 60 Hz

What's included with the Fluke Ti450-PRO 60 Hz

  • Infrared Camera
  • AC Power Supply and Battery Pack Charger
  • Universal AC Adapters
  • 2 x Lithium Ion Smart Battery Packs
  • USB Cable
  • HDMI Video Cable
  • 4GB Micro SD Card
  • Hard Carrying Case
  • Soft Transport Bag with Adjustable Hand Strap
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements

Click on a category to view a selection of compatible accessories with the Fluke Ti450 PRO 60Hz Infrared Camera, 60 Hz, 320 x 240.

Fluke TI-BLUETOOTH Headset TI-BLUETOOTH
Use the bluetooth headset to take voice annotations and record audio after taking a thermal image with the TIS performance series cameras.








Fluke TI-SBC3B Smart Battery Charger TI-SBC3B
Charging base for rechargeable lithium-ion battery packs.




Fluke Visor3 Sun Visor FLK-TI-VISOR3
Sun Visor for the Fluke Ti200, Ti300 and Ti400 Thermal Imaging Cameras.




Fluke TI-TRIPOD3 Mounting Accessory TI-TRIPOD3
This tripod mounting base helps stabilize your thermal imager when mounting to a standard tripod or monopod. Use with the TI and TIS Fluke Thermal Imagers.




Fluke FLK-LENS/TELE2 x2 Telephoto Infrared Smart Lens FLK-LENS/TELE2
Features a FOV of 12 x 9 and a minimum focus distance of 45cm (approx. 18"). To be used with the Fluke TI200, TI300 and TI400.




Fluke LENS/4XTELE2 Optional Thermal Imaging Lens, 4x Telephoto LENS/4XTELE2
Optional 4X Telephoto Lens for the TI200/300/400 Thermal Imaging Cameras.




Fluke FLK-LENS/WIDE2 Infrared Wide Angle Lens FLK-LENS/WIDE2
Optional 46° x 34° field swappable, wide angle thermal lens for use with the Ti400, Ti300 and Ti200 infrared cameras.
