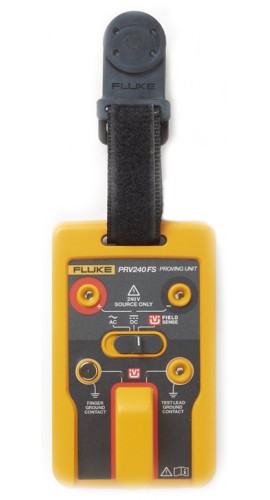

Fluke PRV240FS Proving Unit

Model: PRV240FS | UPC: 095969854092

Fluke PRV240FS Proving Unit-


Downloads: datasheet

Fluke PRV240FS Proving Unit

Model: PRV240FS

Provides a safe method to verify that your electrical test tool is operating properly before you conduct any live tests.

Provides a safe method to verify that your electrical test tool is operating properly before you conduct any live tests.

Sale Price $215.10 CAD
Regular Price $239.00 CAD
Availability 2 to 3 Weeks
Quantity

Fluke PRV240FS Offers

Reduces the need for personal protective equipment (PPE) when a known voltage source is not available for verification (PPE is still needed for absence of voltage testing when appropriate).

Features

  • Sources both ac and dc steady-state voltage - supplies 240 V dc/ac
  • A single LED indicates functionality, making this unit a simple-to-use solution for verification of your test tool
  • Compatible with both high impedance or low impedance multimeters, clamp meters or two pole testers
  • Voltage is sourced through recessed contacts that are activated when tested probes are inserted to avoid accidental contact
  • Long battery life - 5,000 tests per set of four AA batteries

Fluke PRV240FS Specifications

Output Voltage 240 V ac rms or dc ±10 % ≥1 MΩ
LED Power Indicator Turns on when output voltage is present
Battery 4 x AA Alkaline batteries NEDA
Battery Life 5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load
Operating Temperature -10 to +50 °C
Operating Humidity 0 % to 90 % (0 to 35 °C), 0 % to 70 % (35 to 55 °C)
Operating Altitude 2000 m
Dimensions 11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in), Pollution Degree 2
Weight 0.23 kg (8 oz) includes batteries
Safety IEC61010-1, IEC61010-2-030
Certification CSA-CUS, CE
Warranty One Year
Click here for complete specifications on the Fluke PRV240FS

What's included with the Fluke PRV240FS

  • Fluke PRV240FS Proving Unit
  • TPAK Hanging Strap
  • Four AA Batteries
  • Instruction Sheet

Customer Reviews for the Fluke PRV240FS

Ask a question about Fluke PRV240FS Proving Unit

Fluke PRV240FS Offers

Reduces the need for personal protective equipment (PPE) when a known voltage source is not available for verification (PPE is still needed for absence of voltage testing when appropriate).

Features

  • Sources both ac and dc steady-state voltage - supplies 240 V dc/ac
  • A single LED indicates functionality, making this unit a simple-to-use solution for verification of your test tool
  • Compatible with both high impedance or low impedance multimeters, clamp meters or two pole testers
  • Voltage is sourced through recessed contacts that are activated when tested probes are inserted to avoid accidental contact
  • Long battery life - 5,000 tests per set of four AA batteries

Fluke PRV240FS Specifications

Output Voltage 240 V ac rms or dc ±10 % ≥1 MΩ
LED Power Indicator Turns on when output voltage is present
Battery 4 x AA Alkaline batteries NEDA
Battery Life 5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load
Operating Temperature -10 to +50 °C
Operating Humidity 0 % to 90 % (0 to 35 °C), 0 % to 70 % (35 to 55 °C)
Operating Altitude 2000 m
Dimensions 11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in), Pollution Degree 2
Weight 0.23 kg (8 oz) includes batteries
Safety IEC61010-1, IEC61010-2-030
Certification CSA-CUS, CE
Warranty One Year
Click here for complete specifications on the Fluke PRV240FS

What's included with the Fluke PRV240FS

  • Fluke PRV240FS Proving Unit
  • TPAK Hanging Strap
  • Four AA Batteries
  • Instruction Sheet
