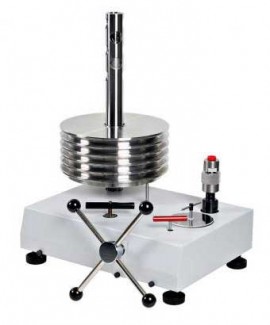

This high-pressure hydraulic deadweight tester is built with a range of functions and options that are all designed to help boost accuracy and simplify use. The tester has a 500 to 30,000psi range.
This high-pressure hydraulic deadweight tester is built with a range of functions and options that are all designed to help boost accuracy and simplify use. The tester has a 500 to 30,000psi range.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping. We will contact you with your shipping costs.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
This hydraulic tester has mass set that can be trimmed to local gravity FOC.
Features
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Model number | 754 | 721/721Ex | 719Pro | 719 | 718 | 717 | 700G | 3130 | 2700G | Dead-weight Testers |
| Application | ||||||||||
| Calibrating pressure transmitters (field) | ● | ● | Ideal | ● | ● | ● | ● | |||
| Calibrating pressure transmitters (bench) | ● | ● | ● | ● | ● | ● | Ideal | ● | ||
| Calibrating HART Smart transmitters | Ideal | |||||||||
| Documenting pressure transmitter calibrations | Ideal | |||||||||
| Testing pressure switches in the field | Ideal | ● | ● | ● | ● | ● | ● | |||
| Testing pressure switches on the bench | ● | ● | ● | ● | ● | ● | Ideal | |||
| Documenting pressure switch tests | Ideal | |||||||||
| Testing pressure switches with live (voltage) contacts | Ideal | |||||||||
| Gas custody transfer computer tests | ● | Ideal | ● | |||||||
| Verifying process pressure gauges (field) | Ideal | ● | ● | ● | ● | ● | ● | |||
| Verifying process pressure gauges (bench) | ● | ● | ● | ● | ● | ● | ● | ● | Ideal | |
| Logging pressure measurements | ● | Ideal | ● | |||||||
| Testing pressure devices using a reference gauge | Ideal | |||||||||
| Hydrostatic vessel testing | Ideal | |||||||||
| Leak testing (pressure measurement logging) | ● | Ideal | ||||||||
| Pressure Ranges | 500 to 30,000psi, or 40 to 2,000bar, or 4 to 200mPa, or 40 to 2,000kgf/cm2 |
| Standard Weight Material | Series 3 non-magnetic, austenitic, stainless steel |
| Weight Density | 7.8g/cm3 |
| Piston Material | Tungsten carbide with nickel binder |
| Cylinder Material | Tungsten carbide with cobalt binder |
| Thermal Coefficient of Expansion | 11ppm/°C |
| Test Port Adapters | 9/16 - 18 UNF (Autoclave); 3/8 BSP; 1/2 BSP and 3/4 BSP |
| Reservoir Volume | 235cc (14.3in3) |
| Intensifier Ratio | 7 to 1 |
| Seal Materials | Nitrile |
| Operating Fluid | Dioctyl Sebacate (DOS), our reference 55-600 |
Click on a category to view a selection of compatible accessories with the Fluke P3830-PSI Hydraulic Deadweight Tester, 500 to 30,000psi.
