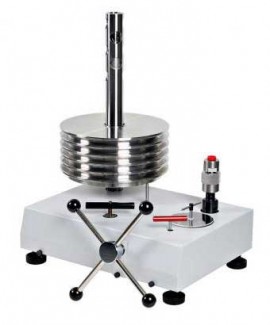

This hydraulic deadweight tester is designed for calibrating most high-pressure-sending devices, such as transducers, transmitters, gauges, pressure switches and other calibrators.
This hydraulic deadweight tester is designed for calibrating most high-pressure-sending devices, such as transducers, transmitters, gauges, pressure switches and other calibrators.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
This hydraulic tester has mass set that can be trimmed to local gravity FOC.
Features
| Pressure Ranges | 500 to 30,000psi, or 40 to 2,000bar, or 4 to 200mPa, or 40 to 2,000kgf/cm2 |
| Standard Weight Material | Series 3 non-magnetic, austenitic, stainless steel |
| Weight Density | 7.8g/cm3 |
| Piston Material | Tungsten carbide with nickel binder |
| Cylinder Material | Tungsten carbide with cobalt binder |
| Thermal Coefficient of Expansion | 11ppm/°C |
| Test Port Adapters | 9/16 - 18 UNF (Autoclave); 3/8 BSP; 1/2 BSP and 3/4 BSP |
| Reservoir Volume | 235cc (14.3in3) |
| Intensifier Ratio | 7 to 1 |
| Seal Materials | Nitrile |
| Operating Fluid | Dioctyl Sebacate (DOS), our reference 55-600 |
Click on a category to view a selection of compatible accessories with the Fluke P3800C Hydraulic Deadweight Tester, 4,000bar.
| Pressure Ranges | 500 to 30,000psi, or 40 to 2,000bar, or 4 to 200mPa, or 40 to 2,000kgf/cm2 |
| Standard Weight Material | Series 3 non-magnetic, austenitic, stainless steel |
| Weight Density | 7.8g/cm3 |
| Piston Material | Tungsten carbide with nickel binder |
| Cylinder Material | Tungsten carbide with cobalt binder |
| Thermal Coefficient of Expansion | 11ppm/°C |
| Test Port Adapters | 9/16 - 18 UNF (Autoclave); 3/8 BSP; 1/2 BSP and 3/4 BSP |
| Reservoir Volume | 235cc (14.3in3) |
| Intensifier Ratio | 7 to 1 |
| Seal Materials | Nitrile |
| Operating Fluid | Dioctyl Sebacate (DOS), our reference 55-600 |
Click on a category to view a selection of compatible accessories with the Fluke P3800C Hydraulic Deadweight Tester, 4,000bar.
