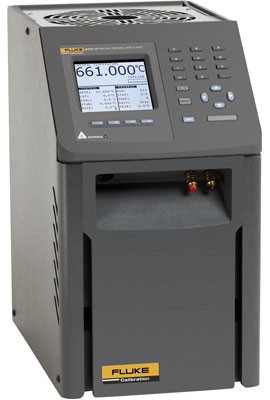

Fluke 9173-DW-156 Field Metrology Well (No Insert), 50 to 700°C

Model: 9173-DW-156 | UPC: 95969413664

Fluke 9173-DW-156 Field Metrology Well (No Insert), 50 to 700°C-

Fluke 9173-DW-156 Field Metrology Well (No Insert), 50 to 700°C

Model: 9173-DW-156

Featuring an 8in (203mm) immersion depth, plus a range from 50 to 700°C, this field metrology well delivers stable, uniform performance, working to help eliminate uncertainty budgets when calibrating thermometers at high temperatures. The metrology well comes without an insert.

Featuring an 8in (203mm) immersion depth, plus a range from 50 to 700°C, this field metrology well delivers stable, uniform performance, working to help eliminate uncertainty budgets when calibrating thermometers at high temperatures. The metrology well comes without an insert.

Your Price $13631.00 CAD
Availability 2 to 3 Weeks
Quantity

Add In-House ISO Certified Calibration add to your 9173-DW-156

Add In-House ISO Certified Calibration add to your 9173-DW-156


Fluke 9173-DW-156 Offers

Accurate enough for lab use, and rugged and portable enough to take anywhere.

Features

  • Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
  • Immersion depth to 8in (203mm)
  • Optional ITS-90 reference input reads PRTs to ±0.006°C
  • Temperature range from -49 to 1,292°F (-45 to 700°C)

Fluke 9173-DW-156 Specifications

Range (at 23°C Ambient) 122 to 1,292°F (50 to 700°C) (calibrated to 660°C; reference thermometer recommended at higher temperatures)
Display Accuracy ±0.2°C: 50 to 425°C
±0.25°C: 425 to 660°C
Stability ±0.005°C: 50 to 100°C
±0.01°C: 100 to 425°C
±0.03°C: 425 to 700°C
Well Depth 8in (203mm)
Display LCD, °C or °F (user-selectable)
Size (H x W x D) 14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight 33lbs (15kg)
Power 115VAC (±10%), or 230 VAC (±10%), 50/60Hz, 1,025W
Computer Interface RS-232
Traceable Calibration Data at 100°C, 200°C, 350°C, 500°C and 660°C

What's included with the Fluke 9173-DW-156

  • Fluke 9173-DW-156 Field Metrology Well (No Insert), 50 to 700°C
  • Click on a category to view a selection of compatible accessories with the Fluke 9173-DW-156 Field Metrology Well (No Insert), 50 to 700°C.

    Fluke Z Insert (Model 9173-INSZ) for 9173 Metrology Wells, Aluminum-Bronze, Blank 9173-INSZ
    With an aluminum-bronze finish, this Z insert fits 9173 metrology wells.




    Fluke A Insert (Model 9173-INSA) for 9173 Metrology Wells, Aluminum-Bronze, Misc Holes 9173-INSA
    With misc holes and an aluminum-bronze finish, this A insert fits 9173 metrology wells.




    Fluke B Insert (Model 9173-INSB) for 9173 Metrology Wells, Aluminum-Bronze, Comparison Holes 9173-INSB
    With comparison holes and an aluminum-bronze finish, this B insert fits 9173 metrology wells.




    Fluke C Insert (Model 9173-INSC) for 9173 Metrology Wells, Aluminum-Bronze, 0.25in Holes 9173-INSC
    With 0.25in holes and an aluminum-bronze finish, this C insert fits 9173 metrology wells.




    Fluke D Insert (Model 9173-INSD) for 9173 Metrology Wells, Aluminum-Bronze, Comparison Metric Holes 9173-INSD
    With comparison metric holes and an aluminum-bronze finish, this D insert fits 9173 metrology wells.




    Fluke E Insert (Model 9173-INSE) for 9173 Metrology Wells, Aluminum-Bronze, Misc Metric Holes with 0.25in Ref Hole 9173-INSE
    With misc metric holes and a 0.25in ref hole, plus an aluminum-bronze finish, this E insert fits 9173 metrology wells.




    Fluke F Insert (Model 9173-INSF) for 9173 Metrology Wells, Aluminum-Bronze, Metric Comparison Holes with 0.25in Ref Hole 9173-INSF
    With metric comparison holes and a 0.25in ref hole, plus an aluminum-bronze finish, this F insert fits 9173 metrology wells.




    Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells 9170-CASE
    Safely carry your 9170-3 metrology well using this case, which is constructed with a foam-lined interior for added protection and recessed steel handles to aid transport.




    Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells 9170-DCAS
    Compatible with 9170-3 metrology wells, this wheeled transit case has a high-impact plastic exterior and a foam-lined interior to help keep your unit safe. The built-in wheels simplify transport.
