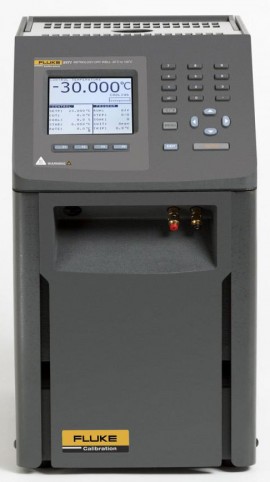

    Fluke 9171-B-156 Field Metrology Well with B Insert (Model 9171-INSB), -30 to 155°C

    Model: 9171-B-156 | UPC: 095969294126

    Fluke 9171-B-156 Field Metrology Well with B Insert (Model 9171-INSB), -30 to 155°C-

    Downloads: datasheet manual

    Fluke 9171-B-156 Field Metrology Well with B Insert (Model 9171-INSB), -30 to 155°C

    Model: 9171-B-156

    Made to be rugged and portable, this field metrology well allows you to bring lab-quality performance into whatever field environment you're working in. The metrology well has an 8in (203mm) immersion depth for deeper needs, and it comes with a B insert.

    Made to be rugged and portable, this field metrology well allows you to bring lab-quality performance into whatever field environment you're working in. The metrology well has an 8in (203mm) immersion depth for deeper needs, and it comes with a B insert.

    Your Price $19852.00 CAD
    Availability 2 to 3 Weeks
    Quantity

    Traceable Calibration Certificate Icon

    Traceable Calibration Certificate for your add 9171-B-156

    Traceable Calibration Certificate Icon

    Traceable Calibration Certificate for your add 9171-B-156

    Recommended Accessories

    Fluke B Insert (Model 9171-INSB) for 9171 Metrology Wells, Aluminum, Comparison Holes-

    Fluke B Insert (Model 9171-INSB) for 9171 Metrology Wells, Aluminum, Comparison Holes

    9171-INSB

    Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells-

    Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells

    9170-CASE

    Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells-

    Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells

    9170-DCAS

    Fluke 9171-B-156 Offers

    Accurate enough for lab use, and rugged and portable enough to take anywhere.

    Features

    • Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
    • Immersion depth to 8in (203mm)
    • Optional ITS-90 reference input reads PRTs to ±0.006°C
    • Temperature range from -49 to 1,292°F (-45 to 700°C)

    Fluke 9171-B-156 Specifications

    Range (at 23°C Ambient) -22 to 311°F (-30 to 155°C)
    Display Accuracy ±0.1°C (full range)
    Stability ±0.005°C (full range)
    Well Depth 8in (203mm)
    Display LCD, °C or °F (user-selectable)
    Size (HxWxD) 14.4 x 8 x 12.7in (366 x 203 x 323mm)
    Weight 33lbs (15kg)
    Power 115VAC (±10%), or 230VAC (±10%), 50/60Hz, 550W
    Computer Interface RS-232
    Traceable Calibration Data at -30°C, 0°C, 50°C, 100°C and 155°C
    Click here for complete specifications on the Fluke 9171-B-156

    What's included with the Fluke 9171-B-156

    • Field Metrology Well
    • 9171-INSB Insert "B" 9171
    datasheet for the Fluke 9171-B-156 Field Metrology Well with B Insert (Model 9171-INSB), -30 to 155°C manual for the Fluke 9171-B-156 Field Metrology Well with B Insert (Model 9171-INSB), -30 to 155°C

    Click on a category to view a selection of compatible accessories with the Fluke 9171-B-156 Field Metrology Well with B Insert (Model 9171-INSB), -30 to 155°C.

    Fluke B Insert (Model 9171-INSB) for 9171 Metrology Wells, Aluminum, Comparison Holes 9171-INSB
    Featuring comparison holes and an aluminum construction, this B insert works with 9171 metrology wells.



    Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells 9170-CASE
    Safely carry your 9170-3 metrology well using this case, which is constructed with a foam-lined interior for added protection and recessed steel handles to aid transport.



    Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells 9170-DCAS
    Compatible with 9170-3 metrology wells, this wheeled transit case has a high-impact plastic exterior and a foam-lined interior to help keep your unit safe. The built-in wheels simplify transport.



    Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
    Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.



    Ask a question about Fluke 9171-B-156 Field Metrology Well with B Insert (Model 9171-INSB), -30 to 155°C

    Customer Reviews for the Fluke 9171-B-156

    Fluke 9171-B-156 Offers

    Accurate enough for lab use, and rugged and portable enough to take anywhere.

    Features

    • Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
    • Immersion depth to 8in (203mm)
    • Optional ITS-90 reference input reads PRTs to ±0.006°C
    • Temperature range from -49 to 1,292°F (-45 to 700°C)
    Show More...

    Fluke 9171-B-156 Specifications

    Range (at 23°C Ambient) -22 to 311°F (-30 to 155°C)
    Display Accuracy ±0.1°C (full range)
    Stability ±0.005°C (full range)
    Well Depth 8in (203mm)
    Display LCD, °C or °F (user-selectable)
    Size (HxWxD) 14.4 x 8 x 12.7in (366 x 203 x 323mm)
    Weight 33lbs (15kg)
    Power 115VAC (±10%), or 230VAC (±10%), 50/60Hz, 550W
    Computer Interface RS-232
    Traceable Calibration Data at -30°C, 0°C, 50°C, 100°C and 155°C
    Click here for complete specifications on the Fluke 9171-B-156

    What's included with the Fluke 9171-B-156

    • Field Metrology Well
    • 9171-INSB Insert "B" 9171
    datasheet for the Fluke 9171-B-156 Field Metrology Well with B Insert (Model 9171-INSB), -30 to 155°C manual for the Fluke 9171-B-156 Field Metrology Well with B Insert (Model 9171-INSB), -30 to 155°C

    Click on a category to view a selection of compatible accessories with the Fluke 9171-B-156 Field Metrology Well with B Insert (Model 9171-INSB), -30 to 155°C.

    Fluke B Insert (Model 9171-INSB) for 9171 Metrology Wells, Aluminum, Comparison Holes 9171-INSB
    Featuring comparison holes and an aluminum construction, this B insert works with 9171 metrology wells.



    Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells 9170-CASE
    Safely carry your 9170-3 metrology well using this case, which is constructed with a foam-lined interior for added protection and recessed steel handles to aid transport.



    Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells 9170-DCAS
    Compatible with 9170-3 metrology wells, this wheeled transit case has a high-impact plastic exterior and a foam-lined interior to help keep your unit safe. The built-in wheels simplify transport.



    Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
    Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.



    Ask a question about Fluke 9171-B-156 Field Metrology Well with B Insert (Model 9171-INSB), -30 to 155°C

    Customer Reviews for the Fluke 9171-B-156
