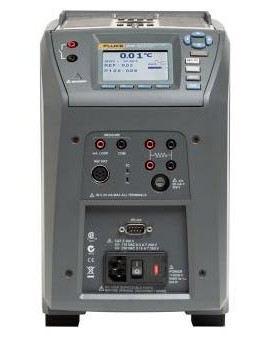

    Fluke 9144-DW-P-156 Field Metrology Well (No Insert) with Process Electronics, 122 to 1220°F

    Model: 9144-DW-P-156 | UPC: 095969420440

    Fluke 9144-DW-P-156 Field Metrology Well (No Insert) with Process Electronics, 122 to 1220°F-

    Downloads: datasheet

    Fluke 9144-DW-P-156 Field Metrology Well (No Insert) with Process Electronics, 122 to 1220°F

    Model: 9144-DW-P-156

    Designed to be lightweight, portable and fast, this field metrology well comes without an insert and has process electronics. The metrology well is made for a variety of field applications, such as transmitter loop calibrations, comparison calibrations and thermocouple sensor checks.

    Designed to be lightweight, portable and fast, this field metrology well comes without an insert and has process electronics. The metrology well is made for a variety of field applications, such as transmitter loop calibrations, comparison calibrations and thermocouple sensor checks.

    Your Price $11502.88 CAD
    Availability 2 to 3 Weeks
    Quantity

    Recommended Accessories

    Fluke E Insert (Model 9144-INSE) for 9144 Metrology Wells, Metric Misc Holes with 0.25in Hole-

    Fluke E Insert (Model 9144-INSE) for 9144 Metrology Wells, Metric Misc Holes with 0.25in Hole

    9144-INSE

    Fluke F Insert (Model 9144-INSF) for 9144 Metrology Wells, Metric Comparison Misc Holes with 0.25in Hole-

    Fluke F Insert (Model 9144-INSF) for 9144 Metrology Wells, Metric Comparison Misc Holes with 0.25in Hole

    9144-INSF

    Fluke Z Insert (Model 9144-INSZ) for 9144 Metrology Wells, Blank-

    Fluke Z Insert (Model 9144-INSZ) for 9144 Metrology Wells, Blank

    9144-INSZ

    Fluke G Insert (Model 9144-INSG) for 9144 Metrology Wells, EA Test-

    Fluke G Insert (Model 9144-INSG) for 9144 Metrology Wells, EA Test

    9144-INSG

    Fluke 9144-DW-P-156 Offers

    It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

    Features

    • Lightweight, portable, and fast
    • Cool to -25°C in 15 minutes and heat to 660°C in 15 minutes
    • Built-in 2-channel readout for PRT, RTD, thermocouple, 4-20mA current
    • True reference thermometry with accuracy to ±0.01°C
    • On-board automation and documentation
    • Metrology performance in accuracy, stability, uniformity, and loading

    Fluke 9144-DW-P-156 Specifications

    Temperature Range at 23°C 122 to 1,220°F (50 to 660°C)
    Display Accuracy ±0.35°C at 50°C
    ±0.35°C at 420°C
    ±0.5°C at 660°C
    Operating Conditions 0 to 50°C, 0 to 90% RH (non-condensing)
    Immersion (Well) Depth 5.9in (150mm)
    Resolution 0.01°
    Display LCD, °C or °F (user-selectable)
    Size (H x W x D) 11.4 x 7.3 x 11.6in (290 x 185 x 295mm)
    Weight 17lbs (7.7kg)
    Power Requirements 100 to 115V (±10%) 50/60Hz, 1,400W; 230V (±10%), 50/60Hz, 1,800W
    Computer interface RS-232 (9930 Interface-it control software included)
    Click here for complete specifications on the Fluke 9144-DW-P-156

    What's included with the Fluke 9144-DW-P-156

    • User Manual
    • Technical Manual on CD
    • Serial Cable
    • 9930, Interface-it Software
    • Report of Calibration
    • Test Leads
    • Insert Removal Tool
    • 6-Pin DIN Connector for Reference Probe

    Fluke Metrology Wells: Overview


    This video will serve as an introduction and overview of the Fluke metrology wells. These units are used to calibrate a variety of different temperature sensors. Additionally, it provides you metrology performance in a field environment.
    datasheet for the Fluke 9144-DW-P-156 Field Metrology Well (No Insert) with Process Electronics, 122 to 1220°F

    Click on a category to view a selection of compatible accessories with the Fluke 9144-DW-P-156 Field Metrology Well (No Insert) with Process Electronics, 122 to 1220°F.

    Fluke E Insert (Model 9144-INSE) for 9144 Metrology Wells, Metric Misc Holes with 0.25in Hole 9144-INSE
    With metric misc holes and a 0.25in hole, this E insert is made to work with the 9144 field metrology well.



    Fluke F Insert (Model 9144-INSF) for 9144 Metrology Wells, Metric Comparison Misc Holes with 0.25in Hole 9144-INSF
    With metric comparison misc holes and a 0.25in hole, this F insert is made to work with the 9144 field metrology well.



    Fluke Z Insert (Model 9144-INSZ) for 9144 Metrology Wells, Blank 9144-INSZ
    This Z insert is made to work with the 9144 field metrology well.



    Fluke G Insert (Model 9144-INSG) for 9144 Metrology Wells, EA Test 9144-INSG
    This G insert is made to work with the 9144 field metrology well.



    Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
    Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.
