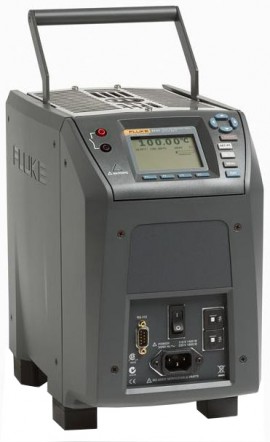

Fluke 9143-C-P-156 Field Metrology Well with C Insert (Model 9143-INSC) and Process Electronics, 33 to 350°C

Model: 9143-C-P-156 | UPC: 95969419949

Fluke 9143-C-P-156 Field Metrology Well with C Insert (Model 9143-INSC) and Process Electronics, 33 to 350°C-


Downloads: manual

Fluke 9143-C-P-156 Field Metrology Well with C Insert (Model 9143-INSC) and Process Electronics, 33 to 350°C

Model: 9143-C-P-156

This small-sized field metrology well is perfect for big field applications, including transmitter loop calibrations, comparison calibrations and thermocouple sensor checks. The metrology well comes with a C insert and has process electronics.

This small-sized field metrology well is perfect for big field applications, including transmitter loop calibrations, comparison calibrations and thermocouple sensor checks. The metrology well comes with a C insert and has process electronics.

Your Price $10468.00 CAD
Availability 2 to 3 Weeks
Quantity

Fluke 9143-C-P-156 Offers

It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

Features

  • Lightweight, portable, and fast
  • Cool to -25°C in 15 minutes and heat to 660°C in 15 minutes
  • Built-in 2-channel readout for PRT, RTD, thermocouple, 4-20mA current
  • True reference thermometry with accuracy to ±0.01°C
  • On-board automation and documentation
  • Metrology performance in accuracy, stability, uniformity, and loading

Fluke 9143-C-P-156 Specifications

Temperature Range at 23°C 91 to 662°F (33 to 350°C)
Display Accuracy ±0.2°C (full range)
Operating Conditions 0 to 50°C, 0 to 90% RH (non-condensing)
Immersion (Well) Depth 5.9in (150mm)
Resolution 0.01°
Display LCD, °C or °F (user-selectable)
Size (H x W x D) 11.4 x 7.3 x 11.6in (290 x 185 x 295mm)
Weight 16lbs (7.3kg)
Power Requirements 100 to 115V (±10%) 50/60Hz, 1400W; 230V (±10%), 50/60Hz, 1,800W
Computer interface RS-232 (9930 Interface-it control software included)

What's included with the Fluke 9143-C-P-156

  • User Manual
  • Technical Manual on CD
  • Serial Cable
  • 9930, Interface-it Software
  • Report of Calibration
  • Test Leads
  • Insert Removal Tool
  • 6-Pin DIN Connector for Reference Probe

Click on a category to view a selection of compatible accessories with the Fluke 9143-C-P-156 Field Metrology Well with C Insert (Model 9143-INSC) and Process Electronics, 33 to 350°C.

Fluke C Insert (Model 9143-INSC) for 9143 Metrology Wells, 0.25in Holes 9143-INSC
Designed to work with the 9143 field metrology well, this C insert features 0.25in holes.
