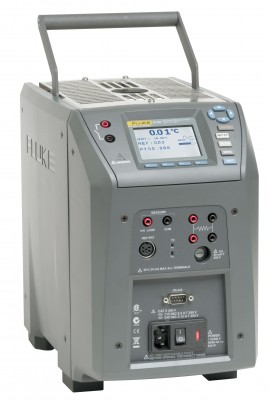

Fluke 9143-A-156 Medium Temp Field Metrology Well

Model: 9143-A-156 | UPC: 95969419840

Fluke 9143-A-156 Medium Temp Field Metrology Well-


Downloads: datasheet manual

Fluke 9143-A-156 Medium Temp Field Metrology Well

Model: 9143-A-156

This unit calibrates a wide range of sensor types. Manual setup allows you to program and run the procedure exactly how you would like.

This unit calibrates a wide range of sensor types. Manual setup allows you to program and run the procedure exactly how you would like.

Your Price $8003.00 CAD
Availability 4 to 5 Weeks
Quantity

Add In-House ISO Certified Calibration to your 9143-A-156

Add In-House ISO Certified Calibration to your 9143-A-156


Recommended Accessories


Fluke 9143-A-156 Medium Temp Field Metrology Well Offers

Features

  • Auto setup requires the entry of only the nominal switch temperature, and with this entry it will run a 3-cycle calibration procedure and provide final results for the dead band temperature via the display
  • Manual setup allows you to program and run the procedure exactly how you would like
  • Each device (process and non-process versions) comes with an IEC-17025 NVLAP-accredited calibration certificate
  • Each calibration is backed with a 4:1 test uncertainty ratio
  • Display accuracy of ± 0.2°C over their full range
  • Stable from ±0.02°C at 33°C and ±0.03°C at 350°C
  • Thermal block characteristics provide radial (well-to-well) uniformity performance to ±0.01°C
  • Dual-zone control helps these tools achieve axial uniformity to ±0.05°C at 40 mm (1.6")

Applications

Ideal for the following applications: Laboratory, Education, R&D, Calibration Labs, Field Calibration, Industrial Process

Fluke 9143-A-156 Specifications

Temperature Range 33 to 350°C (122 to 1220°F)
Accuracy ±0.35°C @ 50°C; ±0.35°C @ 420°C; ±0.5°C @ 660°C
Stability ±0.03°C @ 50°C; ±0.04°C @ 420°C; ±0.05°C @ 660°C
Radial Uniformity ±0.02°C at 50°C; ±0.05°C at 420°C; ±0.14°C at 660°C
Axial Uniformity @ 40mm (1.6") ±0.05°C at 50°C; ±0.2°C at 420°C; ±0.3°C at 660°C
Hysteresis 0.1
Heating Time 15 minutes
Cooling Time 25 mins to 100°C
Immersion Depth 150mm (6")
Insert O.D. 24.4mm (0.96")
Click here for complete specifications on the Fluke 9143-A-156

What's included with the Fluke 9143-A-156

  • Fluke 9143-A-156 Medium Temp Field Metrology Well
  • Fluke 9143-A-156 Videos

    Click on a category to view a selection of compatible accessories with the Fluke 9143-A-156 Medium Temp Field Metrology Well.

    Fluke 9142-CASE for Field Metrology Wells 9142-CASE
    Field Metrology Well Case.




    Customer Reviews for the Fluke 9143-A-156

    Ask a question about Fluke 9143-A-156 Medium Temp Field Metrology Well

    Fluke 9143-A-156 Medium Temp Field Metrology Well Offers

    Features

    • Auto setup requires the entry of only the nominal switch temperature, and with this entry it will run a 3-cycle calibration procedure and provide final results for the dead band temperature via the display
    • Manual setup allows you to program and run the procedure exactly how you would like
    • Each device (process and non-process versions) comes with an IEC-17025 NVLAP-accredited calibration certificate
    • Each calibration is backed with a 4:1 test uncertainty ratio
    • Display accuracy of ± 0.2°C over their full range
    • Stable from ±0.02°C at 33°C and ±0.03°C at 350°C
    • Thermal block characteristics provide radial (well-to-well) uniformity performance to ±0.01°C
    • Dual-zone control helps these tools achieve axial uniformity to ±0.05°C at 40 mm (1.6")

    Applications

    Ideal for the following applications: Laboratory, Education, R&D, Calibration Labs, Field Calibration, Industrial Process

    Fluke 9143-A-156 Specifications

    Temperature Range 33 to 350°C (122 to 1220°F)
    Accuracy ±0.35°C @ 50°C; ±0.35°C @ 420°C; ±0.5°C @ 660°C
    Stability ±0.03°C @ 50°C; ±0.04°C @ 420°C; ±0.05°C @ 660°C
    Radial Uniformity ±0.02°C at 50°C; ±0.05°C at 420°C; ±0.14°C at 660°C
    Axial Uniformity @ 40mm (1.6") ±0.05°C at 50°C; ±0.2°C at 420°C; ±0.3°C at 660°C
    Hysteresis 0.1
    Heating Time 15 minutes
    Cooling Time 25 mins to 100°C
    Immersion Depth 150mm (6")
    Insert O.D. 24.4mm (0.96")
    Click here for complete specifications on the Fluke 9143-A-156

    What's included with the Fluke 9143-A-156

  • Fluke 9143-A-156 Medium Temp Field Metrology Well
  • Fluke 9143-A-156 Videos

    Click on a category to view a selection of compatible accessories with the Fluke 9143-A-156 Medium Temp Field Metrology Well.

    Fluke 9142-CASE for Field Metrology Wells 9142-CASE
    Field Metrology Well Case.
