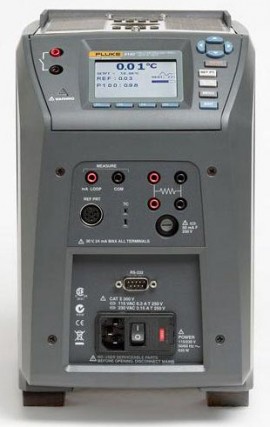

Fluke 9142-E-156 Field Metrology Well with E Insert (Model 9142-INSE), -25 to 150°C

Model: 9142-E-156 | UPC: 95969419642

Fluke 9142-E-156 Field Metrology Well with E Insert (Model 9142-INSE), -25 to 150°C-


Downloads: manual

Fluke 9142-E-156 Field Metrology Well with E Insert (Model 9142-INSE), -25 to 150°C

Model: 9142-E-156

Use this field metrology well to perform transmitter loop calibrations, comparison calibrations or simple thermocouple sensor checks. With plenty of remarkly easy functions, this field metrology well comes with an E insert.

Use this field metrology well to perform transmitter loop calibrations, comparison calibrations or simple thermocouple sensor checks. With plenty of remarkly easy functions, this field metrology well comes with an E insert.

Your Price $10197.00 CAD
Availability 2 to 3 Weeks
Quantity

Fluke 9142-E-156 Offers

It has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments.

Features

  • Lightweight, portable, and fast
  • Cool to -25°C in 15 minutes and heat to 660°C in 15 minutes
  • Built-in 2-channel readout for PRT, RTD, thermocouple, 4-20mA current
  • True reference thermometry with accuracy to ±0.01°C
  • On-board automation and documentation
  • Metrology performance in accuracy, stability, uniformity, and loading

Fluke 9142-E-156 Specifications

Temperature Range at 23°C -13 to 302°F (-25 to 150°C)
Display Accuracy ±0.2°C (full range)
Operating Conditions 0 to 50°C, 0 to 90% RH (non-condensing)
Immersion (Well) Depth 5.9in (150mm)
Resolution 0.01°
Display LCD, °C or °F (user-selectable)
Size (H x W x D) 11.4 x 7.3 x 11.6in (290 x 185 x 295mm)
Weight 18lbs (8.16kg)
Power Requirements 100 to 115V (±10%), 50/60Hz, 635W; 230V (±10%), 50/60Hz, 575W
Computer Interface RS-232 (9930 Interface-it control software included)

What's included with the Fluke 9142-E-156

  • User Manual
  • Technical Manual on CD
  • Serial Cable
  • 9930, Interface-it Software
  • Report of Calibration
  • Insert Removal Tool

Click on a category to view a selection of compatible accessories with the Fluke 9142-E-156 Field Metrology Well with E Insert (Model 9142-INSE), -25 to 150°C.

Fluke E Insert (Model 9142-INSE) for 9142 Metrology Wells, Metric Misc Holes with 0.25in Hole 9142-INSE
Use this E insert with your existing 9142 metrology well. The insert comes equipped with metric misc holes for compatibility.
