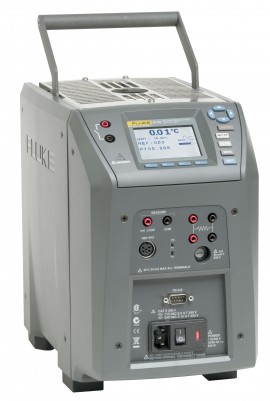

Fluke 9142-A-156 Low Temp Field Metrology Well

Model: 9142-A-156 | UPC: 95969419420

Fluke 9142-A-156 Low Temp Field Metrology Well-


Downloads: datasheet manual

Fluke 9142-A-156 Low Temp Field Metrology Well

Model: 9142-A-156

This unit calibrates a wide range of sensor types. Manual setup allows you to program and run the procedure exactly how you would like.

This unit calibrates a wide range of sensor types. Manual setup allows you to program and run the procedure exactly how you would like.

Your Price $10197.00 CAD
Availability 1 to 2 Weeks
Quantity

Add In-House ISO Certified Calibration to your 9142-A-156

Add In-House ISO Certified Calibration to your 9142-A-156


Recommended Accessories


Fluke 9142-A-156 Low Temp Field Metrology Well Offers

Features

  • Auto setup requires the entry of only the nominal switch temperature, and with this entry it will run a 3-cycle calibration procedure and provide final results for the dead band temperature via the display
  • Manual setup allows you to program and run the procedure exactly how you would like
  • Each device (process and non-process versions) comes with an IEC-17025 NVLAP-accredited calibration certificate
  • Each calibration is backed with a 4:1 test uncertainty ratio
  • Display accuracy of ± 0.2°C over their full range
  • Stable to ± 0.01°C over its full range and the mid-range
  • Thermal block characteristics provide radial (well-to-well) uniformity performance to ±0.01°C
  • Dual-zone control helps these tools achieve axial uniformity to ±0.05°C at 40 mm (1.6")

Applications

Ideal for the following applications: Laboratory, Education, R&D, Calibration Labs, Field Calibration, Industrial Process

Fluke 9142-A-156 Specifications

Temperature Range -25 to 150°C (-13 to 302°F)
Accuracy ±0.2°C (full range)
Stability ±0.01°C (full range)
Radial Uniformity ±0.01°C (full range)
Axial Uniformity @ 40mm (1.6") ±0.05°C (full range)
Hysteresis 0.025
Heating Time 23 minutes
Cooling Time 15 mins to -25°C
Immersion Depth 150mm (6")
Insert O.D. 30mm (1.18")
Click here for complete specifications on the Fluke 9142-A-156

What's included with the Fluke 9142-A-156

  • Fluke 9142-A-156 Low Temp Field Metrology Well
  • Fluke 9142-A-156 Videos

    Click on a category to view a selection of compatible accessories with the Fluke 9142-A-156 Low Temp Field Metrology Well.

    Fluke 9142-CASE for Field Metrology Wells 9142-CASE
    Field Metrology Well Case.




    Customer Reviews for the Fluke 9142-A-156

    Ask a question about Fluke 9142-A-156 Low Temp Field Metrology Well
