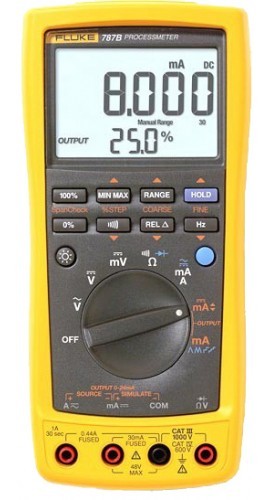

Fluke 787B CAL Process Meter with calibration certificate, 1,000 V

Model: 787B CAL | UPC: 095969946865

Fluke 787B CAL Process Meter with calibration certificate, 1,000 V-


Downloads: datasheet manual

Fluke 787B CAL Process Meter with calibration certificate, 1,000 V

Model: 787B CAL

With a large, bright dual-measurement display, the Fluke 789 Cal Process Meter is a compact digital multimeter and mA loop calibrator solution that can quickly and easily troubleshoot every part of a control loop. It is full-featured mA loop calibrator with built-in 1000 V Loop Power.

With a large, bright dual-measurement display, the Fluke 789 Cal Process Meter is a compact digital multimeter and mA loop calibrator solution that can quickly and easily troubleshoot every part of a control loop. It is full-featured mA loop calibrator with built-in 1000 V Loop Power.

Your Price $2307.19 CAD
Availability 7 in Stock
Quantity

Fluke 787B CAL Offers

The Fluke 789B Process Meter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a full-featured loop calibrator with the power of a CAT III 1000 V, CAT IV 600 V safety rated digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a large, dual display with two levels of backlighting and externally accessible fuse and batteries for easy replacement. And its built-in, selectable 250-ohm HART® resistor eliminates the need to carry a separate resistor.

The 789 also has a built-in 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can also add the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smart phone and review it from a remote location.
*Requires Fluke IR3000FC module (not included). Not all models are available in all countries. Check with your local Fluke representative.

Features

  • 20 mA dc current source/measure/simulate
  • Simultaneous mA and % of scale readout
  • DMM designed to meet 1000 volt IEC 61010 CAT III and 600 V CAT IV standards
  • Fluke Connect® compatibility for wireless data logging (with IR3000FC module)*
  • Precision 1000 V, 440 mA true-rms digital multimeter
  • Frequency measurement to 20 kHz
  • Min/Max/Average/Hold/Relative modes
  • Diode test and continuity beeper
  • Manual step (100%, 25%, Coarse, Fine) plus Auto Step and Auto Ramp
  • Externally accessible battery for easy battery changes
  • Compact digital multimeter and mA loop calibrator solution
  • Full-featured mA loop calibrator with built-in 24 V Loop Power
  • Quickly and easily troubleshoot every part of a control loop
  • Large, bright dual-measurement display

Do a lot more while carrying a lot less

The 789 provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper. Combine that with the ability to troubleshoot every part of the loop.

Measure, source, simulate 4 to 20 mA signals, measure resistance, measure power, provide power to the loop and provide 250-ohm resistance to the loop. The 789 includes SpanCheck; 0% and 100% buttons to toggle between 4 and 20 mA sourcing, while the display can simultaneously show mA and% of scale readings for faster troubleshooting. It also delivers 1200-ohm drive capability on mA source.

Accuracy: This Process Meter offers manual step, 100%, 25%, Coarse, Fine, plus auto step and auto ramp. It also delivers 0.1% DC voltage accuracy and 0.05% DC current accuracy.

Applications

  • Electrical and Instrumentation professionals

Fluke 787B CAL Specifications

Measurement Function V DC
Range and resolution: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
Best accuracy (% of reading + LSD): 0.1% + 1

V AC (true-rms)
Range and resolution: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
Best accuracy (% of reading + LSD): 0.7% + 2

mA DC
Range and resolution: 30.000 mA
Best accuracy (% of reading + LSD): 0.05% + 2

A DC
Range and resolution: 1.000 A (0.440 A continuous)
Best accuracy (% of reading + LSD): 0.2% + 2

A AC
Range and resolution: 1.000 A (0.440 A continuous)
Best accuracy (% of reading + LSD): 1% + 2

Resistance
Range and resolution: 400.0 Ohms, 4.000 k, 40.00 k, 400.0 k, 4.0 M, 40 M
Best accuracy (% of reading + LSD): 0.2% + 1

Frequency (0.5 Hz to 20 kHz)
Range and resolution: 199.99 Hz, 1999.9 Hz, 19.999 kHz
Best accuracy (% of reading + LSD): 0.005% + 1

Diode test
Range and resolution: 2.000 V (shows diode voltage drop)
Best accuracy (% of reading + LSD): 2% + 1

Continuity
Range and resolution: Beeps for resistance < approximately 100 ohms
Output Function DC current output (internal battery operation)
Range and resolution: 0.000 to 20.000 mA or 4.000 to 20.000 mA (selectable at power-up), Over-range to 24.000 mA
Drive capability: 24 V compliance or 1200 ohms, at 20 mA
Accuracy (% of span): 0.05%

DC current simulate (Ext. 15 V to 48 V loop supply)
Range and resolution: 0.000 to 20.000 mA or 4.000 to 20.000 mA (selectable at power-up), Over-range to 24.000 mA
Drive capability: 1000 ohms, at 20 mA
Accuracy (% of span): 0.05%

24 V loop supply*
Range and resolution: Minimum 24 V
Drive capability: 250 ohms at 20 mA
Accuracy (% of span): > 24 V

Current adjustment modes
Range and resolution: Manual: Coarse, Fine, 25% and 100% step
Drive capability: Automatic: Slow Ramp, Fast Ramp, 25% step

Temperature range of 64 to 82°F (18 to 28°C) for one year after calibration
Maximum voltage applied between any jack and earth ground 1000 V RMS
Vibration Random, 2 g, 5-500 Hz
Shock 3.28' (1 m) drop test
Safety IEC61010-1, Pollution Degree 2/IEC61010-2-033, CAT IV 600 V/CAT III 1000 V
Environmental Conditions Storage temperature: -40 to 140°F (-40 to 60°C)
Operating temperature: -4 to 131°F (-20 to 55°C)
Temperature coefficient: 0.05 x (specified accuracy) per °C (for temperatures < 64 °F or > 82 °F)
Relative humidity: 95% up to 86°F (30°C); 75% up to 104°F (40°C); 45% up to 122°F (50°C); 35% up to 131°F (55°C)
Power Battery: Four AA alkaline batteries
Battery life: 140 hours typical (measurement), 10 hours typical (sourcing 12 mA)
Dimensions 1.97 x 3.94 x 8" (50 x 100 x 203 mm)
Weight 1.3 lbs (600 g)
Click here for complete specifications on the Fluke 787B CAL

What's included with the Fluke 787B CAL

  • Process Meter
  • Alligator Clips
  • 4 x AA 1.5 V Alkaline Batteries (installed)
  • Safety-designed Test Lead Set
