Fluke 754-KIT5 Documenting Process Calibrator Kit, Includes FREE Products with Purchase

Model: 754-KIT5 | UPC: 095969491754

Fluke 754-KIT5 Documenting Process Calibrator Kit, Includes FREE Products with Purchase-


Downloads: datasheet manual

Fluke 754-KIT5 Documenting Process Calibrator Kit, Includes FREE Products with Purchase

Model: 754-KIT5

Comes in a rugged design, this documenting process calibrator is ideal for calibrating, maintaining and, troubleshooting hart instrumentation. This value added kit includes the REED R2300 Infrared Thermometer, REED R5200 Receptacle Tester, REED R5100 Voltage Detector, REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter, REED R5040 AC/DC Clamp Meter, REED R5400 Line Splitter & REED R5600 Insulation Tester for FREE.

Comes in a rugged design, this documenting process calibrator is ideal for calibrating, maintaining and, troubleshooting hart instrumentation. This value added kit includes the REED R2300 Infrared Thermometer, REED R5200 Receptacle Tester, REED R5100 Voltage Detector, REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter, REED R5040 AC/DC Clamp Meter, REED R5400 Line Splitter & REED R5600 Insulation Tester for FREE.

Sale Price $11113.00 CAD
Regular Price $12124.00 CAD
Availability 1 in Stock
Quantity

Add In-House ISO Certified Calibration to your 754

Add In-House ISO Certified Calibration to your R5040

Add In-House ISO Certified Calibration to your R2310

Add In-House ISO Certified Calibration to your R5005

Add In-House ISO Certified Calibration to your 754

Add In-House ISO Certified Calibration to your R5040

Add In-House ISO Certified Calibration to your R2310

Add In-House ISO Certified Calibration to your R5005


The Fluke 754 Offers

Whether you're calibrating instruments, troubleshooting a problem, or running routine maintenance, this process calibrator can help you get the job done quicker. It's capable of doing many different tasks rapidly and well, it's the only calibrator you need to carry. Comes in a rugged design and is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.

This is a power multifunction documenting calibrator that you can use to download procedures, lists, and instructions created with software; or upload data for printing, archiving, and analysis. The powerful built-in HART interface is capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.

In fact, this documenting process calibrator does the work of several tools. It sources, simulates and measures pressure, temperature, and electrical signals with one rugged, hand-held device. For documentation, the 754 automates calibration procedures and captures your data. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations. Plus, the new improved graphical screen, Li-Ion battery for longer life, USB port, and accessories help you work smarter and faster.

To create a seamless/paperless calibration management system consider adding Fluke DPCTrack2 Calibration Management software.

Features

  • Full-featured documenting process calibrator with HART communication for calibrating and troubleshooting HART instrumentation
  • Measures volts, mA,TDs, thermocouples, frequency, and ohms to test sensors, transmitters and more
  • Sources/simulates volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Powers transmitters during test using loop supply with simultaneous mA measurement
  • Handles fast pulsed rtd transmitters and PLCs, with pulses as short as 1 ms
  • Creates and runs automated as-found/as-left procedures to satisfy quality programs or regulations, and records and documents results
  • Holds up to a full week of downloaded procedures and calibration results
  • Uses many features like autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more
  • Provides easy-to-use multi-lingual interface
  • Features a bright white dual display for reading both sourced and measured parameters simultaneously
  • Offers compatibility with many asset management software packages
  • Multifunctional
  • Powerful, yet easy to use
  • Records and documents results
  • Truly hand-held
  • Rugged and reliable
  • Bright white display
  • Soft keys
  • Three operating modes
  • Multi-lingual interface
  • Built-in algebraic calculator
  • Programmable measurement delay

Pressure Modules

Covers virtually any pressure application including gauge, differential, dual (compound), absolute, and vacuum.

  • Display pressure readings in any of 10 different pressure units you specify in the calibrator setup.
  • Rugged urethane molded cases protect the modules from rough handling and harsh conditions.
  • Features internal temperature compensation from 0 to 50°C for full accuracy performance.
  • Includes NIST-traceable calibration certificate.
  • Modules can be calibrated locally, helping to control costs.

A family of 29 optional pressure modules provides pressure calibration and measurement capabilities. Twenty-eight modules are available, with basic accuracy specs to 0.05%. Ranges start at 0 to 1 in H20 (0 to .25 kPa) and go to 0 to 10,000 psi (0 to 70,000 kPa). Additional information about pressure modules is available on the Pressure Modules Home Page.

Application Selection Guide

Fluke 754 Documenting Process Calibrator with HART communication Fluke 721 Dual Sensor Pressure Calibrators Fluke 719PRO Electric Pressure Calibrators Fluke 719 Pressure Calibrator Fluke 718 Series Pressure Calibrators Fluke 717 Series Pressure Calibrators Fluke 700G Series Pressure Test Gauge Fluke 3130-G2M Portable Pneumatic Pressure Calibrators Fluke 2700G Series Pressure Gauges Fluke Deadweight Testers
Model number 754 721/​721Ex 719Pro 719 718 717 700G 3130 2700G Dead-weight Testers
Application
Calibrating pressure transmitters (field) Ideal
Calibrating pressure transmitters (bench) Ideal
Calibrating HART Smart transmitters Ideal
Documenting pressure transmitter calibrations Ideal
Testing pressure switches in the field Ideal
Testing pressure switches on the bench Ideal
Documenting pressure switch tests Ideal
Testing pressure switches with live (voltage) contacts Ideal
Gas custody transfer computer tests Ideal
Verifying process pressure gauges (field) Ideal
Verifying process pressure gauges (bench) Ideal
Logging pressure measurements Ideal
Testing pressure devices using a reference gauge Ideal
Hydrostatic vessel testing Ideal
Leak testing (pressure measurement logging) Ideal
Pressure Calibration Selection Guide

REED R2300 Infrared Thermometer

This infrared thermometer features a 12:1 distance to spot ratio and is capable of measuring temperatures up to 752°F (400°C). The R2300 is an affordable non-contact measurement solution able to quickly and efficiently measure the temperature of hot, hazardous or hard-to reach objects from a safe distance.

Features

  • Built-in laser pointer identifies target area
  • User selectable °F or °C
  • 12:1 distance to spot size ratio
  • Digitally adjustable emissivity
  • Max and Min readings
  • Backlit display
  • High and low alarms
  • Low battery indication and auto shut off

REED R5200 Receptacle Tester

Features

  • Compact design
  • Detects most common 3-wire receptacle issues
  • LED indicators identify 5 wiring faults
  • Status indicator chart
  • CE and UL approved
  • Durable plastic housing

REED R5100 Non-Contact AC Voltage Detector

Features

  • Suitable for outlets or against insulated wire
  • Built-in flashlight
  • Double insulated housing for increased safety
  • Audible (buzzer) and visual (LED) indicators when voltage present
  • For use on 50/60Hz circuits
  • Pocket clip
  • Auto shut off

REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter

Features

  • Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
  • Measure voltage and current simultaneously on a large backlit LCD
  • Record data and and review trends with included software
  • Relative, Peak, Min/Max and data hold functions
  • Waterproof (IP67) double molded plastic housing

REED R5040 1000A AC/DC Clamp Meter

Features

  • Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature
  • 50000-count backlit LCD display and analog bargraph
  • Low battery and overrange indicators
  • Built-in non-contact voltage detector with LED indicator
  • True RMS AC measurements
  • Min/Max, display hold and relative mode
  • Diode test and continuity check functions
  • Durable double molded plastic housing

REED R5400 Line Splitter

Features

  • Enables user to measure AC current on a 2-wire or 3-wire power cord to 15A
  • Fits clamp jaw size 0.75" (19mm) and above
  • Plugging the power connector into the line splitter separates the hot/live conductor from the neutral (and ground)
  • Two measurement sensitivity positions (1X and 10X)
  • Voltage check function

REED R5600 Insulation Tester (Megohmmeter)

Features

  • Large backlit dual displays insulation resistance and test voltage simultaneously
  • 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ
  • Lock function and hanging strap for handfree operation
  • Lo Ω function for testing connections
  • Datahold function
  • Double molded plastic housing for added protection
  • Low battery indicator and auto shut off

Fluke 754-KIT5 Specifications

Measurement Accuracy
Voltage DC Range / Resolution: 100 mV, 3, 30, 300 V
1 Year: 0.02% + 0.005 mV, 0.02% + 0.00005, 0.02% + 0.0005, 0.05% + 0.05 V
2 Year: 0.03% + 0.005 mV, 0.03% + 0.00005, 0.03% + 0.0005, 0.07% + 0.05 V
Voltage AC Range / Resolution: 3.000 V (40 Hz to 500 Hz) / 0.001 V
1 Year: 0.5% + 0.002, 0.5% + 0.02, 0.5% + 0.2 V
2 Year: 1.0% + 0.004, 1.0% + 0.04, 1.0% + 0.2 V
Resistance Range / Resolution: 10, 100, Ω, 1, 10 kΩ
1 Year: 0.05% + 50, 0.05% + 50, 0.05% + 500 mΩ, 0.1% + 10 Ω
2 Year: 0.07% + 70, 0.07% + 70 mΩ, 0.07% + 0.5, 0.15% + 15 Ω
Frequency Range / Resolution: 1.00 to 110.00 / 0.01, 110.1 to 1100.0 Hz / 0.1 Hz, 1.101 to 11.000 / 0.001, 11.01 to 50.00 kHz / 0.01 kHz
2 Year: 0.05, 0.5 Hz, 0.0005, 0.05 kHz
Source Accuracy
Voltage DC Range / Resolution: 100 mV, 1, 15 V
1 Year: 0.01% + 0.005 mV, 0.01% + 0.00005, 0.01% + 0.0005 V
2 Year: 0.015% + 0.005 mV, 0.015% + 0.0005, 0.015% + 0.0005 V
Current DC Range / Resolution: 22.000 mA (source), Current sink (simulate)
1 Year: 0.01% + 0.003, 0.02% + 0.007 mA
2 Year: 0.02% + 0.003, 0.04% + 0.007 mA
Resistance Range / Resolution: 10, 100 Ω, 1, 10kΩ
1 Year: 0.01% + 10, 0.01% + 20 mΩ, 0.02% + 0.2, 0.02% + 3 Ω
2 Year: 0.015% + 15, 0.015% + 30 mΩ, 0.03% + 0.3, 0.03% + 5 Ω
Frequency Range / Resolution: 0.1 to 10.99, 0.01 to 10.99, 11.00 to 109.99, 110.0 to 1099.9 Hz, 1.100 to 21.999, 22.000 to 50 kHz
2 Year: 0.01, 0.01, 0.1, 0.1 Hz, 0.002, 0.005 kHz
Click here for complete specifications on the Fluke 754-KIT5

What is HART?

HART, the Highway Addressable Remote Transducer protocol, uses a 1200 baud Frequency Shift Keying (FSK) signal to superimpose digital information on the conventional 4-20 mA analog signal.

Why use the HART protocol?

HART is an industry standard developed to define the communications protocol between intelligent field devices and a control system, HART is the most widely used digital communication protocol in the process industry. More than five million HART field instruments are installed in more than 100,000 plants worldwide. The HART protocol:

  • Is supported by all of the major suppliers of process field instruments supported by the HART Communication Foundation, an industry-wide non-profit organization.
  • Preserves present control strategies.
  • Allows traditional 4-20 mA signals and digital communication to share the same two-wire loops.
  • Provides important information for installation and maintenance: Tag IDs, measured values, range and span data, product information and diagnostics.
  • Reduces operation costs by making it easier to manage and fully utilize "smart" instrument network

Fluke 754 HART Documenting Process Calibrator:
Get HART-ability

Process plants have taken advantage of smart transmitters, the need for a new generation of calibrators has emerged—calibrators that can communicate via industry standard digital protocols. This process calibrator combines HART communication capability in a documenting process calibrator to deliver an integrated communicating calibrator. This rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART instrumentation. This process calibrator offers:

  • Integrated HART communication functions, permitting you to monitor, control, and calibrate HART instrumentation.
  • Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 mS.
  • Li-ion battery with 4400 mA hour life and gas gauge.

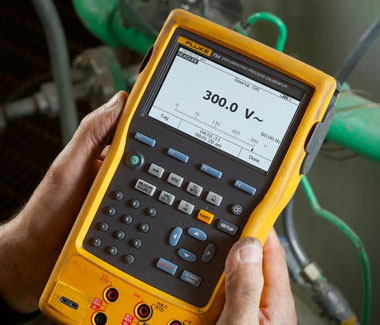

Fluke 754 Documenting Process Calibrator With HART Communication

The field calibrator for HART instruments that’s both powerful and easy to use.

This process calibrator offers the most complete HART implementation of any process calibrator. This process calibrator:

  • Requires no external box or second tool for everyday HART calibration and maintenance.
  • Offers fast HART communication.
  • Supports popular models of HART transmitters with device-specific command support.
  • Fully complies with the Data Link Layer of the HART protocol, including multiple masters, burst mode, and multi-drop configurations.
  • Is easy to update as additional instruments are added and new HART versions are released.
  • Is based on the 740 series calibrators, the most rugged, reliable multifunction field calibrators ever made.
  • Is backed by the service and support of the Fluke organization, a member of the HART Communications Foundation.

This process calibrator is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers many of the communication capabilities of the 475 HART communicator except for the DD interpreter, which can read command set libraries from any HART supplier. This is not necessary for daily HART maintenance.


How to calibrate a HART smart pressure transmitter

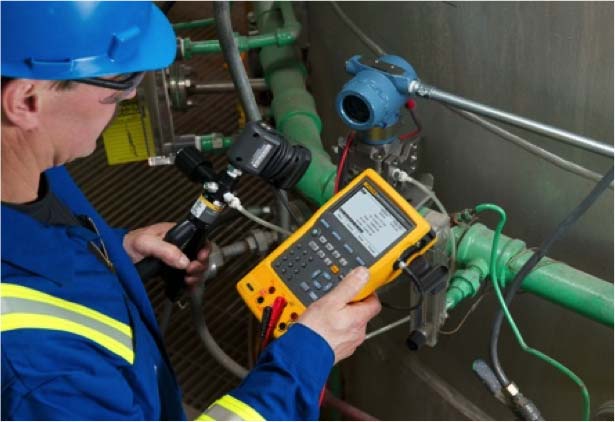

Calibrating a HART Smart Pressure Transmitter

Pressure transmitter manufacturers have improved the accuracy and technology designed into these smart pressure measurement devices. Many conventional calibration tools have become inadequate or simply unable to test and calibrate these high accuracy pressure transmitters. Better test solutions are required.

Verifying and documenting the performance and adjusting a HART smart pressure transmitter can require a bucket full of tools. Performing this task with a HART enabled calibrator like this process calibrator simplifies the task and reduces what you need to carry.

Before going to the field, install the pressure module adapter to the hand pump with thread seal. Once the adapter is properly installed on the pump, changing modules to different pressure ranges is a snap, no tools required.

To get the accuracy needed to test these new high accuracy transmitters, match the pressure measurement standard range closely to the device tested. For example, use a 100 psi pressure module to calibrate and test a transmitter ranged at 100 psi. Industry standards suggest the measurement standard should be 4-10 times more accurate than the device being tested, so best-in-class accuracy is required.

This Documenting Process Calibrator-HART utilizes the 750P series pressure module and has the HART functionality built in to enable smart trims on transmitters. It can also document transmitter performance before and after adjustment and calculate pass/fail errors.

To perform the test:

  1. Isolate the transmitter from the process being measure and its loop wiring. If measuring the mA signal across the transmitter test diode leave the wires intact, but note this method does not give the best mA measurement accuracy.
  2. Connect the mA measurement jacks of this process calibrator to the transmitter.
  3. Connect the pressure module cable to this process calibrator and connect the transmitter test hose from the hand pump to the transmitter.
  4. Press the HART button on the calibrator to see the configuration of the transmitter.
  5. Press HART again and the calibrator will offer the correct measure/source combination for the test. If documenting the calibration press As-Found, input the test tolerance and follow the prompts. If the measured mA signal at the test points is found within tolerance the test is complete. If not, adjustment is required.
  6. Select, adjust, and trim the pressure zero, mA output signal and input sensor.
  7. After adjustment select As-Left, document the condition of the transmitter and after adjustment and if the test passes, it is complete.

HART applications

Fluke 754: The HART calibrator that is easy to use.
Versatile HART protocol support

This process calibrator supports the commands contained in HART protocol version 5.7.
This process calibrator supports a substantial set of HART instructions:

  • Universal commands — provide functions that are implemented in all field devices, for example, read manufacturer and device type, read primary variable (PV), or read current output and percent of span
  • Common practice commands — provide functions that are common to many but not all field devices, for example read multiple variables, set damping time, or perform loop test
  • Device-specific commands — provide functions that are unique to a particular field device, for example sensor trim.

Today’s 754 supports device-specific instructions for a variety of popular instruments. Additional support may be added periodically with a simple software update available on diskette or via download for a modest upgrade fee.

Manufacturer Pressure Instruments Temperature Instruments Coriolis Instruments
ABB/Kent-Taylor 600T 658T1
ABB/Hartmann & Braun Contrans P1, AS 800 Series
Endress & Hauser CERABAR S, CERABAR M, DELTABAR S TMT 1221, TMT 1821, TMT 1621
Foxboro Eckardt TI/RTT201
Foxboro/Invensys I/A Pressure
Fuji FCX, FCXAZ FRC
Honeywell ST3000 STT25T1, STT25H1
Micro Motion 2000, 2000IS, 9701, 9712, 9739
Moore Products 3441
Rosemount 1151, 2088, 3001C, 3051, 3051S 3044C, 644, 3144, 3244, 3144P
Siemens SITRANS P DS
SMAR SITRANS P DS, SITRANS P ES
Viatran LD301 TT3011
Wika UNITRANS
Yokogawa EJA YTA 110, 310 and 320

1Sensor Trim not supported

Fluke 754 Documenting Process Calibrator

HART Operating Modes Supported

  • For Point to Point operation, the most commonly used mode, connects this process calibrator to a single HART device in a 4-20 mA loop.
  • In Multi-Drop mode, several HART instruments can be bussed together. This process calibrator searches for each, identifies addresses in use, and allows you to select the instrument for calibration and related operations.
  • In Burst Mode, the HART instrument transmits bursts of data without waiting to be interrogated by a master unit. This process calibrator can take transmitters out of burst mode during test or calibration, then later restore them to burst mode.

What's included with the Fluke 754-KIT5

  • Documenting Process Calibrator with HART Communication
  • NIST-Traceable Calibration Report and Data
  • DPCTrack 2™ Sample Software
  • 3 x Test Probes Sets with Three Sets of "Extended Tooth" Alligator Clips
  • 2 x Hook Clips
  • USB Communication Cable
  • HART Communications Cable
  • Carrying Case
  • Battery Charger
  • Battery Pack
  • Instruction Manual
  • Three Year Warranty

This Fluke 754-KIT5 Handheld Multi-Function Process Calibrator Kit Includes


Fluke 724 Temperature Calibrator

Fluke 754 Handheld Multi-Function Process Calibrators with HART Calibration

Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments. Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters.


REED R2300 Infrared Thermometer

REED R2300 Infrared Thermometer

Fast responding entry-level infrared thermometer with min/max temperature readings and adjustable high/low temperature alarms.


REED R5200 Receptacle Tester

REED R5200 Receptacle Tester

Test 3-wire receptacles for faulty wiring.


REED R5100 Non-Contact AC Voltage Detector with Flashlight

REED R5100 Non-Contact AC Voltage Detector with Flashlight

Durable double molded plastic housing.


REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter

REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter

Precise True RMS multimeter with 50,000 count backlit display and digital analog bargraph.


REED R5040 1000A AC/DC Clamp Meter with Temperature and Non-Contact Voltage Detector, True RMS

REED R5040 1000A AC/DC Clamp Meter with Temperature and Non-Contact Voltage Detector, True RMS

Durable AC/DC clamp meter with analog bargraph, min/max function, built-in non-contact voltage detector and contact thermometer.


REED R5400 Line Splitter

REED R5400 Line Splitter

Provides safe measurements of current without the need to separate conductors.


REED R5600 Insulation Tester (Megohmmeter)

REED R5600 Insulation Tester (Megohmmeter)

Multi-function insulation tester with backlit dual display, double molded plastic housing and lock function for hands-free operation.

Unboxing the Fluke 754 Documenting Process Calibrator


This video takes an inside look at what comes included with the documenting process calibrator. It does so many different tasks, so quickly and so well, it's the only process calibrator you need to carry.

How To Document a HART Smart Thermocouple with the Fluke 754 Documenting Process Calibrator


This video is a step by step tutorial on how to process documenting communications of a HART smart temperature meter with the documenting process calibrator. Additionally, this rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.

How To Use the HART Utilities In the Fluke-754 Documenting Process Calibrator


This video demonstrates how to connect, communicate and troubleshoot with the HART utilities of the documenting process calibrator. The calibrator supports Honeywell, Rosemount and many other popular HART transmitters with device-specific command support.

How To Measure Pressure, Temperature and Electrical Signals with the Fluke 754


This video is a step by step tutorial on how to set up your documenting process calibrator to source and measure for calibration and testing. The instrument calibrates temperature, pressure, voltage, current, resistance, and frequency. This instrument is capable of doing many different tasks at once, eliminating the need for any other.

How To Test and Measure Pressure Using the Fluke 754 Documenting Process Calibrator


This video is a step by step tutorial on how to test a pressure switch with the documenting process calibrator. The instrument calibrates temperature, pressure, voltage, current, resistance, and frequency. Since the calibrator both measures and sources, you can troubleshoot and calibrate all with one rugged tool.

How To Calibrate a Rosemount 3051 HART Smart Pressure Transmitter with the Fluke 754


This video will serve as a step by step tutorial on how to connect, test and trim a HART smart pressure transmitter to this documenting process calibrator. Additionally, this instrument is ideal for calibrating, maintaining and, troubleshooting hart instrumentation.

Testing an RTD Input Temperature Transmitter with The Fluke 754 Documenting Process Calibrator


In this video, the viewer will be walked through how to test an RTD input temperature transmitter using the Fluke 754. First the calibrator needs to be at the right settings then a simulation of an RTD input into the transmitter while simultaneously measuring the mA output signal. Press "Measure mA" then turn hit "Loop Power".↵The next step is figuring out the input to the transmitter. Press "RTD" and input a temperature then split the screen to document the calibration.

How to Perform a HART Calibration on a Fluke Documenting Process Calibrator


In this video, the viewer will learn how to communicate via HART protocol with the Fluke 754. The video will demonstrate a simple calibration with a transmitter. Power on the calibrator then press the "HART" button. An error message is normal since the device is trying to find a HART device. Press "Loop Power" and the calibrator will find a HART device and provide the use will all applicable parameters.

How To Connect, Download, View & Make Reports with The Fluke 754


In this video, the viewer will get a brief overview of how to perform a calibration, download the results via DCPTrack2 with the USB & and print out the calibration report using the Fluke 754 Documenting Process Calibrator. The DCPTrack2 lets you store and record your results in order to comply with many regulations.

How To Operate Special Troubleshooting and Testing Functions with the Fluke 754


This video will serve as a step-by-step tutorial on how to operate special troubleshooting and testing functions with this documenting process calibrator with HART communication. These include ramping the output, stepping the output, making min/max measurements, and logging measurements.

How To Test a Thermocouple Input with The Fluke 754


This video will show the user how to connect their documenting process calibrator with HART communication to a thermocouple transmitter, configure the calibrator for the test, and document its performance.

How to Test the Performance of Temperature Switch with the Fluke 754


In this video, the user will receive a step by step tutorial on how to use the documenting process calibrator with HART communication to test a temperature switch and a temperature controller. Additionally, it's capable of doing the work of several tools such as sourcing, simulating and measuring pressure, temperature, and electrical signals.

How To Test a RTD Input with The Fluke 754 Documenting Process Calibrator with HART Communication


This video is a step by step tutorial on how to connect the documenting process calibrator to a HART smart Rosemount temperature transmitter configured with an RTD input. Additionally, this instrument is ideal for calibrating, maintaining and, troubleshooting hart instrumentation.

How To Test an I/P Converter with the Fluke 754 Documenting Process Calibrator


This video will provide the user with a step by step tutorial on how to test an I/P converter with this documenting process calibrator. Additionally, this instrument comes in a rugged design and is ideal for calibrating, maintaining and, troubleshooting hart instrumentation.

How To Navigate the Fluke 754 Documenting Process Calibrator


This video will serve as a step by step tutorial on how to connect, test and trim a HART smart pressure transmitter to this documenting process calibrator. Additionally, this instrument is ideal for calibrating, maintaining and, troubleshooting hart instrumentation.

How To Upload and Download the DPCTrack2 Software on the Fluke 754 Documenting Process Calibrator


This video will serve as a walkthrough of the initial steps to upload and download the DPCTrack2 software on this documenting process calibrator. Additionally, the software enables the user to create procedures, instructions, and action lists.

How To Install the DPCTrack2 Software on your Computer


This video will provide the user with a step by step tutorial on how to install this software on their computer. Additionally, the software is compatible with a variety of Fluke documenting process calibrators.

How To Calibrate a Pressure Transmitter with the Fluke 754 Documenting Process Calibrator


In this video, the user will receive a step by step tutorial on how to verify the performance of a pressure transmitter using this documenting process calibrator. Additionally, it's capable of doing the work of several tools such as sourcing, simulating and measuring pressure, temperature, and electrical signals.

Click on a category to view a selection of compatible accessories with the Fluke 754-KIT5 Documenting Process Calibrator Kit, Includes FREE Products with Purchase.

Fluke 700HTH-1 Hydraulic Test Hose 700HTH-1
Hydraulic test hose 10,000 psi, 700 bar working pressure test hose that features stainless steel and nylon construction.




Fluke 80CJ-M type J Male Mini-Connectors 80CJ-M
Package of two male mini-connectors for use with Fluke 80TK or Fluke 50 Series.




Fluke AC220 SureGrip™ Alligator Clips AC220
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves. For use with TL222 and TL224 test leads.




Fluke TL940 Mini-Hook Test Lead Set TL940
30V RMS or 60V DC, and 15A.




Fluke C781 Meter Case C781
Zippered with detachable pouch.




Customer Reviews for the Fluke 754-KIT5

Ask a question about Fluke 754-KIT5 Documenting Process Calibrator Kit, Includes FREE Products with Purchase

The Fluke 754 Offers

Whether you're calibrating instruments, troubleshooting a problem, or running routine maintenance, this process calibrator can help you get the job done quicker. It's capable of doing many different tasks rapidly and well, it's the only calibrator you need to carry. Comes in a rugged design and is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.

This is a power multifunction documenting calibrator that you can use to download procedures, lists, and instructions created with software; or upload data for printing, archiving, and analysis. The powerful built-in HART interface is capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.

In fact, this documenting process calibrator does the work of several tools. It sources, simulates and measures pressure, temperature, and electrical signals with one rugged, hand-held device. For documentation, the 754 automates calibration procedures and captures your data. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations. Plus, the new improved graphical screen, Li-Ion battery for longer life, USB port, and accessories help you work smarter and faster.

To create a seamless/paperless calibration management system consider adding Fluke DPCTrack2 Calibration Management software.

Features

  • Full-featured documenting process calibrator with HART communication for calibrating and troubleshooting HART instrumentation
  • Measures volts, mA,TDs, thermocouples, frequency, and ohms to test sensors, transmitters and more
  • Sources/simulates volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Powers transmitters during test using loop supply with simultaneous mA measurement
  • Handles fast pulsed rtd transmitters and PLCs, with pulses as short as 1 ms
  • Creates and runs automated as-found/as-left procedures to satisfy quality programs or regulations, and records and documents results
  • Holds up to a full week of downloaded procedures and calibration results
  • Uses many features like autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more
  • Provides easy-to-use multi-lingual interface
  • Features a bright white dual display for reading both sourced and measured parameters simultaneously
  • Offers compatibility with many asset management software packages
  • Multifunctional
  • Powerful, yet easy to use
  • Records and documents results
  • Truly hand-held
  • Rugged and reliable
  • Bright white display
  • Soft keys
  • Three operating modes
  • Multi-lingual interface
  • Built-in algebraic calculator
  • Programmable measurement delay

Pressure Modules

Covers virtually any pressure application including gauge, differential, dual (compound), absolute, and vacuum.

  • Display pressure readings in any of 10 different pressure units you specify in the calibrator setup.
  • Rugged urethane molded cases protect the modules from rough handling and harsh conditions.
  • Features internal temperature compensation from 0 to 50°C for full accuracy performance.
  • Includes NIST-traceable calibration certificate.
  • Modules can be calibrated locally, helping to control costs.

A family of 29 optional pressure modules provides pressure calibration and measurement capabilities. Twenty-eight modules are available, with basic accuracy specs to 0.05%. Ranges start at 0 to 1 in H20 (0 to .25 kPa) and go to 0 to 10,000 psi (0 to 70,000 kPa). Additional information about pressure modules is available on the Pressure Modules Home Page.

Application Selection Guide

Fluke 754 Documenting Process Calibrator with HART communication Fluke 721 Dual Sensor Pressure Calibrators Fluke 719PRO Electric Pressure Calibrators Fluke 719 Pressure Calibrator Fluke 718 Series Pressure Calibrators Fluke 717 Series Pressure Calibrators Fluke 700G Series Pressure Test Gauge Fluke 3130-G2M Portable Pneumatic Pressure Calibrators Fluke 2700G Series Pressure Gauges Fluke Deadweight Testers
Model number 754 721/​721Ex 719Pro 719 718 717 700G 3130 2700G Dead-weight Testers
Application
Calibrating pressure transmitters (field) Ideal
Calibrating pressure transmitters (bench) Ideal
Calibrating HART Smart transmitters Ideal
Documenting pressure transmitter calibrations Ideal
Testing pressure switches in the field Ideal
Testing pressure switches on the bench Ideal
Documenting pressure switch tests Ideal
Testing pressure switches with live (voltage) contacts Ideal
Gas custody transfer computer tests Ideal
Verifying process pressure gauges (field) Ideal
Verifying process pressure gauges (bench) Ideal
Logging pressure measurements Ideal
Testing pressure devices using a reference gauge Ideal
Hydrostatic vessel testing Ideal
Leak testing (pressure measurement logging) Ideal
Pressure Calibration Selection Guide

REED R2300 Infrared Thermometer

This infrared thermometer features a 12:1 distance to spot ratio and is capable of measuring temperatures up to 752°F (400°C). The R2300 is an affordable non-contact measurement solution able to quickly and efficiently measure the temperature of hot, hazardous or hard-to reach objects from a safe distance.

Features

  • Built-in laser pointer identifies target area
  • User selectable °F or °C
  • 12:1 distance to spot size ratio
  • Digitally adjustable emissivity
  • Max and Min readings
  • Backlit display
  • High and low alarms
  • Low battery indication and auto shut off

REED R5200 Receptacle Tester

Features

  • Compact design
  • Detects most common 3-wire receptacle issues
  • LED indicators identify 5 wiring faults
  • Status indicator chart
  • CE and UL approved
  • Durable plastic housing

REED R5100 Non-Contact AC Voltage Detector

Features

  • Suitable for outlets or against insulated wire
  • Built-in flashlight
  • Double insulated housing for increased safety
  • Audible (buzzer) and visual (LED) indicators when voltage present
  • For use on 50/60Hz circuits
  • Pocket clip
  • Auto shut off

REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter

Features

  • Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
  • Measure voltage and current simultaneously on a large backlit LCD
  • Record data and and review trends with included software
  • Relative, Peak, Min/Max and data hold functions
  • Waterproof (IP67) double molded plastic housing

REED R5040 1000A AC/DC Clamp Meter

Features

  • Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature
  • 50000-count backlit LCD display and analog bargraph
  • Low battery and overrange indicators
  • Built-in non-contact voltage detector with LED indicator
  • True RMS AC measurements
  • Min/Max, display hold and relative mode
  • Diode test and continuity check functions
  • Durable double molded plastic housing

REED R5400 Line Splitter

Features

  • Enables user to measure AC current on a 2-wire or 3-wire power cord to 15A
  • Fits clamp jaw size 0.75" (19mm) and above
  • Plugging the power connector into the line splitter separates the hot/live conductor from the neutral (and ground)
  • Two measurement sensitivity positions (1X and 10X)
  • Voltage check function

REED R5600 Insulation Tester (Megohmmeter)

Features

  • Large backlit dual displays insulation resistance and test voltage simultaneously
  • 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ
  • Lock function and hanging strap for handfree operation
  • Lo Ω function for testing connections
  • Datahold function
  • Double molded plastic housing for added protection
  • Low battery indicator and auto shut off

Fluke 754-KIT5 Specifications

Measurement Accuracy
Voltage DC Range / Resolution: 100 mV, 3, 30, 300 V
1 Year: 0.02% + 0.005 mV, 0.02% + 0.00005, 0.02% + 0.0005, 0.05% + 0.05 V
2 Year: 0.03% + 0.005 mV, 0.03% + 0.00005, 0.03% + 0.0005, 0.07% + 0.05 V
Voltage AC Range / Resolution: 3.000 V (40 Hz to 500 Hz) / 0.001 V
1 Year: 0.5% + 0.002, 0.5% + 0.02, 0.5% + 0.2 V
2 Year: 1.0% + 0.004, 1.0% + 0.04, 1.0% + 0.2 V
Resistance Range / Resolution: 10, 100, Ω, 1, 10 kΩ
1 Year: 0.05% + 50, 0.05% + 50, 0.05% + 500 mΩ, 0.1% + 10 Ω
2 Year: 0.07% + 70, 0.07% + 70 mΩ, 0.07% + 0.5, 0.15% + 15 Ω
Frequency Range / Resolution: 1.00 to 110.00 / 0.01, 110.1 to 1100.0 Hz / 0.1 Hz, 1.101 to 11.000 / 0.001, 11.01 to 50.00 kHz / 0.01 kHz
2 Year: 0.05, 0.5 Hz, 0.0005, 0.05 kHz
Source Accuracy
Voltage DC Range / Resolution: 100 mV, 1, 15 V
1 Year: 0.01% + 0.005 mV, 0.01% + 0.00005, 0.01% + 0.0005 V
2 Year: 0.015% + 0.005 mV, 0.015% + 0.0005, 0.015% + 0.0005 V
Current DC Range / Resolution: 22.000 mA (source), Current sink (simulate)
1 Year: 0.01% + 0.003, 0.02% + 0.007 mA
2 Year: 0.02% + 0.003, 0.04% + 0.007 mA
Resistance Range / Resolution: 10, 100 Ω, 1, 10kΩ
1 Year: 0.01% + 10, 0.01% + 20 mΩ, 0.02% + 0.2, 0.02% + 3 Ω
2 Year: 0.015% + 15, 0.015% + 30 mΩ, 0.03% + 0.3, 0.03% + 5 Ω
Frequency Range / Resolution: 0.1 to 10.99, 0.01 to 10.99, 11.00 to 109.99, 110.0 to 1099.9 Hz, 1.100 to 21.999, 22.000 to 50 kHz
2 Year: 0.01, 0.01, 0.1, 0.1 Hz, 0.002, 0.005 kHz
Click here for complete specifications on the Fluke 754-KIT5

What is HART?

HART, the Highway Addressable Remote Transducer protocol, uses a 1200 baud Frequency Shift Keying (FSK) signal to superimpose digital information on the conventional 4-20 mA analog signal.

Why use the HART protocol?

HART is an industry standard developed to define the communications protocol between intelligent field devices and a control system, HART is the most widely used digital communication protocol in the process industry. More than five million HART field instruments are installed in more than 100,000 plants worldwide. The HART protocol:

  • Is supported by all of the major suppliers of process field instruments supported by the HART Communication Foundation, an industry-wide non-profit organization.
  • Preserves present control strategies.
  • Allows traditional 4-20 mA signals and digital communication to share the same two-wire loops.
  • Provides important information for installation and maintenance: Tag IDs, measured values, range and span data, product information and diagnostics.
  • Reduces operation costs by making it easier to manage and fully utilize "smart" instrument network

Fluke 754 HART Documenting Process Calibrator:
Get HART-ability

Process plants have taken advantage of smart transmitters, the need for a new generation of calibrators has emerged—calibrators that can communicate via industry standard digital protocols. This process calibrator combines HART communication capability in a documenting process calibrator to deliver an integrated communicating calibrator. This rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART instrumentation. This process calibrator offers:

  • Integrated HART communication functions, permitting you to monitor, control, and calibrate HART instrumentation.
  • Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 mS.
  • Li-ion battery with 4400 mA hour life and gas gauge.
Fluke 754 Documenting Process Calibrator With HART Communication

The field calibrator for HART instruments that’s both powerful and easy to use.

This process calibrator offers the most complete HART implementation of any process calibrator. This process calibrator:

  • Requires no external box or second tool for everyday HART calibration and maintenance.
  • Offers fast HART communication.
  • Supports popular models of HART transmitters with device-specific command support.
  • Fully complies with the Data Link Layer of the HART protocol, including multiple masters, burst mode, and multi-drop configurations.
  • Is easy to update as additional instruments are added and new HART versions are released.
  • Is based on the 740 series calibrators, the most rugged, reliable multifunction field calibrators ever made.
  • Is backed by the service and support of the Fluke organization, a member of the HART Communications Foundation.

This process calibrator is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers many of the communication capabilities of the 475 HART communicator except for the DD interpreter, which can read command set libraries from any HART supplier. This is not necessary for daily HART maintenance.


How to calibrate a HART smart pressure transmitter

Calibrating a HART Smart Pressure Transmitter

Pressure transmitter manufacturers have improved the accuracy and technology designed into these smart pressure measurement devices. Many conventional calibration tools have become inadequate or simply unable to test and calibrate these high accuracy pressure transmitters. Better test solutions are required.

Verifying and documenting the performance and adjusting a HART smart pressure transmitter can require a bucket full of tools. Performing this task with a HART enabled calibrator like this process calibrator simplifies the task and reduces what you need to carry.

Before going to the field, install the pressure module adapter to the hand pump with thread seal. Once the adapter is properly installed on the pump, changing modules to different pressure ranges is a snap, no tools required.

To get the accuracy needed to test these new high accuracy transmitters, match the pressure measurement standard range closely to the device tested. For example, use a 100 psi pressure module to calibrate and test a transmitter ranged at 100 psi. Industry standards suggest the measurement standard should be 4-10 times more accurate than the device being tested, so best-in-class accuracy is required.

This Documenting Process Calibrator-HART utilizes the 750P series pressure module and has the HART functionality built in to enable smart trims on transmitters. It can also document transmitter performance before and after adjustment and calculate pass/fail errors.

To perform the test:

  1. Isolate the transmitter from the process being measure and its loop wiring. If measuring the mA signal across the transmitter test diode leave the wires intact, but note this method does not give the best mA measurement accuracy.
  2. Connect the mA measurement jacks of this process calibrator to the transmitter.
  3. Connect the pressure module cable to this process calibrator and connect the transmitter test hose from the hand pump to the transmitter.
  4. Press the HART button on the calibrator to see the configuration of the transmitter.
  5. Press HART again and the calibrator will offer the correct measure/source combination for the test. If documenting the calibration press As-Found, input the test tolerance and follow the prompts. If the measured mA signal at the test points is found within tolerance the test is complete. If not, adjustment is required.
  6. Select, adjust, and trim the pressure zero, mA output signal and input sensor.
  7. After adjustment select As-Left, document the condition of the transmitter and after adjustment and if the test passes, it is complete.

HART applications

Fluke 754: The HART calibrator that is easy to use.
Versatile HART protocol support

This process calibrator supports the commands contained in HART protocol version 5.7.
This process calibrator supports a substantial set of HART instructions:

  • Universal commands — provide functions that are implemented in all field devices, for example, read manufacturer and device type, read primary variable (PV), or read current output and percent of span
  • Common practice commands — provide functions that are common to many but not all field devices, for example read multiple variables, set damping time, or perform loop test
  • Device-specific commands — provide functions that are unique to a particular field device, for example sensor trim.

Today’s 754 supports device-specific instructions for a variety of popular instruments. Additional support may be added periodically with a simple software update available on diskette or via download for a modest upgrade fee.

Manufacturer Pressure Instruments Temperature Instruments Coriolis Instruments
ABB/Kent-Taylor 600T 658T1
ABB/Hartmann & Braun Contrans P1, AS 800 Series
Endress & Hauser CERABAR S, CERABAR M, DELTABAR S TMT 1221, TMT 1821, TMT 1621
Foxboro Eckardt TI/RTT201
Foxboro/Invensys I/A Pressure
Fuji FCX, FCXAZ FRC
Honeywell ST3000 STT25T1, STT25H1
Micro Motion 2000, 2000IS, 9701, 9712, 9739
Moore Products 3441
Rosemount 1151, 2088, 3001C, 3051, 3051S 3044C, 644, 3144, 3244, 3144P
Siemens SITRANS P DS
SMAR SITRANS P DS, SITRANS P ES
Viatran LD301 TT3011
Wika UNITRANS
Yokogawa EJA YTA 110, 310 and 320

1Sensor Trim not supported

Fluke 754 Documenting Process Calibrator

HART Operating Modes Supported

  • For Point to Point operation, the most commonly used mode, connects this process calibrator to a single HART device in a 4-20 mA loop.
  • In Multi-Drop mode, several HART instruments can be bussed together. This process calibrator searches for each, identifies addresses in use, and allows you to select the instrument for calibration and related operations.
  • In Burst Mode, the HART instrument transmits bursts of data without waiting to be interrogated by a master unit. This process calibrator can take transmitters out of burst mode during test or calibration, then later restore them to burst mode.

What's included with the Fluke 754-KIT5

  • Documenting Process Calibrator with HART Communication
  • NIST-Traceable Calibration Report and Data
  • DPCTrack 2™ Sample Software
  • 3 x Test Probes Sets with Three Sets of "Extended Tooth" Alligator Clips
  • 2 x Hook Clips
  • USB Communication Cable
  • HART Communications Cable
  • Carrying Case
  • Battery Charger
  • Battery Pack
  • Instruction Manual
  • Three Year Warranty

This Fluke 754-KIT5 Handheld Multi-Function Process Calibrator Kit Includes


Fluke 724 Temperature Calibrator

Fluke 754 Handheld Multi-Function Process Calibrators with HART Calibration

Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments. Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters.


REED R2300 Infrared Thermometer

REED R2300 Infrared Thermometer

Fast responding entry-level infrared thermometer with min/max temperature readings and adjustable high/low temperature alarms.


REED R5200 Receptacle Tester

REED R5200 Receptacle Tester

Test 3-wire receptacles for faulty wiring.


REED R5100 Non-Contact AC Voltage Detector with Flashlight

REED R5100 Non-Contact AC Voltage Detector with Flashlight

Durable double molded plastic housing.


REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter

REED R5005 True RMS Bluetooth/Waterproof Industrial Multimeter

Precise True RMS multimeter with 50,000 count backlit display and digital analog bargraph.


REED R5040 1000A AC/DC Clamp Meter with Temperature and Non-Contact Voltage Detector, True RMS

REED R5040 1000A AC/DC Clamp Meter with Temperature and Non-Contact Voltage Detector, True RMS

Durable AC/DC clamp meter with analog bargraph, min/max function, built-in non-contact voltage detector and contact thermometer.


REED R5400 Line Splitter

REED R5400 Line Splitter

Provides safe measurements of current without the need to separate conductors.


REED R5600 Insulation Tester (Megohmmeter)

REED R5600 Insulation Tester (Megohmmeter)

Multi-function insulation tester with backlit dual display, double molded plastic housing and lock function for hands-free operation.

Unboxing the Fluke 754 Documenting Process Calibrator


This video takes an inside look at what comes included with the documenting process calibrator. It does so many different tasks, so quickly and so well, it's the only process calibrator you need to carry.

How To Document a HART Smart Thermocouple with the Fluke 754 Documenting Process Calibrator


This video is a step by step tutorial on how to process documenting communications of a HART smart temperature meter with the documenting process calibrator. Additionally, this rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.

How To Use the HART Utilities In the Fluke-754 Documenting Process Calibrator


This video demonstrates how to connect, communicate and troubleshoot with the HART utilities of the documenting process calibrator. The calibrator supports Honeywell, Rosemount and many other popular HART transmitters with device-specific command support.

How To Measure Pressure, Temperature and Electrical Signals with the Fluke 754


This video is a step by step tutorial on how to set up your documenting process calibrator to source and measure for calibration and testing. The instrument calibrates temperature, pressure, voltage, current, resistance, and frequency. This instrument is capable of doing many different tasks at once, eliminating the need for any other.

How To Test and Measure Pressure Using the Fluke 754 Documenting Process Calibrator


This video is a step by step tutorial on how to test a pressure switch with the documenting process calibrator. The instrument calibrates temperature, pressure, voltage, current, resistance, and frequency. Since the calibrator both measures and sources, you can troubleshoot and calibrate all with one rugged tool.

How To Calibrate a Rosemount 3051 HART Smart Pressure Transmitter with the Fluke 754


This video will serve as a step by step tutorial on how to connect, test and trim a HART smart pressure transmitter to this documenting process calibrator. Additionally, this instrument is ideal for calibrating, maintaining and, troubleshooting hart instrumentation.

Testing an RTD Input Temperature Transmitter with The Fluke 754 Documenting Process Calibrator


In this video, the viewer will be walked through how to test an RTD input temperature transmitter using the Fluke 754. First the calibrator needs to be at the right settings then a simulation of an RTD input into the transmitter while simultaneously measuring the mA output signal. Press "Measure mA" then turn hit "Loop Power".↵The next step is figuring out the input to the transmitter. Press "RTD" and input a temperature then split the screen to document the calibration.

How to Perform a HART Calibration on a Fluke Documenting Process Calibrator


In this video, the viewer will learn how to communicate via HART protocol with the Fluke 754. The video will demonstrate a simple calibration with a transmitter. Power on the calibrator then press the "HART" button. An error message is normal since the device is trying to find a HART device. Press "Loop Power" and the calibrator will find a HART device and provide the use will all applicable parameters.

How To Connect, Download, View & Make Reports with The Fluke 754


In this video, the viewer will get a brief overview of how to perform a calibration, download the results via DCPTrack2 with the USB & and print out the calibration report using the Fluke 754 Documenting Process Calibrator. The DCPTrack2 lets you store and record your results in order to comply with many regulations.

How To Operate Special Troubleshooting and Testing Functions with the Fluke 754


This video will serve as a step-by-step tutorial on how to operate special troubleshooting and testing functions with this documenting process calibrator with HART communication. These include ramping the output, stepping the output, making min/max measurements, and logging measurements.

How To Test a Thermocouple Input with The Fluke 754


This video will show the user how to connect their documenting process calibrator with HART communication to a thermocouple transmitter, configure the calibrator for the test, and document its performance.

How to Test the Performance of Temperature Switch with the Fluke 754


In this video, the user will receive a step by step tutorial on how to use the documenting process calibrator with HART communication to test a temperature switch and a temperature controller. Additionally, it's capable of doing the work of several tools such as sourcing, simulating and measuring pressure, temperature, and electrical signals.

How To Test a RTD Input with The Fluke 754 Documenting Process Calibrator with HART Communication


This video is a step by step tutorial on how to connect the documenting process calibrator to a HART smart Rosemount temperature transmitter configured with an RTD input. Additionally, this instrument is ideal for calibrating, maintaining and, troubleshooting hart instrumentation.

How To Test an I/P Converter with the Fluke 754 Documenting Process Calibrator


This video will provide the user with a step by step tutorial on how to test an I/P converter with this documenting process calibrator. Additionally, this instrument comes in a rugged design and is ideal for calibrating, maintaining and, troubleshooting hart instrumentation.

How To Navigate the Fluke 754 Documenting Process Calibrator


This video will serve as a step by step tutorial on how to connect, test and trim a HART smart pressure transmitter to this documenting process calibrator. Additionally, this instrument is ideal for calibrating, maintaining and, troubleshooting hart instrumentation.

How To Upload and Download the DPCTrack2 Software on the Fluke 754 Documenting Process Calibrator


This video will serve as a walkthrough of the initial steps to upload and download the DPCTrack2 software on this documenting process calibrator. Additionally, the software enables the user to create procedures, instructions, and action lists.

How To Install the DPCTrack2 Software on your Computer


This video will provide the user with a step by step tutorial on how to install this software on their computer. Additionally, the software is compatible with a variety of Fluke documenting process calibrators.

How To Calibrate a Pressure Transmitter with the Fluke 754 Documenting Process Calibrator


In this video, the user will receive a step by step tutorial on how to verify the performance of a pressure transmitter using this documenting process calibrator. Additionally, it's capable of doing the work of several tools such as sourcing, simulating and measuring pressure, temperature, and electrical signals.

Click on a category to view a selection of compatible accessories with the Fluke 754-KIT5 Documenting Process Calibrator Kit, Includes FREE Products with Purchase.

Fluke 700HTH-1 Hydraulic Test Hose 700HTH-1
Hydraulic test hose 10,000 psi, 700 bar working pressure test hose that features stainless steel and nylon construction.




Fluke 80CJ-M type J Male Mini-Connectors 80CJ-M
Package of two male mini-connectors for use with Fluke 80TK or Fluke 50 Series.




Fluke AC220 SureGrip™ Alligator Clips AC220
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves. For use with TL222 and TL224 test leads.




Fluke TL940 Mini-Hook Test Lead Set TL940
30V RMS or 60V DC, and 15A.




Fluke C781 Meter Case C781
Zippered with detachable pouch.




Ask a question about Fluke 754-KIT5 Documenting Process Calibrator Kit, Includes FREE Products with Purchase

Customer Reviews for the Fluke 754-KIT5

More Fluke Products
