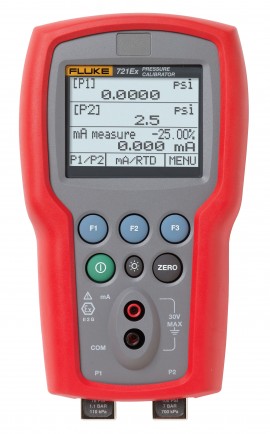

Fluke 721EX-3603 Dual Sensor Pressure Calibrator, 36 PSIG/300 PSIG

Model: 721EX-3603 | UPC: 095969673891

Fluke 721EX-3603 Dual Sensor Pressure Calibrator, 36 PSIG/300 PSIG-


Downloads: datasheet manual

Fluke 721EX-3603 Dual Sensor Pressure Calibrator, 36 PSIG/300 PSIG

Model: 721EX-3603

Ideal for gas flow calibration (custody transfer) applications allowing you to take simultaneous static and differential pressure measurements with a single tool. Intrinsically Safe - IECEx and Atex Ex ia IIB T3 Gb (Zone 1). Features a 36 psig/1000 psig pressure range.

Ideal for gas flow calibration (custody transfer) applications allowing you to take simultaneous static and differential pressure measurements with a single tool. Intrinsically Safe - IECEx and Atex Ex ia IIB T3 Gb (Zone 1). Features a 36 psig/1000 psig pressure range.

Your Price $3986.00 CAD
Availability 2 to 3 Weeks
Quantity

Add In-House ISO Certified Calibration to your 721EX-3603

Add In-House ISO Certified Calibration to your 721EX-3603


Recommended Accessories


Fluke 721EX Series Offers

Features

  • Can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar)
  • Two isolated, stainless steel, pressure sensors with 0.025% accuracy
  • Switch test on both pressure inputs
  • Pressure displayed in the user's choice of 19 engineering units: psi, bar, mbar, kPa, kgcm2, cmH2O @ 4°C, cmH2O @ 20°C, mH2O @ 4°C, mH2O @ 20°C, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F
  • Precision temperature measurement with optional RTD probe
  • Measures 4 to 20 mA signals
  • Large backlit graphic display shows up to three inputs simultaneously
  • Store five instrument setups for recall and use

Application Selection Guide

Fluke 754 Documenting Process Calibrator with HART communication Fluke 721 Dual Sensor Pressure Calibrators Fluke 719PRO Electric Pressure Calibrators Fluke 719 Pressure Calibrator Fluke 718 Series Pressure Calibrators Fluke 717 Series Pressure Calibrators Fluke 700G Series Pressure Test Gauge Fluke 3130-G2M Portable Pneumatic Pressure Calibrators Fluke 2700G Series Pressure Gauges Fluke Deadweight Testers
Model number 754 721/​721Ex 719Pro 719 718 717 700G 3130 2700G Dead-weight Testers
Application
Calibrating pressure transmitters (field) Ideal
Calibrating pressure transmitters (bench) Ideal
Calibrating HART Smart transmitters Ideal
Documenting pressure transmitter calibrations Ideal
Testing pressure switches in the field Ideal
Testing pressure switches on the bench Ideal
Documenting pressure switch tests Ideal
Testing pressure switches with live (voltage) contacts Ideal
Gas custody transfer computer tests Ideal
Verifying process pressure gauges (field) Ideal
Verifying process pressure gauges (bench) Ideal
Logging pressure measurements Ideal
Testing pressure devices using a reference gauge Ideal
Hydrostatic vessel testing Ideal
Leak testing (pressure measurement logging) Ideal
Pressure Calibration Selection Guide

Fluke 721EX Series Specifications

Pressure Range Available from 16 to 36 psi (1.1 to 2.48 bar) with 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar)
Resolution 0.001 psi (0.0001 bar)
Accuracy ±0.025% f.s.
Current Range 0 to 24mA
Resolution 0.001mA
Accuracy ±0.015% of rdg ±0.02 ohms; ±0.1°C (±0.2°F)
±0.25°C (±0.45°F) combined uncertainty when using 720 RTD probe accessory
Loop Supply Range 24V
Temperature Range -40 to 150°C (-40 to 302°F)
Connectors/Ports Two, 1/8" NPT, 750P Series Pressure Module
RTD Probe
Power Supply (4) standard AA batteries
Dimensions 7.9 x 4.3 x 2.3 (20 x 11 x 5.8 cm)
Weight 035 kg (1 lb 3 oz)
Click here for complete specifications on the Fluke 721EX-3603

What's included with the Fluke 721EX Series

  • 721EX-1601 Dual Sensor Pressure Calibrator
  • Test leads
  • 4 AA batteries
  • Manual
  • Calibration certificate
  • Soft case

Click on a category to view a selection of compatible accessories with the Fluke 721EX-3603 Dual Sensor Pressure Calibrator, 36 PSIG/300 PSIG.

Fluke 720RTD Probe 720RTD
RTD probe for use with Fluke 721 and 719Pro.




Fluke 720URTDA Universal RTD adapter 720URTDA
For use with the Fluke 719 and 721.
