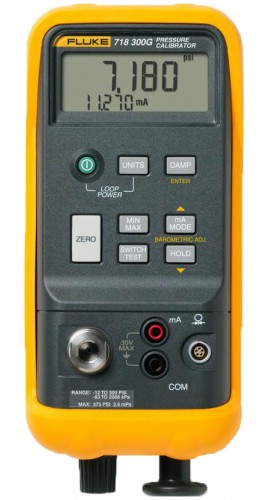

Fluke 718-300G Pressure Calibrator, 12 PSI to 300 PSI

Model: 718-300G | UPC: 095969327657

Downloads: datasheet

Fluke 718-300G Pressure Calibrator, 12 PSI to 300 PSI

Model: 718-300G

Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device. Integrated pump is easily cleaned when accidentally exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field.

Your Price	$5472.59 CAD
Availability	3 in Stock
Quantity	Quantity

Traceable Calibration Certificate for your 718-300G Pressure Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG4) for only $415.00 CAD

Traceable Calibration Certificate for your 718-300G Pressure Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG4) for only $415.00 CAD

Recommended Accessories

Fluke i1010 AC/DC Current Clamp

I1010

Fluke AC285 SureGrip Alligator Clips

AC285

Fluke TL80A Basic Electronic Test Lead Set

TL80A

Fluke TL40 Retractable Tip Test Lead Set

TL40

Fluke 718-300G Offers

Features

Error % calculation for quicker pass/fail decision making in the field
Best in class mA accuracy of 0.015 % for better measurement confidence and workload coverage
Min/Max/Hold to capture changing measurements
Switch test feature for quicker and more accurate pressure switch testing
New 1 and 300 PSI pressure ranges mean fewer extra tools required
1, 30, 100 & 300 PSI ranges now available

Applications

Petro-Chemical
Oil and Gas
Food and Beverage
Pharmaceutical
Test and Measurement
Instrumentation

Application Selection Guide


Model number	754	721/721Ex	719Pro	719	718	717	700G	3130	2700G	Dead-weight Testers
Application
Calibrating pressure transmitters (field)	●	●	Ideal	●	●	●		●
Calibrating pressure transmitters (bench)	●	●	●	●	●	●		Ideal		●
Calibrating HART Smart transmitters	Ideal
Documenting pressure transmitter calibrations	Ideal
Testing pressure switches in the field	Ideal	●	●	●	●	●		●
Testing pressure switches on the bench	●	●	●	●	●	●		Ideal
Documenting pressure switch tests	Ideal
Testing pressure switches with live (voltage) contacts	Ideal
Gas custody transfer computer tests	●	Ideal	●
Verifying process pressure gauges (field)	Ideal	●	●	●	●	●	●
Verifying process pressure gauges (bench)	●	●	●	●	●	●		●	●	Ideal
Logging pressure measurements	●						Ideal		●
Testing pressure devices using a reference gauge									Ideal
Hydrostatic vessel testing							Ideal
Leak testing (pressure measurement logging)	●						Ideal

Pressure Calibration Selection Guide

Fluke 718-300G Specifications

Range	-12 PSI to 300 PSI, (-850 mbar to 20.68 bar, -85 to 2068.42 kPa)
Resolution	0.01 psi, 1 mbar
Over Pressure	Over Pressure 375 PSI 25 bar
Functions	Zero, Min, Max, Hold, Damp
Battery Type	6 AA Alkaline batteries, NEDA 15A IEC LR6
Battery Life	100 hours minimum. 200 hours in Logging mode
Operating Temp.	-20 �C to 55 �C
Storage Temp.	-40 �C to 60 �C
Operating Altitude	3000 m
Storage Altitude	10000 m
Shock	1 meter drop per IEC/EN 61010-1 2nd Edition
Size	8.75 in x 4.03 in x 2.38 in (22.2 cm x 10.2 cm x 6.0 cm)
Weight	28.0 oz (871 g)

Click here for complete specifications on the Fluke 718-300G

What's included with the Fluke 718-300G

Fluke 718-300G Pressure Calibrator
TL75 Test Leads
AC72 Test Clips
CD Users Manuals

Brochure Pressure Calibration Selection Guide datasheet for the Fluke 718-300G Pressure Calibrator, 12 PSI to 300 PSI
