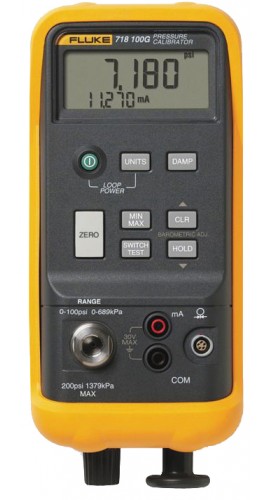

Fluke 718-100US Pressure Calibrator with Pressure Vacuum Pump, -12 to 100 PSI

Model: 718-100US | UPC: 095969062091

Downloads: datasheet manual

Fluke 718-100US Pressure Calibrator with Pressure Vacuum Pump, -12 to 100 PSI

Model: 718-100US

Take pressure source and milliamp measurements to calibrate and maintain almost any pressure device.

Your Price	$5472.59 CAD
Availability	2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 718-100US Pressure Calibrator with Pressure Vacuum Pump

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG4) for only $415.00 CAD

Traceable Calibration Certificate for your 718-100US Pressure Calibrator with Pressure Vacuum Pump

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG4) for only $415.00 CAD

Recommended Accessories

Fluke AC280 SureGrip Hook Clips

AC280

Fluke TL238 SureGrip Test Lead Set for High Energy Environments

TL238

Fluke TP4 Slim Reach Test Probe Set

TP4

Fluke i410 AC/DC Current Clamp

I410

Fluke 718-100US Offers

Fluke 718-100G Pressure Calibrator is a compact, lightweight and easy to carry calibrator that delivers outstanding performance, durability and reliability. The Fluke 718 Calibrator is EMI tolerant, dust and splash resistant and features a removable battery door for quick battery changes.

This meter provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.

The 718 presents cost-effective solutions for highly accurate pressure measurements over a wide range of temperatures. Connect it with any of the Fluke pressure modules to address a wide variety of gauge, differential, absolute, vacuum and dual (compound) pressure applications.

The Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.

Features

Error % calculation for quicker pass/fail decision making in the field
Best in class mA accuracy of 0.015 % for better measurement confidence and workload coverage
Min/Max/Hold to capture changing measurements
Switch test feature for quicker and more accurate pressure switch testing
New 1 and 300 PSI pressure ranges mean fewer extra tools required
1, 30, 100 & 300 PSI ranges now available

Applications

Pressure Instrument Calibration
Pressure Instrument Maintenance
Petro-Chemical
Oil and Gas
Pharmaceutical
Water and Wastewater
Food and Beverage
Power Generation

Application Selection Guide


Model number	754	721/721Ex	719Pro	719	718	717	700G	3130	2700G	Dead-weight Testers
Application
Calibrating pressure transmitters (field)	●	●	Ideal	●	●	●		●
Calibrating pressure transmitters (bench)	●	●	●	●	●	●		Ideal		●
Calibrating HART Smart transmitters	Ideal
Documenting pressure transmitter calibrations	Ideal
Testing pressure switches in the field	Ideal	●	●	●	●	●		●
Testing pressure switches on the bench	●	●	●	●	●	●		Ideal
Documenting pressure switch tests	Ideal
Testing pressure switches with live (voltage) contacts	Ideal
Gas custody transfer computer tests	●	Ideal	●
Verifying process pressure gauges (field)	Ideal	●	●	●	●	●	●
Verifying process pressure gauges (bench)	●	●	●	●	●	●		●	●	Ideal
Logging pressure measurements	●						Ideal		●
Testing pressure devices using a reference gauge									Ideal
Hydrostatic vessel testing							Ideal
Leak testing (pressure measurement logging)	●						Ideal

Pressure Calibration Selection Guide

Fluke 718-100US Specifications

Range	-12 to 100 PSI, -850 mbar to 7 bar (internal sensor) Over Pressure 3xFS
Resolution	0.01 psi, 1 mbar
Accuracy	0.05% of full scale
Functions	Zero, Min, Max, Hold, Damp, Note: for use with non-corrosive gasses
Loop Power Range	24 V dc
Loop Power Accuracy	+/- 10%
Measure Accuracy Range	0 to 24 mA
Measure Accuracy Resolution	0.001 mA
Measure Accuracy	0.025% + 1 count
Display	LCD, 5 digit pressure and current simultaneous
Operating temperature	-10 to 55°C
Maximum voltage	30V
Size	216 mm L x 94 mm W x 67 mm (8.5 in. L X 3.72 in. W X 2.61in.)
Weight	Approx. 992g (35 oz)
Shock & Vibration	Random, 2G, 5-500 Hz, 1m drop test
Battery Type	Two 9V batteries, ANSI/NEDA 1604A or IEC 6LR61, Battery life: 4 to 20 hours, typical, depending on functions

Click here for complete specifications on the Fluke 718-100US

What's included with the Fluke 718-100US

Fluke 718-100US Pressure Calibrator with Vacuum Pump
Protective Yellow Holster with test lead storage
Instructions Sheet (14 languages)
Test Leads and Alligator Clip
Two 9V alkaline batteries

Brochure Pressure Calibration Selection Guide datasheet for the Fluke 718-100US Pressure Calibrator with Pressure Vacuum Pump, -12 to 100 PSI manual for the Fluke 718-100US Pressure Calibrator with Pressure Vacuum Pump, -12 to 100 PSI
