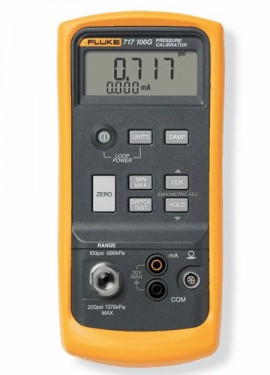

Fluke 717-100G Pressure Calibrator, -12 to 100 PSI

Model: 717-100G | UPC: 095969111072

Downloads: datasheet

Fluke 717-100G Pressure Calibrator, -12 to 100 PSI

Model: 717-100G

Pressure switch test function captures set, reset and Deadband values of a pressure switch. Measure mA with 0.015% accuracy and 0.001 mA resolution, while sourcing 24V loop power.

Your Price	$3256.39 CAD
Availability	2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your Fluke 717-100G Pressure Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG4) for only $415.00 CAD

Traceable Calibration Certificate for your Fluke 717-100G Pressure Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMPG4) for only $415.00 CAD

Recommended Accessories

Fluke i1010 AC/DC Current Clamp

I1010

Fluke H80M Protective Holster with Magnetic Hanging Strap

H80M

Fluke TP74 Lantern Tip Test Probe Set, 1000 V, 10 A

TP74

Fluke AC280 SureGrip Hook Clips

AC280

Fluke 700PTP-1 Pneumatic Test Pump

700PTP-1

Fluke 717-100G Offers

Fluke 717-100G Pressure Calibrator is a compact, lightweight and easy to carry calibrator that delivers outstanding performance, durability and reliability. The Fluke 717 Calibrator is EMI tolerant, dust and splash resistant and features a removable battery door for quick battery changes.

The Fluke 717 simultaneously measures pressure and mA and delivers 24 volt loop supply while measuring mA. This new Pressure Calibrator presents cost-effective solutions for highly accurate pressure measurements over a wide range of temperatures. Connect it with any of the Fluke pressure modules to address a wide variety of gauge, differential, absolute, vacuum and dual (compound) pressure applications.

Pressure source and milliamp measurement capability to calibrate and maintain almost any pressure device with one tool Error % calculation for quicker pass / fail decision making in the field Best in class mA accuracy (0.015% for better measurement confidence and workload coverage.

Features

1/8 NPT female pressure fitting
Compatible with non-corrosive Gases and liquids
Zero, min, max, and hold functions
Calibrate P/I instruments with simultaneous pressure and current measurement
Error% calculation of mA measurements for quick pass-fail decisions
Long lasting battery life
Holster features test lead storage
Compatible with Toolpack magnetic hanging system
New switch test

Applications

Petro-Chemical
Oil and Gas
Pharmaceutical
Water and Wastewater
Food and Beverage
Power Generation

Application Selection Guide


Model number	754	721/721Ex	719Pro	719	718	717	700G	3130	2700G	Dead-weight Testers
Application
Calibrating pressure transmitters (field)	●	●	Ideal	●	●	●		●
Calibrating pressure transmitters (bench)	●	●	●	●	●	●		Ideal		●
Calibrating HART Smart transmitters	Ideal
Documenting pressure transmitter calibrations	Ideal
Testing pressure switches in the field	Ideal	●	●	●	●	●		●
Testing pressure switches on the bench	●	●	●	●	●	●		Ideal
Documenting pressure switch tests	Ideal
Testing pressure switches with live (voltage) contacts	Ideal
Gas custody transfer computer tests	●	Ideal	●
Verifying process pressure gauges (field)	Ideal	●	●	●	●	●	●
Verifying process pressure gauges (bench)	●	●	●	●	●	●		●	●	Ideal
Logging pressure measurements	●						Ideal		●
Testing pressure devices using a reference gauge									Ideal
Hydrostatic vessel testing							Ideal
Leak testing (pressure measurement logging)	●						Ideal

Pressure Calibration Selection Guide

Fluke 717-100G Specifications

Pressure Range	-12 to 100 PSI, (-850 mbar to 7 bar, -83 to 689.48 kPa)
Pressure Resolution	0.01 psi, 0.1 mbar, 0.01 kPa
Over Pressure	2 X full scale
Loop Power Range	24 V dc
Loop Power Accuracy	+/- 10%
Display	Clear 5 digit LCD
Operating Temperature	-10 to 55 °C
Operating Altitude	3,000 M max
Size	201 mm L x 98 mm W x 52 mm (7.93in. L x 3.86in. W X 2.06in.)
Weight	22 oz, approximately 600G with holster
Battery type	Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline

Click here for complete specifications on the Fluke 717-100G

What's included with the Fluke 717-100G

Protective Yellow Holster with Test Lead Storage
Instructions Sheet
Single 9V Battery
Test Leads and Alligator Clips
NIST-Traceable Calibration Report and Data

datasheet for the Fluke 717-100G Pressure Calibrator, -12 to 100 PSI
