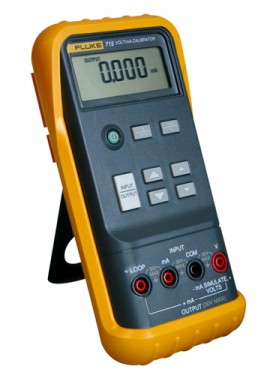

Fluke 715 Volt/mA Calibrator

Model: 715 | UPC: 095969050692

Downloads: datasheet manual

Fluke 715 Volt/mA Calibrator

Model: 715

Measure loop current (0-20 mA, 4-20 mA) signals with very high accuracy of 0.015% and 1 mA resolution. Measure voltage output process signals from PLCs and transmitters.

Your Price	$2603.99 CAD
Availability	1 in Stock
Quantity	Quantity

Traceable Calibration Certificate for your 715 Volt/mA Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICA2) for only $205.00 CAD

Traceable Calibration Certificate for your 715 Volt/mA Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICA2) for only $205.00 CAD

Recommended Accessories

Fluke TL960 Micro-Hook Test Lead Set

TL960

Fluke 80PK-3A Surface Temperature Probe

80PK-3A

Fluke i1010 AC/DC Current Clamp

I1010

Fluke H900 Test Lead Holder

H900

Fluke C25 Large Soft Carrying Case for digital multimeters

C25

Fluke 715 Offers

Features:

Source or simulate 24 mA loop current
Source voltage to 100 mV or 10V
24V loop supply with simultaneous current measurement
Enhanced voltage and current measure and source accuracy
Improved battery life
250 ohm HART resistor with loop power
Holster features test lead storage
Compatible with toolpack magnetic hanging system
Step and linear ramp output function
Configurable zero and span settings

Applications

Instrumentation Calibration
Instrumentation Maintenance
Petro-Chemical
Oil and Gas
Pharmaceutical
Water and Wastewater
Food and Beverage
Power Generation

Fluke 715 Specifications

Measure / Source mV	Range: 0 to 100 mV, Resolution: 0.01 mV, Accuracy: 0.02% + 2 counts
Measure / Source V	Range: 0 to 10 V, Resolution: 0.001 V, Accuracy: 0.02% + 2 counts
Measure / Source/ Simulate mA (% of span)	Range: 0 to 24 mA (-25% to 125%), Resolution: 0.001 mA, Accuracy: 0.015% + 2 counts
Loop Power	Range: 24 V dc, Accuracy: +/- 10%
Display	Clear 5 digit LCD
Operating temperature	-10 to 55°C
Storage temperature	-40 to 60°C
Operating Altitude	3,000m max
Size	187 mm L x 87mm W x 32 mm
Weight	Approx. 330 g
Battery type	Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline

Click here for complete specifications on the Fluke 715

What's included with the Fluke 715

Fluke 715 Volt/mA Calibrator
Protective Yellow Holster with Test Lead Storage
Instructions Sheet (14 languages)
single 9V alkaline battery
Test Leads and Alligator Clips

datasheet for the Fluke 715 Volt/mA Calibrator manual for the Fluke 715 Volt/mA Calibrator
