Fluke 710 mA Loop Valve Tester

Model: 710 | UPC: 095969872959

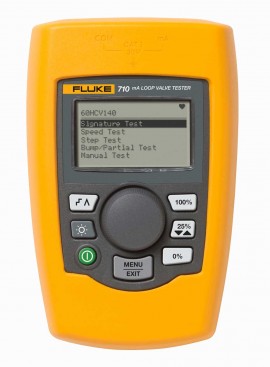

Fluke 710 mA Loop Valve Tester-


Downloads: datasheet manual

Fluke 710 mA Loop Valve Tester

Model: 710

Designed to enable users to perform quick, easy tests on HART smart control valves. Features built-in test procedures and an intuitive user interface that allows users to quickly and easily perform valve tests, while the valve test quick-check results provide at-a-glance diagnostics helps you make maintenance decisions faster than ever.

Designed to enable users to perform quick, easy tests on HART smart control valves. Features built-in test procedures and an intuitive user interface that allows users to quickly and easily perform valve tests, while the valve test quick-check results provide at-a-glance diagnostics helps you make maintenance decisions faster than ever.

Your Price $3521.00 CAD
Availability 2 to 3 Weeks
Quantity

Add In-House ISO Certified Calibration to your 710

Add In-House ISO Certified Calibration to your 710


Fluke 710 Offers

Features

  • Key valve testing functions - valve signature test, speed test, step test, manual test, bump/partial stroke test
  • Key mA loop calibrator functions - mA source, mA simulate, mA read, mA read/loop power, and volts read
  • ValveTrack™ software - enables upload to a PC for further in-depth analysis of valve measurements that are logged and recorded to memory
  • Valve test procedures that deliver Good, Marginal or Bad assessment of a control valve
  • Generic HART communication
  • Best-in-class mA accuracy at 0.01% measurement or source value
  • Compact rugged design
  • Intuitive user interface with Quick-Set knob for fast setup, easy to use
  • 24 V DC loop power with mA measure mode (-25 to 125%)
  • Resolution of 1 μA on mA ranges and 1 mV on voltages ranges
  • Built in selectable 250 Ω resistor for HART communications
  • Simple two wire connection for all measurements
  • Auto shutdown to conserve battery life
  • Variable step and ramp time in seconds
  • Offers a built-in HART modem to communicate the following HART commands:
    • Read sensor PV information
    • Read PV output information
    • Read and write PV unit type, tag ID name, descriptor, and message
    • Read and write PV ranges (upper and lower)
    • Enter/exit fixed current mode
    • Set zero offset
    • Trim DAC zero (mA output 4 mA)
    • Trim DAC gain (mA output 20 mA)

Smart Control Valve Testing is Now Easier Than Ever

The valve testing loop calibrator is designed to enable users to perform quick, easy tests on HART smart control valves. Featuring built-in test procedures and an intuitive user interface, it allows users to quickly and easily perform valve tests, while the valve test quick-check results provide at-a-glance diagnostics help you make maintenance decisions faster than ever. The valve health quick-check results let you know whether your valve is in good, marginal or in bad operating condition so you can quickly decide whether additional maintenance is necessary.

Valve Testing and HART Communication in a Precision Loop Calibrator

With the valve testing loop calibrator's built in HART communication function, users can source a 4-20 mA signal to cause the smart control valve to move, while simultaneously interpreting the valve's HART feedback signal to determine whether the valve is moving to the expected position. In addition to positional information, the measured pressure delivered from the valve's internal I/P (which moves the valve) can be determined through the HART communication protocol. It has built-in test procedures that automatically increase and change the mA signal while monitoring the HART position and pressure feedback from the control valve, giving you a better overall picture of valve health at the simple push of a button.

Pre-Configured Valve Tests, At-A-Glance Answers

Valve test routines built into it include:

  • Manual testing: manually change the mA signal and view the HART position and pressure variable information
  • Full range ramping of the mA signal from 4 to 20 to 4 mA while recording the 0-100-0% position, or the pressures applied that move the valve from 0-100-0%
  • Stepping the mA signal on the input to the valve in steps and evaluating the valves response to the mA input changes
  • Speed tests to determine how fast the valve can open or close
  • Bump and partial stroke tests that help test valves over a portion of their range so they can be tested in a live process

ValveTrack™ Software Enables Further Analysis and Trending

Valve tests that are logged and recorded to memory in the loop valve tester are available to upload to included ValveTrack™ analysis software.

ValveTrack™ software enables you to:

  • Upload, print and plot logged valve tests taken in the field
  • Compare previous uploaded tests to recent tests
  • View valve test history by HART Tag ID
  • Export valve test data to CSV for additional analysis in Microsoft Excel®

Saving Time, Getting Answers

In addition, it offers:

  • Logging of HART data in the field - once recorded by the loop valve tester in the field, the ValveTrack™ software can upload the HART configuration of up to (20) HART devices in your plant and output data in either (.csv) or (.txt) format
  • Data logged mA loop measurements and HART data can be recorded from a particular transmitter for troubleshooting and loop tuning
  • The data log feature offers selectable capture with recording intervals of 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions - each record contains the mA measurement and all four process variables

Applications

  • Oil and gas
  • Food and beverage
  • Waste/wastewater
  • Pharmaceuticals
  • Process automation

Fluke 710 Specifications

Functions mA source, mA simulate, mA read, mA read/loop power, and volts read
Ranges mA (0 to 24 mA) and Volts (0 to 30 V dc)
Resolution 1uA on mA ranges and 1mV on voltage range
Accuracy 0.01% ±2 counts all ranges (@ 73.4°F ±41°F [23°C ±5°C])
Operating Temperature Range 14 to 131°F (-10 to 55°C)
Humidity Range 10 to 95% non-condensing
Stability 20 ppm of F.S./°C from -10 to 18°C and 28 to 55°C
Display 128 x 64 pixels, LCD graphic w/backlight, .34 in high digits
Power 6 x AAA alkaline
Battery Life ≥40 hours continuous use (measure mode using alkaline)
Loop Compliance Voltage 24 V dc @ 20 mA
Voltage Protection 240 V ac
Overload Current Protection 28 mA dc
EMC EN61326 Annex A (portable instruments)
Dimensions 6 x 3.6 x 1.3" (15 x 9 x 3 cm)
Weight 0.3 kg (9.5 oz)
Warranty Three year
Click here for complete specifications on the Fluke 710

What's included with the Fluke 710

  • mA Loop Valve Tester
  • Stackable Test Lead Set
  • Extended Tooth Alligator Clip Set
  • Test Probes
  • SureGrip™ Hook Clips
  • Lemo to USB Upload/Download Cable
  • ValveTrack™ Software
  • 6 x AAA Batteries (Installed)
  • Softcase
  • Product Manual CD-ROM
  • Quick Reference Guide
  • Safety Information
