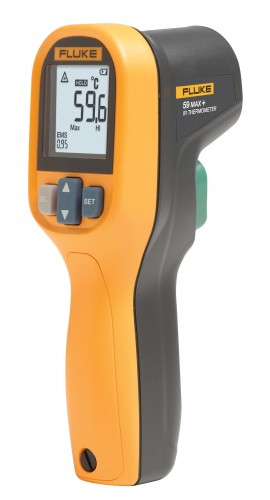

Fluke 59MAX+ Infrared Thermometer, -22 to 662°F

Model: 59MAX+ | Order No: 59MAX+ | UPC: 095969690720

Fluke 59MAX+ Infrared Thermometer, -22 to 662°F-


Downloads: datasheet manual

Fluke 59MAX+ Infrared Thermometer, -22 to 662°F

Model: 59MAX+ | Order No: 59MAX+

Take precise temperature measurements with this small and lightweight infrared thermometer. This unit features a distance to spot ratio of 10:1 and precise single laser targeting. Additionally, it is capable of taking temperature measurements from -22 to 662°F (-30 to 350°C).

Take precise temperature measurements with this small and lightweight infrared thermometer. This unit features a distance to spot ratio of 10:1 and precise single laser targeting. Additionally, it is capable of taking temperature measurements from -22 to 662°F (-30 to 350°C).

Sale Price $133.20 CAD
Regular Price $148.00 CAD
Availability 4 to 5 Weeks
Quantity

Add In-House ISO Certified Calibration to your 59MAX+

Add In-House ISO Certified Calibration to your 59MAX+


Fluke 59MAX+ Offers

Features

  • Easy to handle infrared thermometer with precise single laser targeting and 10:1 distance to spot ratio
  • Measures temperatures from -22 to 662°F (-30 to 350°C)
  • Provides IP40 rating for extra protection
  • Presents a large, backlit LCD display for easy viewing
  • Features a small and lightweight design that fits easily fits into your tool bag
  • Provides selectable MAX, MIN, DIF and AVG functions
  • 3.3' (1 m) drop tested
  • Includes Hi and Lo alarms for rapid display of measurements outside the limits

Applications

  • Take non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, duct, and vents

Fluke 59MAX+ Specifications

Temperature Range -22 to 932°F (-30 to 500°C)
Accuracy (Calibration Geometry with Ambient Temperature 23°C ±2°C) ≥0°C: ±1.5°C or ±1.5% of reading, whichever is greater
≥-10 to <0°C: ±2.0°C
<-10°C: ±3.0°C
≥32°F: ±3.0°F or ±1.5% of reading, whichever is greater
≥14 to <32°F: ±4.0°F
<14°F: ±6.0°F
Response Time (95%) <500 ms (95% of reading)
Spectral Response 0.3 to 0.55" (8 to 14 mm)
Emissivity 0.10 to 1.00
Distance to Spot Ratio 10:1 (calculated at 90% energy)
Display Resolution 0.2°F (0.1°C)
Repeatability (% of Reading) ±0.8% of reading or ±2.0°F (±1.0°C), whichever is greater
Power 1 x AA IEC LR06 Battery
Battery Life 12 hours with laser and backlight on
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C), without battery
Operating Humidity 10 to 90% RH non-condensing at 86°F (30°C)
Operating Altitude 6561.7' (2000 m) above the mean sea level
Storage Altitude 39,370.08' (12,000 m) above mean sea level
Drop Test 3.3' (1 m)
Dimensions 6.14 x 3.15 x 2" (156 x 80 x 50 mm)
Weight 0.5 lb (220 g)
Ingress Protection Rating IP40 per IEC 60529
Vibration and Shock IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
Compliance EN/IEC 61010-1
Laser Safety FDA and EN 60825-1 Class II
Electromagnetic Compatibility 61326-1 EN 61326-2
Click here for complete specifications on the Fluke 59MAX+

What's included with the Fluke 59MAX+

  • Thermometer
  • AA Battery
  • Registration Card
  • User Instructions

Fluke Infrared Thermometers: What is Distance-to-Spot Ratio?


This explanatory video will go over how does distance-to-spot ratio affects the ability of an infrared thermometer to measure the temperature of a surface from a distance. Also, these devices are equipped with laser pointers.
