Allows users to locate, predict, prevent, and troubleshoot power quality problems in three-phase and single-phase power distribution systems. Additionally, it can measure key parameters like speed, torque, and mechanical power without the need for a mechanical sensor, and comes equipped with an FC WiFi SD card.
Allows users to locate, predict, prevent, and troubleshoot power quality problems in three-phase and single-phase power distribution systems. Additionally, it can measure key parameters like speed, torque, and mechanical power without the need for a mechanical sensor, and comes equipped with an FC WiFi SD card.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Quickly and easily discover electrical and mechanical performance of electric motors, and evaluate power quality with a single test tool
Adds key mechanical measurement capabilities for electric motors, and enables the user to quickly and easily measure and analyze key electrical and mechanical performance parameters such as power, harmonics, unbalance, motor speed, torque, and mechanical power without the need of mechanical sensors.
The ideal portable tool for motor analysis testing, it can help locate, prevent, predict and troubleshoot power quality problems in three-phase and single-phase power distribution systems, while giving technicians the mechanical and electrical information they need to evaluate motor performance effectively.
Features
Calculates the amount of rotational force (displayed in lb.ft or Nm) developed by a motor and transmitted to a driven mechanical load. The motor torque is the single most critical variable that characterizes the instantaneous mechanical performance of rotating equipment driven by electric motors.
Provides the instantaneous motor shaft rotational speed. Combined with the motor torque, motor speed provides a snapshot of the mechanical performance of rotating equipment driven by electric motors.
Measures the actual mechanical power (displayed in hp or kW) produced by motors and provides a direct link to overloading conditions without simply basing it on the motor current.
Shows the effectiveness of each motor within a machine, assembly line, plant, and/or facility in converting electric power to useful mechanical work. By properly aggregating the efficiencies of a population of motors the total (aggregate) efficiency can be estimated. Comparisons to expected motor efficiencies at observed operating conditions can help quantify the cost associated with motor energy inefficiency.
Using proprietary algorithms, this power quality and motor analyzer uses three phase current and voltage waveforms to calculate motor torque, speed, load and efficiency at a 1 second update rate. The motor air gap field, as observed via the voltage/current waveforms, provides the basis for the measurements. Mechanical sensors and intrusive no-load motor testing is not required, making it faster than ever to analyze overall electric motor performance.

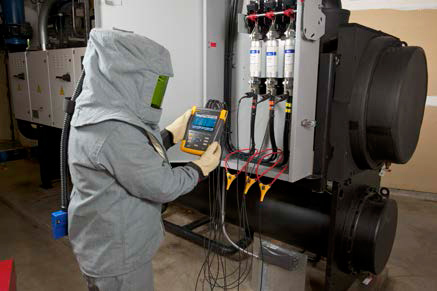

Simply hookup the voltage measurement leads and flexible current probes to the service supplying the motor.

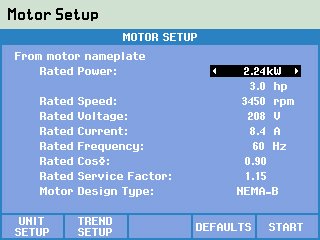

Input details of the motor from the rating plate including rated power, rated speed and motor type from either NEMA or IEC classifications.

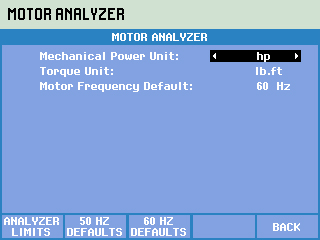

Note: Measurement units can be set to local requirements hp/kW, lb ft/Nm etc.
Provides a complete breakdown
of electrical parameters. Prior to beginning motor
analysis, it's recommended to make base line
power quality measurements to assess the state of
harmonics and unbalance on the electrical service
output as these two properties can have a serious
negative impact, on motor performance.

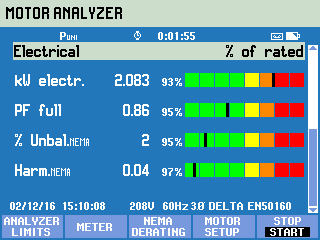

When in Motor Analysis mode, results are summarized
for electrical performance, mechanical
performance and derating (according to NEMA
recommendations).
The easy to understand four-level color severity
scale indicates motor performance in relation to
the recommended electrical parameter levels
including rated power, power factor, unbalance
and harmonics.

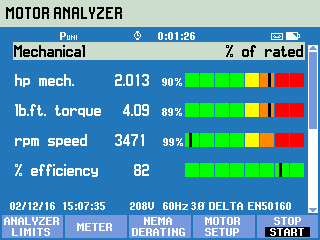

For mechanical power you can instantly view
the mechanical output power along with motor
torque and speed. The mechanical output power
is instantly compared with electrical power to
provide you with live efficiency measurements.
With this feature you can easily measure machine
performance during each operation cycle.

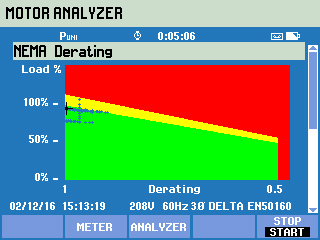

The NEMA derating screen is updated as the load
and the electrical conditions change, and each
new measurement is plotted on the tolerance
graph as a "+". In this example we can see that
motor is within tolerance but is close to the service
factor. This indicates that there may be a
need for power quality mitigation, motor maintenance
or some other performance improving
adjustment. By frequently performing these tests
over time, known benchmarks and performance
trends can be created, enabling informed
maintenance investment decisions.
Infrared cameras, also called thermal imagers, are useful for troubleshooting motor problems as well as for monitoring motor condition for preventative maintenance in power generation, manufacturing and commercial plants. Thermal images of motors reveal their operating condition as indicated by surface temperature. Such condition monitoring is important as a way to avert many unexpected motor malfunctions in systems that are critical to manufacturing. The onset of motor failures can often be detected by a variety of techniques, including vibration, ultrasound and thermal imaging.
In this article, we cover why use thermal imaging and what to scan, as well as some notes on what to look for, including shaft misalignment.
Read the Article
| Mechanical Motor Power | |
| Range | 0.7 to 746 kW 1 to 1000 hp |
| Resolution | 0.1 kW 0.1 hp |
| Accuracy | ±3%1 ±3%1 |
| Default Limit | 100%= Rated power 100%= Rated power |
| Torque | |
| Range | 0 to 10,000 nM 0 to 10,000 lb ft |
| Resolution | 0.1 nM 0.1 lb ft |
| Accuracy | ±5%1 ±5%1 |
| Default Limit | 100%= Rated torque 100%= Rated torque |
| RPM | |
| Range | 0 to 3600 rpm |
| Resolution | 1 rpm |
| Accuracy | ±3%1 |
| Default Limit | 100%= Rated rpm |
| Efficiency | |
| Range | 0 to 100% |
| Resolution | 0.1% |
| Accuracy | ±3%1 |
| Unbalance (NEMA) | |
| Range | 0 to 100% |
| Resolution | 0.1% |
| Accuracy | ±0.15% |
| Default Limit | 5% |
| Harmonics Voltage Factor (NEMA) | |
| Range | 0 to 0.2 |
| Resolution | 0.1 |
| Accuracy | ±0.15% |
| Default Limit | 0.15 |
| Unbalance Derating Factor | |
| Range | 0.7 to 1 |
| Resolution | 0.1 |
| Accuracy | Interactive |
| Harmonics Derating Factor | |
| Range | 0.7 to 1 |
| Resolution | 0.1 |
| Accuracy | Interactive |
| Total NEMA Derating Factor | |
| Range | 0.5 to 1 |
| Resolution | 0.1 |
| Accuracy | Interactive |
Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.
Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
Power anomalies such as transients, harmonics, and unbalance can cause critical damage to electrical motors. Power anomalies such as transients and harmonics can be detrimental on motor operation. Transients can cause serious damage to motor insulation and can also trip overvoltage circuits, causing monetary losses. Harmonics, which create distortion of both voltage and current have a similar negative impact and can cause motors and transformers to run hot, potentially leading to overheating, or even failure. In addition to harmonics, unbalance can occur in both voltage and current, and is often the root cause of elevated motor temperature and long term wear including burnt windings. Using three-phase measurements on the motors input, technicians capture the broad range of data that can help indicate the overall state of power quality health helping them better troubleshoot the root causes of motor inefficiency.
Torque is the amount of rotational force developed by a motor and transmitted to a driven mechanical load, while speed is defined as the rate at which a motor shaft is rotating. A motors torque, measured in pound feet (lb ft) or Newton meters (Nm), is the single most critical variable that characterizes instantaneous mechanical performance. While traditionally mechanical torque has been measured with mechanical sensors, the Fluke 438-II calculates torque using electrical parameters (instantaneous voltage and current) in combination with motor rating plate data. Measuring torque can give a direct insight in to the state of health of the motor, the load and even the process itself. By ensuring the motor is running at the torque level within the stated specification ensures reliable operation over time and minimizes maintenance costs.
Motors are classified by NEMA (National Electrical Manufacturers Association) and IEC (International Electrical Commission) rating data. These ratings include key electrical and mechanical parameters such as rated motor power, full load current, motor speed, and nominal full load efficiency and provide a description of the overall expected motor performance under normal conditions. Using sophisticated algorithms, modern motor analysis tools are able to compare three-phase electrical measurements with the rated values to provide insight into the motors performance under real load conditions. The difference between running a motor within the manufacturer’s specification or outside those parameters is significant. Running motors in mechanical overload conditions causes stress to motor components including bearings, insulation and couplings decreasing efficiency and leading to premature failure.
More than ever, industry is striving to reduce energy consumption and increase motor efficiency through “green” initiatives. In some countries these green initiatives are becoming law. One recent study said motors consume 69 % of all industrial electricity and 46 % of all global electricity consumption. By identifying poorly performing or faulty motors and either repairing or replacing them, you keep energy consumption and efficiency in check. Power quality and motor analysis provides data to identify and confirm excess energy consumption and inefficiencies. Plus, the same analytics can verify the improvements upon repair or replacement. In addition, knowing the condition of motors and being able to intervene before failure also reduces exposure to potential safety and environmental incidents.
Click on a category to view a selection of compatible accessories with the Fluke 438-II Three-Phase Power Quality and Motor Analyzer.
