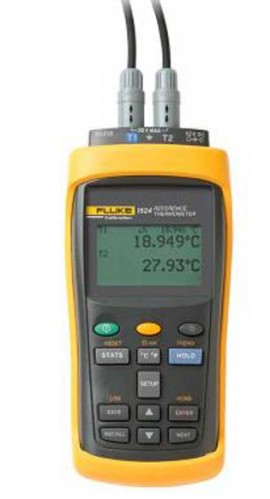

Fluke 1523-P1-156 Handheld Thermometer Readout with 5616 PRT, -200 to 420°C, 100Ω

Model: 1523-P1-156 | UPC: 095969481908

Fluke 1523-P1-156 Handheld Thermometer Readout with 5616 PRT, -200 to 420°C, 100Ω-


Downloads: manual

Fluke 1523-P1-156 Handheld Thermometer Readout with 5616 PRT, -200 to 420°C, 100Ω

Model: 1523-P1-156

Take this handheld thermometer readout anywhere you need to go. It's designed to endure rigorous testing in extreme temperature conditions and under harsh vibration conditions.

Take this handheld thermometer readout anywhere you need to go. It's designed to endure rigorous testing in extreme temperature conditions and under harsh vibration conditions.

This product has been discontinued. Click here for the replacement model(s).


Fluke 1523-P1-156 Offers

This thermometer readout delivers exceptional accuracy, wide measurement range, logging and trending, all in a handheld tool you can take anywhere.

Features

  • Single-channel standard model with memory for 25 readings and statistics
  • 3 sensor types: PRTs -328 to 1,832°F (-200° to 1000°C), thermocouples -328 to 4,199°F (-200° to 2315°C) and precision thermistors -58 to 302°F (-50° to 150°C)
  • Accuracy: PRTs: ±0.011°C; thermocouples: ±0.24°C for J, K, L and M; precision thermistors: ±0.002°C
  • Fast mode: PRTs: 0.45 seconds per sample; thermocouples: 0.3 seconds per sample; precision thermistors: 0.3 seconds per sample
  • Graphical display: 128 x 64 backlit LCD graphic display, plot and scale trends in real time and simultaneous dual-channel readings

Fluke 1523-P1-156 Specifications

Input Channels 1
Logging 25 readings with statistics
Sample Interval (Normal) 1 second
Sample Interval (Fast Mode) 0.3 seconds (see technical manual for details)
Sensor Types PRTs, RTDs, thermistors, thermocouples
Thermocouple Types C, E, J, K, L, M, N, T, U, B, R, S
Operating Temperature 14 to 140°F (-10 to 60°C) (best accuracy 55.4 to 91.4°F (13° to 33°C))
Power Requirements 3 AA alkaline batteries
Size 3.75 x 7.9 x 1.86in (96 x 200 x 47mm)
Environmental Conditions For Best Accuracy 55.4 to 91.4°F (13 to 33°C)
Millivolt Range And Accuracy -10 to 75mV ±(0.005% + 5µV)
Resistance Range And Accuracy 0 to 400Ω ±(0.004% + 0.002Ω); 200 to 50kΩ ±(0.01% + 0.5Ω); 50 to 500kΩ ±(0.03%)
Temperature Coefficient, Voltage (-10° to 13°C, +33° to 60°C) ±(0.001%/° + 1µV/°C)
Temperature Coefficient, Resistance (-10° to 13°C, +33° to 60°C) 0.0008%/°C + 0.0004Ω (0 to 400Ω); 0.002%/°C + 0.1Ω (0 to 50kΩ); 0.06%/°C + 0.1Ω (50 to 500kΩ)
Excitation Current, Resistance 1mA (0 to 400Ω); 10µA (0 to 50kΩ); 2µA (50 to 500kΩ)

What's included with the Fluke 1523-P1-156

  • Fluke 1523-P1-156 Handheld Thermometer Readout with 5616 PRT, -200 to 420°C, 100Ω
  • Customer Reviews for the Fluke 1523-P1-156

    Ask a question about Fluke 1523-P1-156 Handheld Thermometer Readout with 5616 PRT, -200 to 420°C, 100Ω

    Fluke 1523-P1-156 Offers

    This thermometer readout delivers exceptional accuracy, wide measurement range, logging and trending, all in a handheld tool you can take anywhere.

    Features

    • Single-channel standard model with memory for 25 readings and statistics
    • 3 sensor types: PRTs -328 to 1,832°F (-200° to 1000°C), thermocouples -328 to 4,199°F (-200° to 2315°C) and precision thermistors -58 to 302°F (-50° to 150°C)
    • Accuracy: PRTs: ±0.011°C; thermocouples: ±0.24°C for J, K, L and M; precision thermistors: ±0.002°C
    • Fast mode: PRTs: 0.45 seconds per sample; thermocouples: 0.3 seconds per sample; precision thermistors: 0.3 seconds per sample
    • Graphical display: 128 x 64 backlit LCD graphic display, plot and scale trends in real time and simultaneous dual-channel readings

    Fluke 1523-P1-156 Specifications

    Input Channels 1
    Logging 25 readings with statistics
    Sample Interval (Normal) 1 second
    Sample Interval (Fast Mode) 0.3 seconds (see technical manual for details)
    Sensor Types PRTs, RTDs, thermistors, thermocouples
    Thermocouple Types C, E, J, K, L, M, N, T, U, B, R, S
    Operating Temperature 14 to 140°F (-10 to 60°C) (best accuracy 55.4 to 91.4°F (13° to 33°C))
    Power Requirements 3 AA alkaline batteries
    Size 3.75 x 7.9 x 1.86in (96 x 200 x 47mm)
    Environmental Conditions For Best Accuracy 55.4 to 91.4°F (13 to 33°C)
    Millivolt Range And Accuracy -10 to 75mV ±(0.005% + 5µV)
    Resistance Range And Accuracy 0 to 400Ω ±(0.004% + 0.002Ω); 200 to 50kΩ ±(0.01% + 0.5Ω); 50 to 500kΩ ±(0.03%)
    Temperature Coefficient, Voltage (-10° to 13°C, +33° to 60°C) ±(0.001%/° + 1µV/°C)
    Temperature Coefficient, Resistance (-10° to 13°C, +33° to 60°C) 0.0008%/°C + 0.0004Ω (0 to 400Ω); 0.002%/°C + 0.1Ω (0 to 50kΩ); 0.06%/°C + 0.1Ω (50 to 500kΩ)
    Excitation Current, Resistance 1mA (0 to 400Ω); 10µA (0 to 50kΩ); 2µA (50 to 500kΩ)

    What's included with the Fluke 1523-P1-156

  • Fluke 1523-P1-156 Handheld Thermometer Readout with 5616 PRT, -200 to 420°C, 100Ω
  • Ask a question about Fluke 1523-P1-156 Handheld Thermometer Readout with 5616 PRT, -200 to 420°C, 100Ω
